3. Press SHIFT + Button 6 (DELETE) to delete the selected Scene bank.
→
The Scene bank is deleted including all its Scene, if any. The following banks are shifted
up to fill the gap.
You can also create and delete Scene banks in Scene Arrange mode: press ARRANGE then
Button 1 (SCENE) to enter Scene Arrange mode, then follow either of the procedures descri-
bed above.
13.2.6 Naming Scenes
By default, Scenes are named Scene 1, Scene 2, Scene 3, etc. You can rename Scenes and
use custom names of your own. Naming is only available from within the software, but any
changes will also show up on your controller.

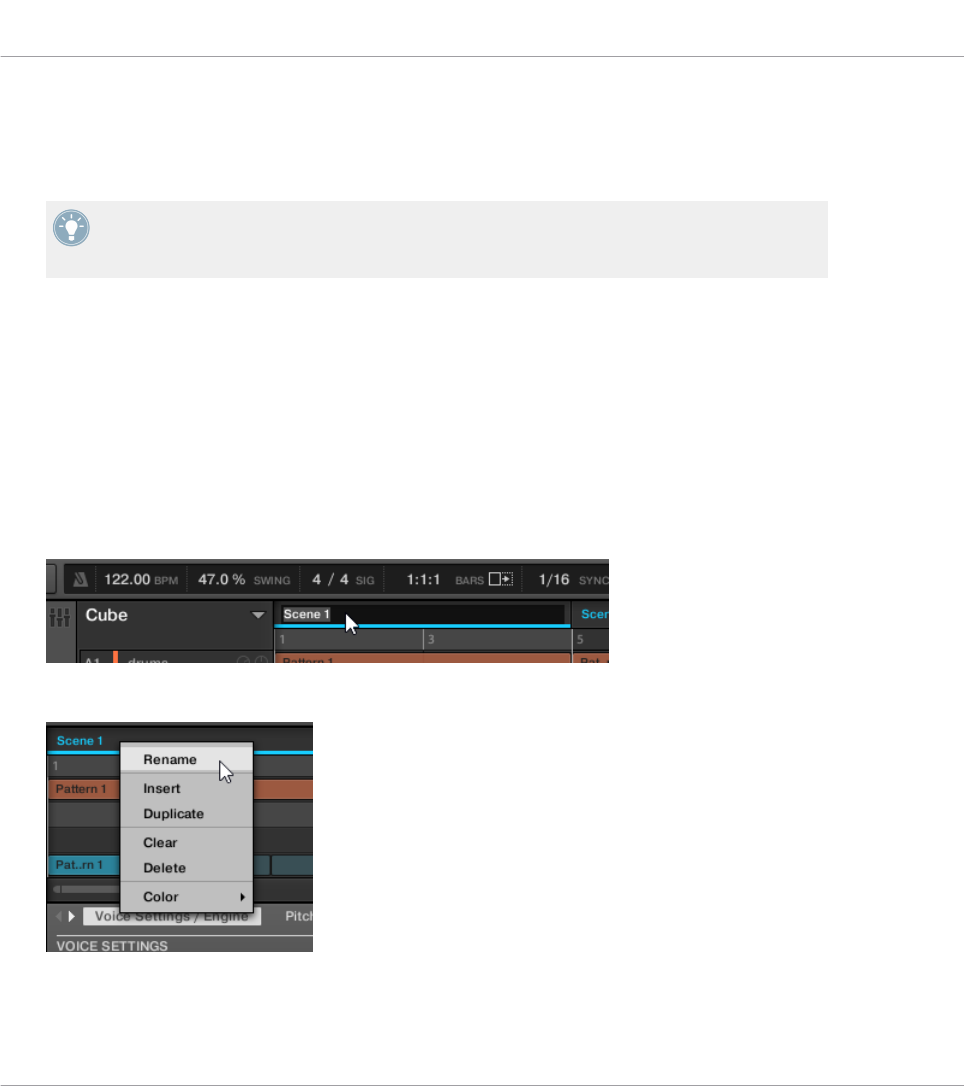

Renaming Scenes in the Arranger
To rename a Scene in the Arranger:
1. Double-click the Scene name at the top of the Arranger:
You can also right-click ([Ctrl]-click on Mac OS X) the Scene slot or the corresponding cell
in the pad grid and select Rename from the context menu:
The Scene name gets highlighted and editable.
Creating a Song Using Scenes
Managing Scenes
MASCHINE STUDIO - Manual - 614
