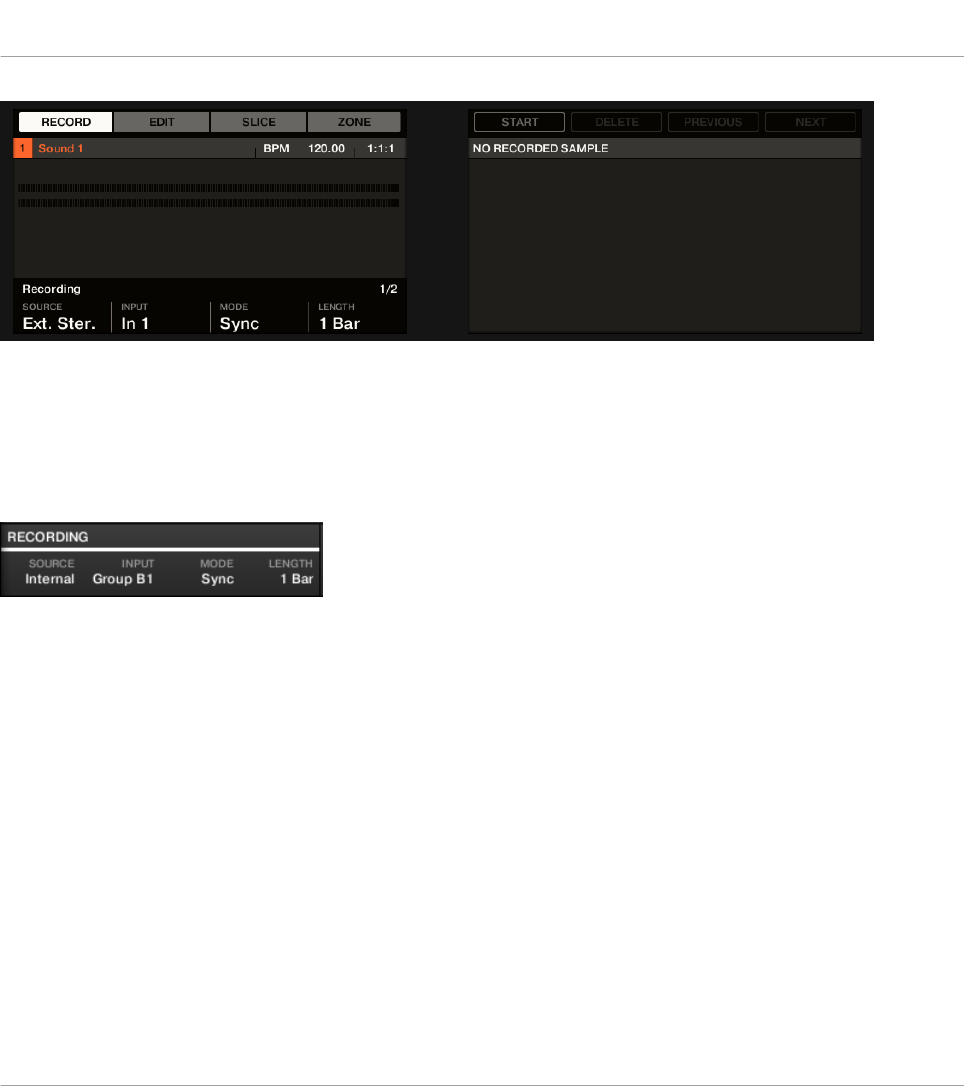

The RECORD page on the controller.
14.2.2 Selecting the Source and the Recording Mode
At the bottom of the Record page, the parameters in the RECORDING section allow you to ad-
just which source should be recorded and how the recording should start and stop.
Adjusting the source and mode of the recording in the software.
Selecting the Source to Record
►
Click the SOURCE selector on the left to select the type of source you want to record:
▪ To record external audio signals connected to your audio interface, select Ext. Ster. (for
stereo signals) or Ext. Mono (for mono signals).
▪ To record audio signals coming from MASCHINE itself, select Internal.
►
Click the INPUT selector to choose between the available inputs:
▪ If SOURCE is set to Ext. Ster., you can select either of MASCHINE’s four external stereo
inputs In 1–4.
▪ If SOURCE is set to Ext. Mono, you can select either of MASCHINE’s eight external mono
inputs: the left (“L”) or right (“R”) channel of each input pair In 1–4.
Sampling and Sample Mapping
Recording a Sample
MASCHINE STUDIO - Manual - 635
