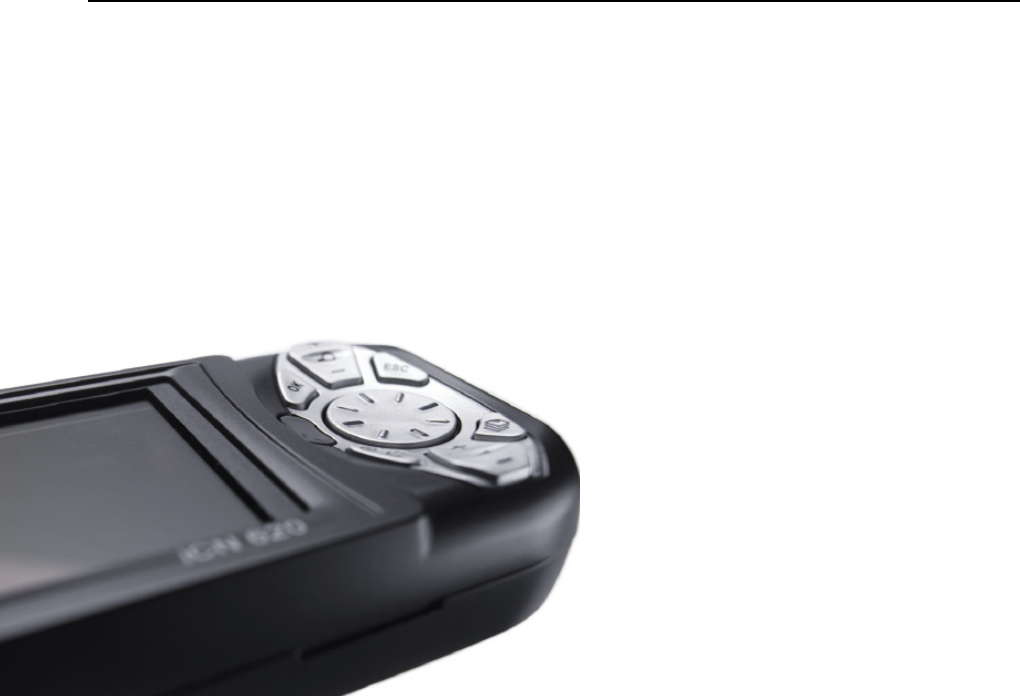

iCN 620 User Manual NAVMAN
NAVMAN iCN 620 user manual 2 WELCOME Congratulations on the purchase of your iCN 620 In-Car Navigation Unit. Whether you travel frequently in your own country, or need to find your way around overseas, this unit will direct you to your destination without the need for map books and second-hand instructions. The Global Positioning System is available free of charge, at any time, and is accurate to within 5 m (16.5 ft).
NAVMAN iCN 620 user manual 3 SAFETY FIRST It is your sole responsibility to adhere to the following safety instructions at all times. ý Do not operate this unit while driving. ý This unit must be placed in a position where it cannot obstruct the drivers view of the road. ý This unit must not interfere with the normal operation of any airbags or other vehicle safety equipment.
NAVMAN iCN 620 user manual 4 CONTENTS 1 2 3 WHAT IS GPS? ................................................................................................................................................... 8 UNPACKING THE iCN 620................................................................................................................................. 9 ý Memory Cards ....................................................................................................................................
NAVMAN iCN 620 user manual 5 5 6 7 CONTROLS AND KEYBOARD......................................................................................................................... 39 ý Using the Control Buttons ......................................................................................................................... 39 ý Using the Menus .......................................................................................................................................
NAVMAN iCN 620 user manual 6 9 10 11 12 13 ý Next Instruction ......................................................................................................................................... 68 ý Next Four Instructions ............................................................................................................................... 69 ý Back-on-Track Feature ....................................................................................................................
NAVMAN iCN 620 user manual 7 14 ACCESSORIES ................................................................................................................................................ 95 ý External or Re-radiating Antennae ............................................................................................................. 95 ý Memory Cards ..........................................................................................................................................
NAVMAN iCN 620 user manual 8 1 WHAT IS GPS? The Global Positioning System (GPS) is a network of satellites launched by the US military in the 1970s. The satellites continuously transmit accurate time and position information, which is freely used by commercial and military applications worldwide. GPS receivers such as the iCN 620 are designed to pick up the high frequency radio signals from these satellites, and use the information to determine your exact location.
NAVMAN iCN 620 user manual 9 2 UNPACKING THE iCN 620 Heres what you should find in the box. If there is anything missing, contact your retailer for assistance.
NAVMAN iCN 620 user manual 10 Key: 1- iCN 620 unit with integral GPS receiver. 2- CD-ROMs includes: 3- § smartMAP In-Car Digital Navigation Software § Maps (refer to Section 15 for the maps included in your country) § User Manual and Quick Start Guide in Adobe Acrobat PDF format § Adobe Acrobat Reader. Vehicle windshield and dashboard mounting bracket: (a) Ball foot (b) Locking nut (c) Mounting clip (d) Sucker pad 4- 12/24 V Vehicle power cable.
NAVMAN iCN 620 user manual ý 11 Memory Cards The iCN 620 unit itself has 64 Mbytes of internal memory available for storing maps. If this is not sufficient for your needs, extra memory in the form of MMC (Multi Media Card) or SD (Secure Digital) memory cards are also available to store additional maps. A memory card can be plugged into the slot in the top of the iCN 620 unit, and can be purchased in various sizes. The largest card that can be used by the iCN 620 is 256 Mbytes.
NAVMAN iCN 620 user manual 12 3 INSTALLING SOFTWARE AND NEW MAPS You will have received a CD-ROM with your iCN 620 unit. The CD-ROM contains software that allows you to: Install and upgrade the smartMAP software onto your iCN 620 unit. Install new maps to your iCN 620 or memory cards. Backup any Settings, Shortcuts and Favourites you have saved previously in your iCN 620 unit. Before you can use any of these features, you firstly need to set up the iCN Desktop software on your PC.
NAVMAN iCN 620 user manual 13 Once installed, 3 you can start the application in future by creating a Shortcut 4 on your desktop, or clicking Start Programs Navman iCN Desktop from the Windows taskbar. Follow the on-screen prompts to complete your License Agreement and load the iCN Desktop application onto your computer. Once the wizard has finished the installation, iCN Desktop will automatically start. You are now ready to personalize your iCN 620 unit.
NAVMAN iCN 620 user manual ý 14 Step 1: Connecting the iCN 620 to Your Computer This will enable your computer to communicate with the iCN 620 unit. 1 Ensure that the iCN Desktop is running on your computer. 2 Plug the mains power adaptor (supplied) into a power socket. Plug the other end into the socket on the left-hand side of the iCN 620 unit.
NAVMAN iCN 620 user manual 15 6 You are now ready to start using the functions available on the iCN Desktop application. 7 If your operating system notifies you during this installation that the application is not digitally signed, this does not imply that the installation process or application will harm your computer. Navman are in the process of obtaining this qualification. Please select the option to continue with the installation if you are presented with this message.
NAVMAN iCN 620 user manual 16 Click continue Anyway Click Finish
NAVMAN iCN 620 user manual 17 b Windows 2000 users Under Windows 2000, you may see the screen below. Select Browse and locate the USB Drivers folder on the iCN installer CD and select OK. to complete the installation. If you do not see this screen, then the installation has completed automatically. Enter le location of the iCN USB driver disk D:\USBDRIVER Click OK. You may now continue to the next section.
NAVMAN iCN 620 user manual 18 c Windows Me and 98SE Users Under Windows Me and 98SE, you may see the screen below. Select Browse and locate the USB Drivers folder on the iCN installer CD and select OK If you do not see this screen, then the installation has completed automatically. You may now continue to the next section. Enter the location of the iCN USB driver disk D:\USBDRIVER.
NAVMAN iCN 620 user manual 19 Click OK.
NAVMAN iCN 620 user manual ý 20 Step 2: Installing iCN Application This function allows you to install smartMAP software into a brand new iCN 620 unit, or to upgrade existing software to a newer version. Before beginning, make sure the unit is connected to the computer via the USB port refer to the Hint: You will lose previous section Connecting the iCN 620 to Your Computer for more information.
NAVMAN iCN 620 user manual 21 WARNING: you will 6 need the Product Key found on the back of your CD-ROM every 7 time you upgrade your software. Keep this in a safe place. ý You will need to enter registration information. Some is optional - be sure to complete all of the Required fields. You will be prompted to enter a Product Key which can be found on the CD-ROM case (supplied). Once you have completed the software activation, you are now ready to install maps.
NAVMAN iCN 620 user manual 22 Maps installed in the iCN 620 unit. Maps that are available on the CD are coloured and numbered. Each number represents a separate map for a country or region. Maps installed on the memory card plugged into your iCN 620. Maps installed on the card in the memory card writer on your computer. This is also referred to as Removable Media. This window contains the name and details of the map that you currently have selected.
NAVMAN iCN 620 user manual 23 Maps installed in the iCN 620 unit. Maps that are available on the CD are coloured and numbered. Each number represents a separate map for a country or region. Maps installed on the memory card plugged into your iCN 620. Maps installed on the card in the memory card writer on your computer. This is also referred to as Removable Media. This window contains the name and details of the map that you currently have selected. You may be supplied with several map CDs.
NAVMAN iCN 620 user manual Drag and drop is a 1 Windows term that describes using the 2 mouse to move items from one place to another. To drag and drop a map, point to the map you require, then press and hold down the left-hand mouse button and drag the map over to one of the right 3 hand windows. Refer to Windows Help for more information. 24 Click Install Maps from the Main Menu.
NAVMAN iCN 620 user manual 25 Installing Maps on SD or MMC Memory Cards Note: When using maps from an SD or MMC card, do not remove the card while navigating or the unit will reset. If you require additional maps, you can download these to a SD (Secure Digital) or MMC (MultiMediaCard) memory card. Installing maps onto a memory card can be done in one of two ways: 1 Remove the SD card blank already present in the iCN. 2 Plug the memory card into the slot in the top of your iCN 620 unit.
NAVMAN iCN 620 user manual ý 26 Step 4: Reading User Manuals and Quick Start Guides You can read the User Manual and Quick Start Guide on your computer screen by selecting these options from the Main Menu. The User Manual and Quick Start Guide are available as Acrobat PDF files. If you do not already have Acrobat PDF reader software on your computer, it will be installed automatically from the iCN Desktop CDROM when you select the User Manual or Quick Start Guide from the Main Menu.
NAVMAN iCN 620 user manual 27 1 Click Backup Device Settings from the Main Menu. 2 To back up the Settings, Shortcuts and Favourites currently stored on your iCN 620 unit: 3 Click New Backup. In the New Backup screen, your backup will be stored as at the current date and time. Rename the backup here if you wish by typing over the default name. Click OK to continue the backup. Your backup will be stored in your computer under C:\Program Files\Navman\iCN Desktop\Backup.
NAVMAN iCN 620 user manual 28 4 To delete any of your previously saved backups from your computer: Click on the backup that you wish to delete from the list provided. Click Delete. Visit Navman Website Click on this option to visit the Navman website for updates, support and general information. Note: you will need an internet connection to use this option.
NAVMAN iCN 620 user manual 29 4 INSTALLING THE iCN 620 IN YOUR VEHICLE Before installing the iCN 620 In-Car navigation unit, check whether your vehicle is fitted with an athermic (heat reflecting) or a heated windshield. If so, you will need to purchase an external or re-radiating antenna to allow your iCN 620 unit to pick up the GPS signals. For more information, refer to Section 14 Accessories.
NAVMAN iCN 620 user manual ý 30 Suction Mount to Windshield 1 To remove the 2 suction cup, pull the lever up. Release the 3 suction using release tab. 4 Should you experience problems with your suction cup not holding on, clean an area of your windshield with a cloth dabbed in isopropyl alcohol [tape head cleaner] let it dry, then re-apply the suction cup. 5 Choose a position on the windshield where the iCN 620 will be clearly visible by the driver.
NAVMAN iCN 620 user manual 31 6 Snap the socket clip onto the ball foot. Make sure the short side of the socket clip is on top. Push the socket clip onto the ball until it clicks. 7 Adjust the position of the socket clip, so that the unit will be clearly visible by the driver. 8 Wind the locking nut onto the thread of the socket clip until firm. Wind locking nut onto thread 9 Snap the iCN 620 unit onto the socket clip.
NAVMAN iCN 620 user manual 32 To unclip the iCN 620 10 unit from the mounting bracket, press down on the back of the upper plastic clip to release the top of the unit, then lift the unit out of the bottom two slots. In vehicles where auxiliary power is permanently on, the unit can be switched on and programmed as soon as the power adaptor is connected. Switching the engine on will not reset the unit. Flip the aerial outwards so that the aerial is pointing horizontally.
NAVMAN iCN 620 user manual ý 33 Suction or Adhesive Mount to Dash To remove the 1 suction cup, pull the lever up. Release the suction using release tab. 2 Choose a position on the dash where the iCN 620 will be clearly visible by the driver. Follow the safety guidelines at the front of this manual to ensure that the unit does not obstruct the view of the driver, or interfere with the operation of any airbags and safety devices in the vehicle.
NAVMAN iCN 620 user manual 34 7 Snap the socket clip onto the ball foot. Make sure the short side of the socket clip is on top Push the socket clip onto the ball until it clicks 8 Adjust the position of the socket clip, so that the unit will be clearly visible by the driver. 9 Wind the locking nut onto the thread of the socket clip until firm.
NAVMAN iCN 620 user manual 35 11 Flip the aerial outwards so that the aerial is pointing horizontally. Aerial points up and out In vehicles where auxiliary power is permanently on, the unit can be switched on and programmed as soon as the power 12 adaptor is connected. Switching the 13 engine on will not reset the unit. 14 Plug the power cable into the socket on the left hand side of the unit. Plug the other end of the power adaptor into the vehicles cigarette lighter socket.
NAVMAN iCN 620 user manual 36 5 CONTROLS AND KEYBOARD ý Using the Control Buttons The control buttons on the right-hand side of the iCN 620 unit allow you to navigate through the different screens and enter information. Many of the control buttons have more than one use these are described in the diagram below. Most of the time, you will use 4 main buttons OK, ESC, PAGE and the 8-way Toggle Button.
NAVMAN iCN 620 user manual 37 Zoom/Brightness Button: This button is used for two different reasons: 1 - Change the amount of map that is shown. Press + to see close-up and more detail, or to see more map area. OK Button: OK 2. Hold down for 1-2 seconds to adjust the brightness of the screen. ESC Button: ESC Use this button to select the highlighted menu option, text or command. This button will cancel what you are doing, delete the last text character you typed, or return to the previous screen.
NAVMAN iCN 620 user manual ý 38 Using the Menus Many of the screens that you will use contain a menu of options. Menu option Select ESC or press ESC to return to the previous screen. To move around menus: 1 Scroll through the menu options using the 8-way toggle button . 2 To select a menu option, make sure the option you require is highlighted, then press the OK button. 3 To exit from a menu screen, scroll down to the on-screen ESC key using the 8-way toggle button , then press the OK button.
NAVMAN iCN 620 user manual ý 39 Moving Around the Settings Screens The screen below shows an example of one of the screens found in the Settings function. Either/Or settings: The Route Type can be either the Quickest Time or the Shortest Distance - either/or options are indicated by dots. In this example, the Route Type is set to Quickest Time, both Route Options are disabled, and Automatic Rerouting enabled.
NAVMAN iCN 620 user manual ý 40 Entering Text with the On-screen Keyboard When entering information about your destination, you will use the controls and an on-screen keyboard. You can enter a street name or area by typing in the full name, or typing: the beginning of the name then selecting from the list on the lower half of the screen. Use the up/down toggle button to scroll between the keyboard, the text entry line and the window containing a list of streets or areas.
NAVMAN iCN 620 user manual ý 41 Changing the Brightness and Volume You are able to modify both the brightness of the display and the volume of the voice guidance instructions to suit the driving conditions. To alter the brightness of the display: Note: The unit will heat up more quickly when the display brightness is set over 70%. The brightness bar will be coloured red when over 70%. It is advisable that you use a screen brightness below this where possible.
NAVMAN iCN 620 user manual 42 To alter the volume of the voice guidance instructions: When the Volume button is pressed briefly, you will hear the very next instruction. Press for longer to alter the volume. 1 2 Hold down the Vol button until you see the volume bar displayed on the screen. This can be done at any time. Press to increase the volume, or to decrease the volume.
NAVMAN iCN 620 user manual 43 6 GETTING STARTED The iCN 620 is designed to be simple to use, and will direct you to your destination without distracting the driver. To ensure your safety, set up your iCN 620 and enter information about your destination BEFORE you start your journey. Do not operate the unit while driving. The iCN 620 will then announce upcoming turns and display your directions in a manner that best suits you.
NAVMAN iCN 620 user manual ý To turn off the iCN 620, hold the MENU/Power button down for 1 second. 44 Main Menu The Main Menu provides you with access to all of the setup and viewing modes of the iCN 620. Navigate through the Main Menu using the 8-way toggle button , and make your selection by pressing OK. You can return to the Main Menu at any time by pressing MENU/Power . The ESC button will exit you from It may take a few what you are doing, and return you to the previous screen.
NAVMAN iCN 620 user manual ý 45 Getting a GPS Fix The iCN 620 unit receives GPS signals through the aerial on the back of your unit. In order for the aerial to receive signals, ensure that: 1 The unit is outside or in a vehicle parked outside sunlight alone is not sufficient (e.g. through the window of a building). 2 The aerial is pointing horizontally out through your windshield, and has a clear view of the sky.
NAVMAN iCN 620 user manual 46 7 SETTING YOUR DESTINATION Before you travel, you must first select a destination and allow the iCN 620 to plan your route. There are three main ways that you can program your destination: Use SHORTCUTS that you have previously programmed for destinations used on a regular basis.
NAVMAN iCN 620 user manual ý 47 Using a Shortcut You are able to save your 8 most frequently used destinations as Shortcuts. This is the quickest and easiest way to set your route. For information on setting new Shortcuts, refer to Section 9 Programming Shortcuts. 1 From the Main Menu, select SHORTCUTS. 2 Select your previously programmed destination from the Shortcut list. Refer to Section 9 Programming Shortcuts for more information.
NAVMAN iCN 620 user manual ý 48 Setting a New Destination Heading to an address Note: the iCN 620 will automatically display all countries contained in the maps currently loaded in its own memory or on an attached memory card. If there is only one country map loaded, this will be the only option provided. Hint: Steps 2 and 3 are optional, but can be useful if your map area is large or the street is not uniquely named.
NAVMAN iCN 620 user manual 49 3 Refer to Section 6 Controls and Keyboard for more information on using the on-screen keyboard. Select REGION. This could be any region such as a city, state or county. To enter a region, choose one of the following: In the text entry screen, type in a region. Once you have finished, position the cursor on the text entry line, and press OK to confirm your selection.
NAVMAN iCN 620 user manual 50 6 Once the unit has enough information, the details are displayed. 7 Choose one of the following: Note: if you power down before selecting GO or SAVE, your address information will be lost. Select GO. The unit will calculate the route and display the address on the navigation screens. Select SHOW. The unit will not calculate the route, but will simply display the address using the Map Browser mode.
NAVMAN iCN 620 user manual 51 Heading to an intersection Use the Destination option from the Main Menu to enter the intersection of two streets as your destination. Hint: Steps 2 and 3 are optional, but can be useful if your map area is large or the street is not uniquely named. 1 From the Main Menu, select DESTINATION, then INTERSECTION. 2 Select COUNTRY in the Destination : Intersection screen. Use the left/right toggle button to cycle around the options provided.
NAVMAN iCN 620 user manual Refer to Section 6 Controls and Keyboard for more information on using the on-screen keyboard. 52 3 Select REGION. This could be any geographical region such as a city, state or county. To enter a region, choose one of the following: In the text entry screen, type in a region. Once you have finished, position the cursor on the text entry line, and press OK to confirm your selection.
NAVMAN iCN 620 user manual Note: if you power down before selecting GO or SAVE, your address information will be lost. 53 8 Choose one of the following: Select GO. The unit will calculate the route and display the intersection on the navigation screen. Select SHOW. The unit will not calculate the route, but will simply display the address using the Map Browser mode. From here you can select this address as your destination or move around the map to find a different destination.
NAVMAN iCN 620 user manual 54 Heading to a point of interest The map information that you are using also has a wide number of Points of Interest stored for your convenience. A Point of Interest is any named site, feature, landmark or public venue. There can be thousands of Points of Interest in larger cities, so they are sorted into categories. Points of Interest categories may be hotels, churches, schools or parks to name just a few.
NAVMAN iCN 620 user manual 55 5 Screens such as Select POI may have more than one page to view. In this example, the screen displays the first 4 POIs of a total 9 (1-4 of 9). 6 Press or select 7 Page Fwd to view 8 the next 5 POIs on the list. Select AREA. To enter an area, choose one of the following: In the text entry screen, type in an area of interest. Once you have finished, position the cursor on the text entry line, and press OK to confirm your selection.
NAVMAN iCN 620 user manual 56 9 Choose one of the following: Select GO. The unit will calculate the route and display the POI on the navigation screen. Select SHOW. The unit will not calculate the route, but will simply display the address using the Map Browser mode. From here you can select this address as your destination or move around the map to find a different destination. Refer to Section 7 Setting Your Destination Straight From the Map for more information. Select SAVE.
NAVMAN iCN 620 user manual ý 57 Using a Saved Favourite The iCN 620 unit allows you to store up to 100 Favourite destinations, to save you from re-entering the location again. Use Shortcuts for your 8 most regular locations, and store other commonly used locations as Favourites. Add a new Favourite through the DESTINATION – FAVOURITES menu. Refer to Section 10 Programming Favourites for more information. 1 From the Main Menu, select DESTINATION, then FAVOURITES.
NAVMAN iCN 620 user manual ý 58 4 Choose one of the following: Select GO. The unit will calculate the route and display the destination on the navigation screen. Changes you have made while in the Edit Favourite screen will automatically be saved. Select SHOW. The unit will not calculate the route, but will simply display the address using the Map Browser mode. From here you can select this address as your destination or move around the map to find a different destination.
NAVMAN iCN 620 user manual 59 2 Select your destination from the list of recent addresses. Press 3 The details of your chosen destination are displayed. 4 Choose one of the following: or select Page Fwd to see more of the list. Select GO. The unit will calculate the route and display the destination on the navigation screen. Select SHOW. The unit will not calculate the route, but will simply display the address using the Map Browser mode.
NAVMAN iCN 620 user manual ý 60 Straight from the Map You may find it easier to program your destination directly from the map. Generally you will use this option if you know the area in which your destination is, or if you have selected SHOW from a previous entry screen. The iCN 620 will allow you to scroll around a map and pick a point on the map. The unit will automatically load the address details for you, and away you go.
NAVMAN iCN 620 user manual 61 Press ESC at any 5 time to remove the gridlines, and again to return to 6 the automatic Map Browser screen. Note: the START option will only be available if the unit does not 7 have a current GPS fix. Use the 8-way toggle button to position the intersection of the gridlines over the destination that you require. When the gridlines are over a street, the street name is shown along the bottom of the screen. Press OK to select a point as your destination.
NAVMAN iCN 620 user manual 62 8 VIEWING YOUR ROUTE There are four different ways that you can view instructions along your way. Cycle through the four navigation screens All of map views are . accompanied by audible by simply pressing announcements of your next The MAP BROWSER screen displays your route on a map which is always oriented North. turn. The NAVIGATION MAP screen displays your route on map which is always oriented in the direction in which you are travelling.
NAVMAN iCN 620 user manual 63 3 You can cancel your current route at any time. Return to the Main Menu by pressing MENU/Power CANCEL ROUTE. and select Compass Your planned route is highlighted Your current position is marked with an arrow Your next turn is highlighted in green Map scale Distance to next turn GPS strength indicator The street you are travelling on Note: You can use the Map Browser screen to set your destination.
NAVMAN iCN 620 user manual Note: if you power the unit off or switch off your engine while viewing your route, the unit will automatically return to this view when you restart. 64 4 You can cancel your current route at any time. Return to the Main Menu by pressing MENU/Power and select CANCEL ROUTE.
NAVMAN iCN 620 user manual ý Note: the unit must have planned a route before you can use this view. Refer to Section 7 Setting Your Destination to calculate a route. 65 Next Instruction This view clearly shows the information that you need for the next turn the direction of the turn and the distance to the turn. 1 From the Main Menu, select MAP. 2 Press 3 You can cancel your current route at any time. Return to the Main Menu by pressing MENU/Power CANCEL ROUTE.
NAVMAN iCN 620 user manual ý 66 Next 4 Instructions The most simple of views, the next four turns are described by the direction of the turn, the next street name and the distance to the turn. The very next turn is highlighted, and is always at the top of the list. Your current street name is displayed along the bottom of the screen. As with the Next Instruction screen, the iCN 620 must have planned a route before you can use this screen. Refer to Programming a Destination to calculate a route.
NAVMAN iCN 620 user manual ý 67 Back-on-Track™ Feature The iCN 620 is designed to re-plan your route automatically if you take a wrong turn. This function can be disabled in the A ? symbol will appear in the top left-hand corner of the map screens when the unit is busy recalculating the route. SETTINGS menu. ý The automatic restart facility is useful if, for example, you stop the vehicle to refuel. Automatic Restart Feature 1 If you power down while travelling to a destination (i.e.
NAVMAN iCN 620 user manual 68 9 PROGRAMMING SHORTCUTS Eight of your most frequently used destinations can be stored in the unit to save you time. Once saved, your Shortcuts can be accessed quickly through the Shortcuts menu with the minimum of key presses, and without having to re-enter any information. ý Adding a New Shortcut You can also add a new Shortcut through the DESTINATION FAVOURITES menu. 1 From the Main Menu, select SHORTCUTS. 2 Choose one of the following: Select NEW.
NAVMAN iCN 620 user manual 69 3 To save an Address, Intersection or Point of Interest, choose the SAVE option once you have entered the destination details. Select one of the options from the New Shortcut list: ADDRESS follow the instructions in Section 7 Setting Your Destination Heading to an Address. INTERSECTION follow the instructions in Section 7 Setting Your Destination - Heading to an Intersection.
NAVMAN iCN 620 user manual Example: you may want to save your 5 own address as a Shortcut, and name it HOME. Note: if you power off the unit before 6 selecting SAVE, the details you have just entered will be lost. 70 To name your Shortcut: Scroll to the NAME box and press OK; In the text entry screen, scroll to the text entry line and hold down the ESC button to delete the line of text already printed; Type in the name you require; Select ENTER to save the name.
NAVMAN iCN 620 user manual 71 7 If you attempt to save your new Shortcut over the top of an existing Shortcut, a warning screen is displayed. Choose one of the following: Select YES to continue and your new Shortcut will replace the existing one. Alternatively, select NO to return to the New Shortcut screen and change the place wish to save your new Shortcut. 8 ý Hint: you may want to backup your Shortcuts before deleting them, in case you wish to use them at a later time.
NAVMAN iCN 620 user manual 72 10 PROGRAMMING FAVOURITES Apart from the eight Shortcuts that you can store, you can also save up to 100 Favourites, which can be accessed through the Destination : Favourites menu. ý To save an Address, Intersection or Point of Interest, choose the SAVE option once you have entered the destination details. Adding a New Favourite 1 From the Main Menu, select DESTINATION, then FAVOURITES. 2 Select NEW.
NAVMAN iCN 620 user manual 73 CURRENT LOCATION iCN 620 will automatically store the location of your current position as a new Favourite (you must have a GPS fix to use this option). Select this to give your Favourite a Nickname Use the left/right toggle button to save as a Shortcut or Favourite 4 Example: you may 5 want to save your own address as a Favourite, and name it HOME. You can customize the look of each of your Favourites by giving the destination a nickname (e.g. HOME).
NAVMAN iCN 620 user manual 74 6 7 Type in the name you require. Select ENTER to save the name. Scroll down to the SAVE AS options. Cycle through the available options by pressing the left/right toggle button. Choose one of the following: Save your destination as a Shortcut or a normal Favourite. Select SAVE. You are returned to the Favourite screen, which now shows your new destination in the list. Continue adding more Favourites, or select a destination from the list.
NAVMAN iCN 620 user manual ý 75 Editing or Deleting a Saved Favourite You may wish to delete a Favourite, change the name of the Favourite that you have saved, or perhaps make it one of Hint: you may want your Shortcuts. to backup your Favourites before deleting them, in case you wish to use them at a later time. 1 From the Main Menu, select DESTINATION, then FAVOURITES. 2 Select the Favourite destination that you wish to edit or delete.
NAVMAN iCN 620 user manual 76 4 5 Type in the name you require. Select ENTER to save the name. To change the type of Favourite: Scroll down to the SAVE AS options. Cycle through the available options by pressing the left/right toggle button. Choose one of the following: Select GO. The unit will calculate the route and display the destination on the navigation screens. Select SHOW.
NAVMAN iCN 620 user manual 77 11 USING THE GPS STATUS INFORMATION The GPS status screens tell you how well you can receive the GPS satellite information. There are three different screen displays available to you. To view the screens: Hint: If you are having 1 trouble getting a GPS fix, you can use these 2 screens to check out the problem. From the Main Menu, select GPS STATUS. Press or select Page Fwd to display the next screen.
NAVMAN iCN 620 user manual ý 78 GPS Reception The ICN 620 relies on the reception of signals transmitted by the Global Positioning System satellites orbiting the earth. This display shows a visual representation of how many satellites the iCN 620 unit is receiving information from. Latitude and longitude of current position.
NAVMAN iCN 620 user manual ý 79 Satellite Signal Strengths Satellite signal strengths are displayed in the form of a bar graph. Colours are used to indicate the status of each satellite. Latitude and longitude of current position Each bar represents a satellite Select ESC to return to the previous screen Current heading in degrees and ground speed A green circle means the unit has a valid fix Select Page Fwd or press to view the next GPS status screen of settings.
NAVMAN iCN 620 user manual ý 80 Satellite Positions This screen shows you the position of each satellite in relation to the earth. You can check on the status and performance of an individual satellite by selecting that satellite using the left/right toggle button. The performance of the selected satellite is displayed as shown below. Each circle represents a satellite Performance of selected satellite.
NAVMAN iCN 620 user manual 81 12 MODIFYING THE SETTINGS Your unit is already The unit has a number of Settings that you can alter. You can: preprogrammed with Change the colours and brightness of the DISPLAY to suit the driving conditions or your own preferences. default settings it is not necessary to Use the ROUTE & GUIDANCE screen to instruct the unit to find the shortest distance or fastest time, to change the settings avoid certain road conditions or to change voice settings.
NAVMAN iCN 620 user manual ý 82 Display Settings If you find that the display is difficult to see in certain light conditions, use this function to change the brightness and colour scheme. ý 1 From the Main Menu, select SETTINGS, then DISPLAY. 2 Modify the Settings as required: Select either DAY or NIGHT from the Map Colours menu to improve the contrast in light and dark conditions. Select your preferred Map Colour by cycling through the options using the left/right toggle button.
NAVMAN iCN 620 user manual 83 1 Toggle between the Route settings screen and the Guidance settings 2 screen by selecting Page Fwd or by . pressing 3 From the Main Menu, select SETTINGS, then ROUTE & GUIDANCE. Use the Route setting screen to: Select either Quickest Time or Shortest Distance from the Route Type menu. Enable or disable Avoid Toll Roads and Avoid Urban Areas from the Route Options menu if required - you can select both or neither if you wish.
NAVMAN iCN 620 user manual ý 84 Points of Interest Settings There are usually a very large number of Points of Interest in any one geographical region. This function allows you to select only those categories that you might need. For example you may be interested only in accommodation and entertainment venues, and may want to disable such categories as schools and churches. 1 Press or select 2 Page Fwd in the bottom right-hand corner 3 to view more categories.
NAVMAN iCN 620 user manual ý 85 GPS Settings This function allows you to modify the format of some of the information displayed in the GPS status screens. 1 From the Main Menu, select SETTINGS, then GPS. 2 Select the format to display GPS position from the Position Format menu. 3 Set the local time by using the table below to help program the Local Time Offset. Local time is derived by an offset from the UTC (the Universal Time Clock).
NAVMAN iCN 620 user manual ADT - Atlantic Daylight AST - Atlantic Standard EDT - Eastern Daylight EST - Eastern Standard CDT - Central Daylight CST - Central Standard MDT - Mountain Daylight MST - Mountain Standard PDT - Pacific Daylight PST - Pacific Standard ADT - Alaskan Daylight 86 Conversion from UTC JST - Japan Standard, USSR Zone 8 -3 hours EAST - East Australian Standard GST Guam Standard, USSR Zone 9 -4 hours -6 hours -7 hours -8 hours ALA - Alaskan Standard -9 hours HAW - Hawaiian Sta
NAVMAN iCN 620 user manual 87 4 Select the time format that you wish to use 12 hour clock or 24 hour clock. 5 Go to the Settings Simulator screen by pressing 6 Enable the Auto Simulate box to run an automatic route simulator. This allows you to program a route without a GPS fix (for example, from inside a building), and view the route without going anywhere. Refer to the section below for more information on using the Automatic Simulator.
NAVMAN iCN 620 user manual ý 88 User Settings Select SETTINGS The User Settings function allows you to quickly clear some or all of the information that you have stored in the unit for - USER then press example your Favourites. You can also disable the tutorial that is automatically run when you power up the unit. Page to view the software version and copyright of the unit Note: it is advisable to backup your Settings, Favourites and Shortcuts regularly, and before using the Clear Lists function.
NAVMAN iCN 620 user manual ý 89 Maps The maps setting allows you to manage maps loaded on both the internal memory and a secure Digital (SD) card. Maps will only be loaded when the unit is turned on if the check boxes are ticked.
NAVMAN iCN 620 user manual 90 13 AUTOMATIC ROUTE SIMULATOR The automatic route simulator allows you to program a route without a GPS fix (for example, from inside a building), and view the route without going anywhere. To use the auto simulator, you must first set a departure point and a destination. There are many ways to do this, but here is an example of one way you can set up the auto simulator. 1 From the Main Menu, select SETTINGS, then USER.
NAVMAN iCN 620 user manual 91 4 Press OK to display gridlines you are now in the manual Map Browser screen. 5 Use the 8-way toggle button to position the intersection of the gridlines over the DEPARTURE point that you require. When the gridlines are over a street, the street name is shown along the bottom of the screen. 6 Press OK to select the location. The address details are automatically displayed. 7 Select START to program this location as your departure point.
NAVMAN iCN 620 user manual 92 14 ACCESSORIES ý A number of accessories are available for the iCN 620 In-Car navigation unit. External or Re-radiating Antennae GPS signals are mainly transmitted through the windshield, and to a lesser extent, the side and rear windows. If your vehicle is fitted with an athermic (heat reflecting) or a heated windshield, GPS signals are not able to pass through the windshield, and therefore the signals getting to the unit are greatly reduced.
NAVMAN iCN 620 user manual ý 93 Memory Cards There are two types of memory card that can be used with your iCN 620 unit to give you additional memory for storing maps. Either an SD (Secure Digital) card or an MMC (Multi Media Card) memory card can be plugged into the slot in the top of the iCN 620 unit. Both SD and MMC are commonly available memory cards. They are used widely in many applications such as digital cameras, cellular phones and PDAs (Personal Digital Assistants).
NAVMAN iCN 620 user manual ý 94 Memory Card Writers The memory card writer is device that connects to your PC via a USB port, and is used in conjunction with the iCN Desktop application to download maps to SD or MMC memory cards. Note: SD and MMC cards must be formatted using FAT 16 format. See your PC user guide for more information on how to format SD or MMC card.
NAVMAN iCN 620 user manual 95 15 AVAILABLE MAPS A number of maps are supplied with your unit on CD-ROM.
NAVMAN iCN 620 user manual 96 US disk 1 Australia US disk 2
NAVMAN iCN 620 user manual 97 16 FREQUENTLY ASKED QUESTIONS ý How much does the iCN 620 cost to run once I have installed it? Nothing! The Navman GPS receiver uses data from satellites in orbit. This data is available, free of charge, for anyone who wants to use it.
NAVMAN iCN 620 user manual 98 17 TROUBLESHOOTING For detailed troubleshooting information, please refer to the website http://www.navman.com. ý I cannot get a GPS fix – what could be wrong? Check the satellite icon in the bottom left hand corner of the Map View screens the satellite will be coloured red if you have no GPS fix. If the satellite is coloured green, then the unit has a satisfactory GPS fix to operate.
NAVMAN iCN 620 user manual ý 99 The GPS seems to lose its fix randomly – why is this? ý Many things can affect the GPS reception. It is always best to be outdoors with a clear view of the sky. The GPS receiver will continue to search for a signal, and automatically re-calculate the route once reception is restored. The iCN Desktop application will not allow me to load any more maps into my unit. What can I do? The iCN 620 unit has 64 Mbytes of internal memory available for storing maps.
NAVMAN iCN 620 user manual 100 18 ADDITIONAL INFORMATION ý End User License and Warranty Agreement Software Product License: IMPORTANT - Please read carefully NAVMAN (THE LICENSOR) IS WILLING TO LICENSE THE iCN 620 SmartMAP SOFTWARE (THE SOFTWARE) TO YOU (THE CUSTOMER) ONLY IF YOU ACCEPT ALL THE TERMS OF THIS LICENCE. PLEASE READ THE TERMS CAREFULLY, BECAUSE USING THIS SOFTWARE WILL BE DEEMED TO BE YOUR ACCEPTANCE THAT YOU ARE USING IT ON THE FOLLOWING TERMS.
NAVMAN iCN 620 user manual 101 If any limitation or exclusion or liability contained in this Licence is held to be invalid for any reason and the Licensor becomes liable for loss or damage that would otherwise have been excluded, that liability will be limited to the total amount actually paid by the Customer for the Software. 7. The Licensor may terminate this Licence immediately if the Customer breaches any of its obligations under this Licence.
NAVMAN iCN 620 user manual ý 102 iCN 620 - Specifications Size 165 x 76 x 37 mm (6.5 x 3 x 1.5 in.) Weight Unit without accessory: 337 g Unit in Packaging: 1.
NAVMAN iCN 620 user manual ý 103 Contact Us Support for the United Kingdom and Europe Navman Europe Limited The Office Building Gatwick Road Manor Royal Crawley West Sussex, RH10 9RZ United Kingdom e-mail: support@navman-mobile.com website: www.navman.com Support for Australia For technical support, frequently asked questions, software updates and additional information, visit our Website:www.navman.
NAVMAN iCN 620 user manual ý 104 17-2 FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a normal installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
