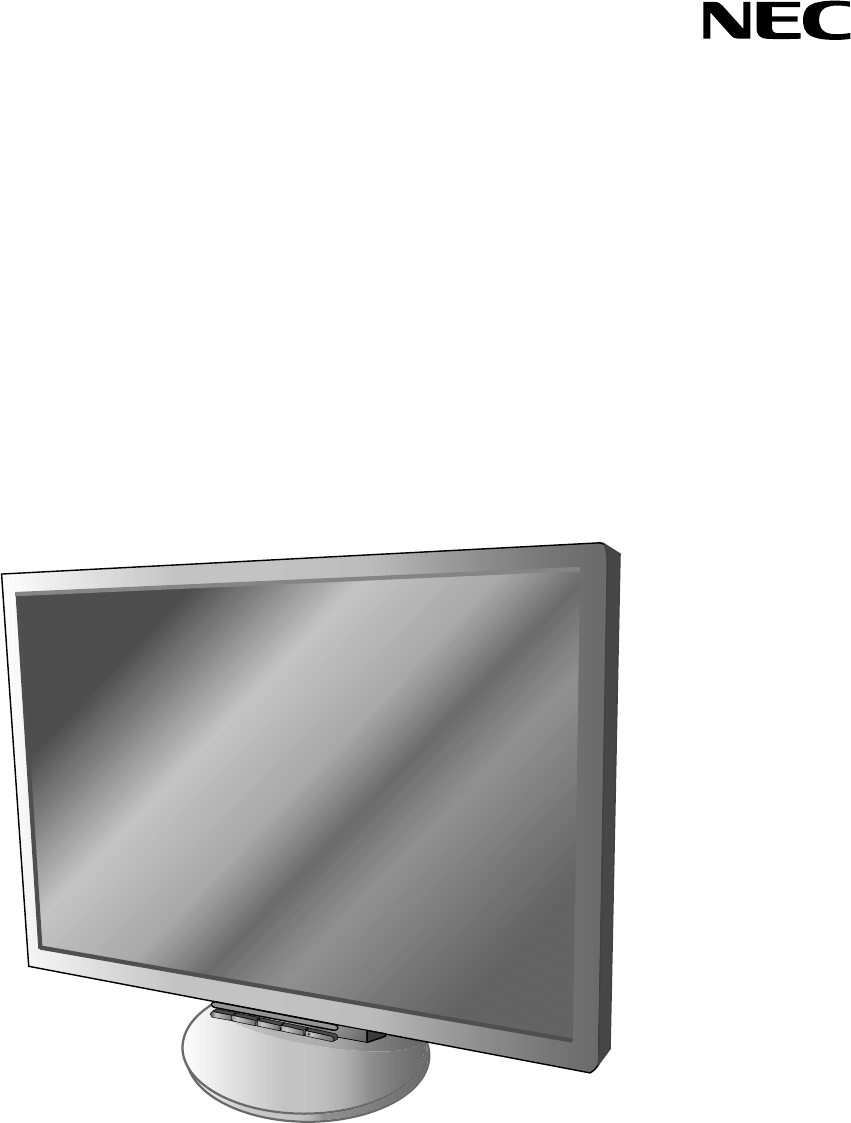

MultiSync LCD205WNXM MultiSync LCD225WNXM MultiSync LCD225WNX User’s Manual
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK • DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
For the Customer to use in U.S.A. or Canada Canadian Department of Communications Compliance Statement DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouiller du Canada. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CSA C22.2 No. 60950-1.
English Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync LCD monitor with tilt base • Audio Cable • Power Cord • Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male) • Video Signal Cable (DVI-D to DVI-D) (LCD225WNX only) • USB Cable (LCD205WNXM/LCD225WNXM only) • User’s Manual • Cable Management Cover • CD-ROM CD-ROM User’s Manual User’s Manual Audio Cable Cable Management Cover 15-pin mini D-SUB male to 15-pin mini D-SUB mal
3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position (Figure B.1). 4. Connect all cables to the appropriate connector on the back of the monitor (Figure B.1). Using the USB cable, connect the B type connector to the USB upstream port on the bottom of the monitor and A type connector to the downstream port on the computer (Figure C.1).
NOTE: Handle with care when placing the cable cover and avoid pinching your fingers. 10. Connect the power cord to the power outlet (Figure D.3). NOTE: If you have difficulty removing the cable cover, please push the lower opening upward to remove it, as show in Figure E.1. NOTE: Please refer to the Caution section of this manual for proper selection of power cord. Figure E.1 11. Turn on the monitor with the front power button and the computer (Figure D.3). Power button Figure D.1 Figure D.
Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1. Place hands on each side of the monitor and lift up to the highest position. Remove the cable cover. NOTE: If you have difficulty removing the cable cover, please push the lower opening upward to remove it, as shown in the figure beside. 2. Disconnect all cables. 3. Place monitor face down on a non-abrasive surface (Figure R.2). 4.
OSD (On-Screen-Display) control buttons on the front of the monitor function as follows: 1. Basic function at pressing each key – SELECT Button + At No OSD showing Showing OSD. Shortcut to Brightness adjust Menu. Shortcut to Volume adjust Menu. At OSD showing Go to Adjustment stage. Cursor goes to left. Cursor goes to right. Go to Icon selection stage. Adjust value decrease or Cursor for adjust goes to left. Adjust value increase or Cursor for adjust goes to right.
VOLUME Control the sound volume of speakers and headphone. To mute the speaker sound, press the 1<->2/RESET key. BRIGHTNESS Adjusts the overall image and background screen brightness. CONTRAST Adjusts the image brightness in relation to the background. AUTO CONTRAST (Analog Input only) Adjusts the image displayed for non-standard video inputs. AUTO ADJUST (Analog Input only) Automatically adjusts the Image Position, the H. Size and Fine setting.
This control completely locks out access to all OSD control functions without Volume, Brightness and Contrast. When attempting to activate OSD controls while in the Lock Out mode, a screen will appear indicating the OSD are locked out. To activate the OSD Lock Out function, press “1<->2/ RESET”, then “+” key and hold down simultaneously. To de-activate the OSD Lock Out, press “1<->2/ RESET”, then “+” key and hold down simultaneously.
Recommended use Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC LCD COLOR MONITOR: • DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel. • Do not spill any liquids into the cabinet or use your monitor near water.
• For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen. • Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm. • Rest your eyes periodically by focusing on an object at least 6 m away. Blink often.
Specifications - LCD205WNXM Monitor Specifications MultiSync LCD205WNXM Monitor LCD Module Diagonal: 51.1 cm/20.1 inches Native Resolution (Pixel Count): 1680 x 1050 Input Signal Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.258 mm dot pitch; 300 cd/m2 (Typ) white luminance, 1000:1 (Typ) contrast ratio, typical; response time: 5 ms (Typ). PC INPUT: Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: DVI-D Sync: Separate sync.TTL Level (Positive/Negative) Horizontal sync.
Monitor Specifications MultiSync LCD225WNXM Monitor LCD Module Diagonal: 55.9 cm/22.0 inches Native Resolution (Pixel Count): 1680 x 1050 Input Signal Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.282 mm dot pitch; 300 cd/m2 (Typ) white luminance, 1000:1 (Typ) contrast ratio, typical; response time: 5 ms (Typ). PC INPUT: Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: DVI-D Sync: Separate sync.TTL Level (Positive/Negative) Horizontal sync. Positive/Negative Vertical sync.
Specifications - LCD225WNX Monitor Specifications MultiSync LCD225WNX Monitor LCD Module Diagonal: 55.9 cm/22.0 inches Native Resolution (Pixel Count): 1680 x 1050 Input Signal Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.282 mm dot pitch; 300 cd/m2 (Typ) white luminance, 1000:1 (Typ) contrast ratio, typical; response time: 5 ms (Typ). PC INPUT: Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: DVI-D Sync: Separate sync.TTL Level (Positive/Negative) Horizontal sync.
Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The small footprint and low weight allow it to be moved or transported easily from one location to another. Color Control System: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards. No-touch Auto Adjust: No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup.
Troubleshooting No picture • The signal cable should be completely connected to the display card/computer. • The display card should be completely seated in its slot. • Check front power Switch and computer power switch should be in the ON position. • Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.
English TCO’03 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentallyfriendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
