BuzzBox
115
2
Attach one end of the parallel cable on the interface box to the printer’s
parallel port.
5"
The BuzzBox’s ribbon cable is designed to be directly attached to
the printer’s parallel port, not to an adapter or an additional cable.
3
Use the RJ-11 cable to connect BuzzBox to the interface box.
4
Choose a good location on the printer to mount the interface box. Make
sure that the unit does not
z interfere with paper exiting the printer.
z cover any vents, doors, connectors, or labels.
z cause the BuzzBox ribbon cable to stretch or twist.
5
Use the Velcro
®
attachment provided to mount the BuzzBox where the
printer operator can see and/or hear it.
A 14-foot (4.2 m) cable is provided, but you can use up to a 500-foot cable
(RJ-11 4-pin or 6-pin).
6
Connect the interface box to an electrical outlet.
A 110/220-volt adapter is provided in the US, and a universal power sup-
ply is provided outside the US.
7
If you unplugged a parallel cable from the printer in step 1, attach the
cable to the parallel port on the interface box.

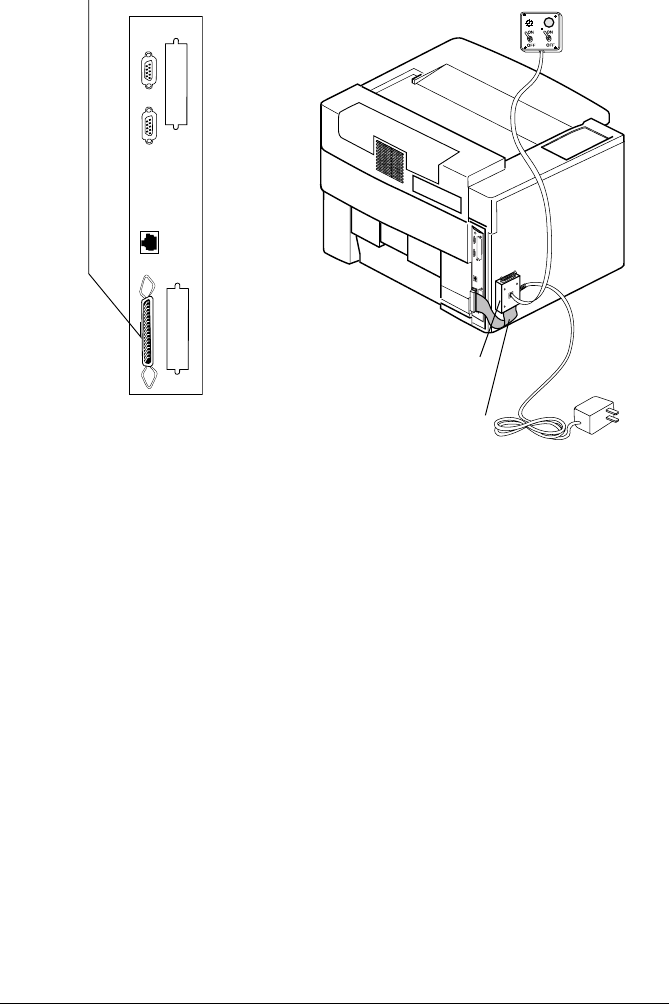

BuzzBox
Adapter
Ribbon cable
Interface box
