Dual In-Line Memory Modules (DIMMs)
119
3

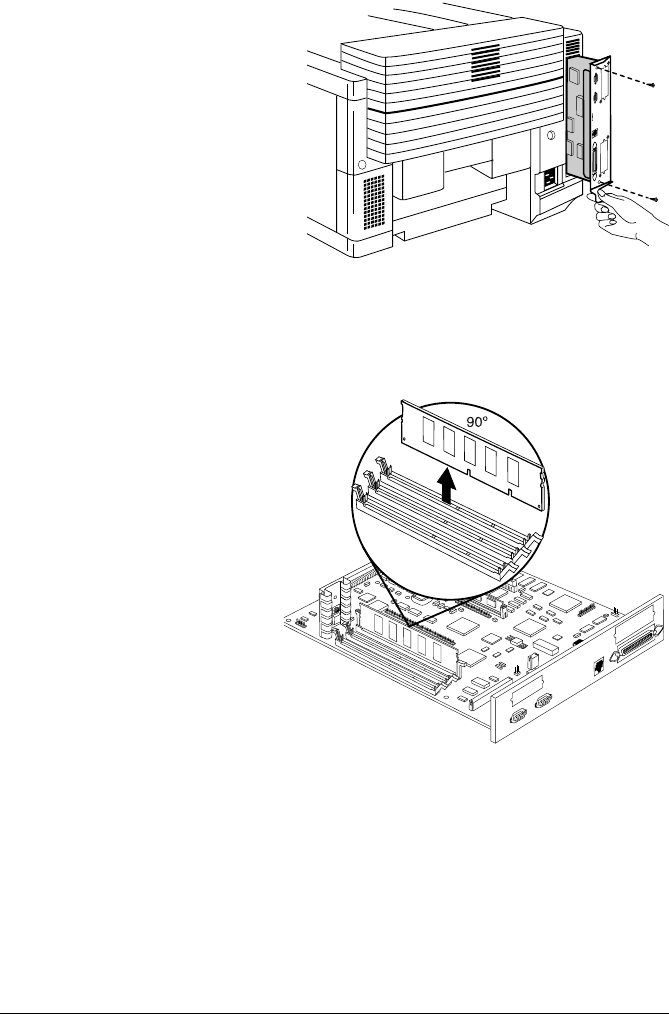

Remove the controller board from the printer.
Loosen two screws, one
on each end of the I/O
connector panel, and,
using the tab on the lower
side of the connector
panel, pull the controller
board from the printer.
4
Position the controller
board on a flat surface so
the I/O connector panel is
facing you.
5"
If you want to install more memory, you have to exchange one or
more DIMMs for DIMMs with a greater memory capacity.
5
If you need to remove a DIMM before installing one, remove it as follows;
otherwise skip to step 6.
a
Using both thumbs,
pull the latches (A)
(one on each side of
the DIMM connec-
tor) outward.
b
Lift the DIMM straight
out (B)
of the DIMM
connector.
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIII
................................................ ........................ ..........
................................................ ........................ ..........
................................................ ........................ ..........
................................................ ........................ ..........
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIII
................................................ ........................ ..........
................................................ ........................ ..........
................................................ ........................ ..........
................................................ ........................ ..........
................................................ ........................ ..........
................................................ ........................ ..........
A
A
B
