Dual In-Line Memory Modules (DIMMs)120
6

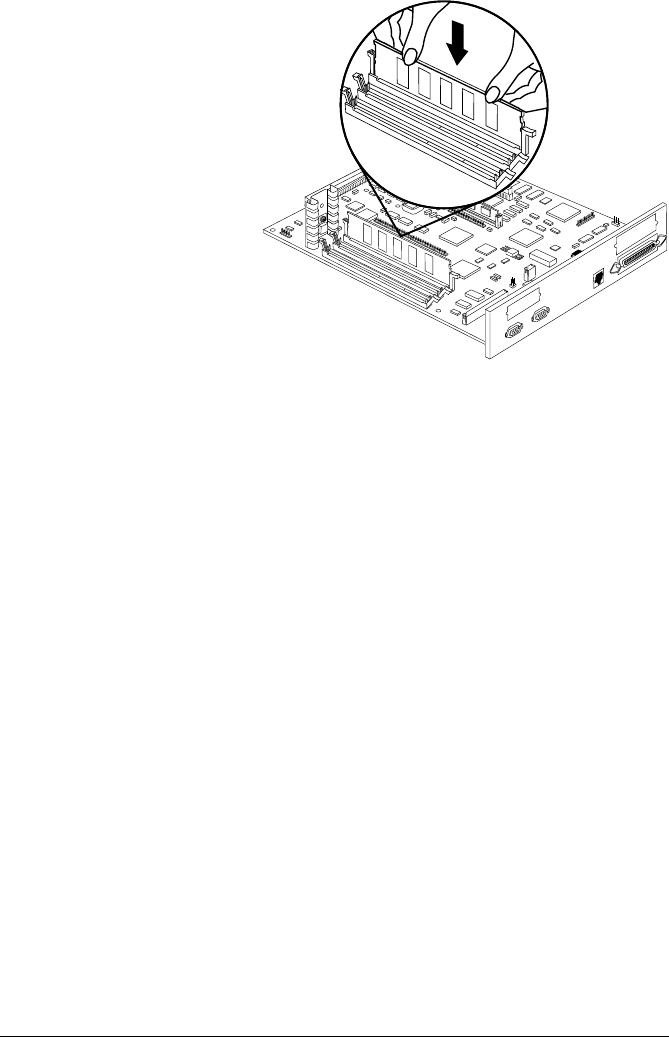

Insert the new
DIMM straight down
into the DIMM con-
nector until the
latches snap into
the locked position.
Observe the keyed
side of the DIMM to
align it with the con-
nector. When
seated, the DIMM
stands upright,
firmly in place. If
you cannot snap the
DIMM into place, do
not force it. Reposi-
tion it, making sure
that the bottom of
the DIMM is seated completely in the connector.
7
Reinstall the controller board into the printer.
Gently slide the controller board into the printer’s tracks until it is fully
seated, and then tighten the two screws.
8
Reconnect all interface cables.
9
Reconnect the power cord, and turn on the printer.
5"
In compliance with UL guidelines, “The appliance inlet is consid-
ered to be the main disconnect device.”
