Duplex Unit122
Duplex Unit
5"
Installing the duplex unit requires at least one lower feeder unit
installed.
Installing a Duplex Unit
The duplex unit attaches to the rear of the printer and the lower feeder
unit (LFU).
Kit Contents
„
Duplex unit
„
2 thumbscrews
Installation
Attention
Make sure the printer is turned off and unplugged before performing the
following steps.

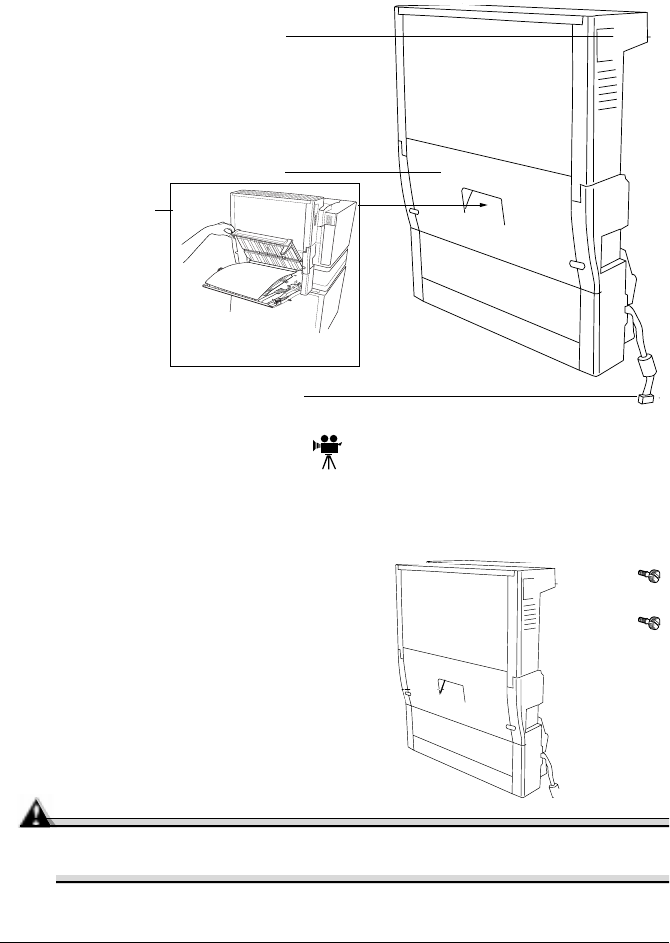

1—Duplex unit top cover
2—Service door
3—Duplex unit service door
(open)
4—Duplex unit interface
c
d
e
163mqati
f
