Duplex Unit
123
1

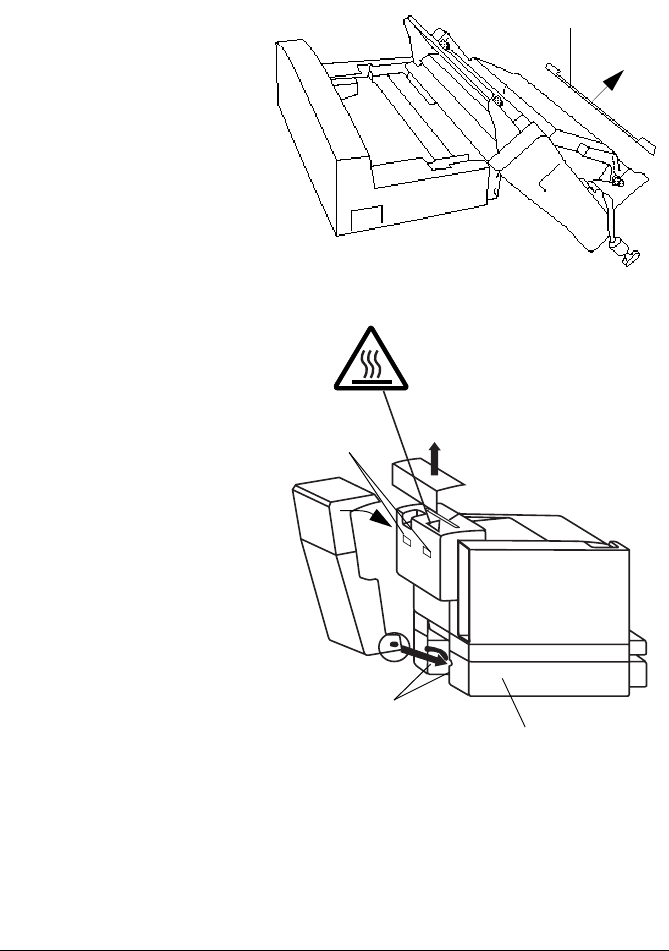

Unpack the duplex unit from its shipping box.
5"
We
strongly
suggest that you save the packaging materials in
case you ever need to move or ship the printer.
2
Remove the shipping
spacer from the bot-
tom of the duplex
unit.
3
Remove the upper
paper exit cover from
the top-rear of the
printer.
4
Facing the back of the
printer, using a
flat-bladed screw-
driver or small coin,
remove the two plugs
from the upper-rear of
the printer by gently
prying outward from
the plug slots.
5
Facing the back of the
printer, remove the two
access plates located
on the rear, inside
panels of the LFU by
sliding the plates
toward you.
Shipping spacer
LFU
Upper paper exit cover
Duplex
uni
t
Plugs
Access plates
