Duplex Unit124
6

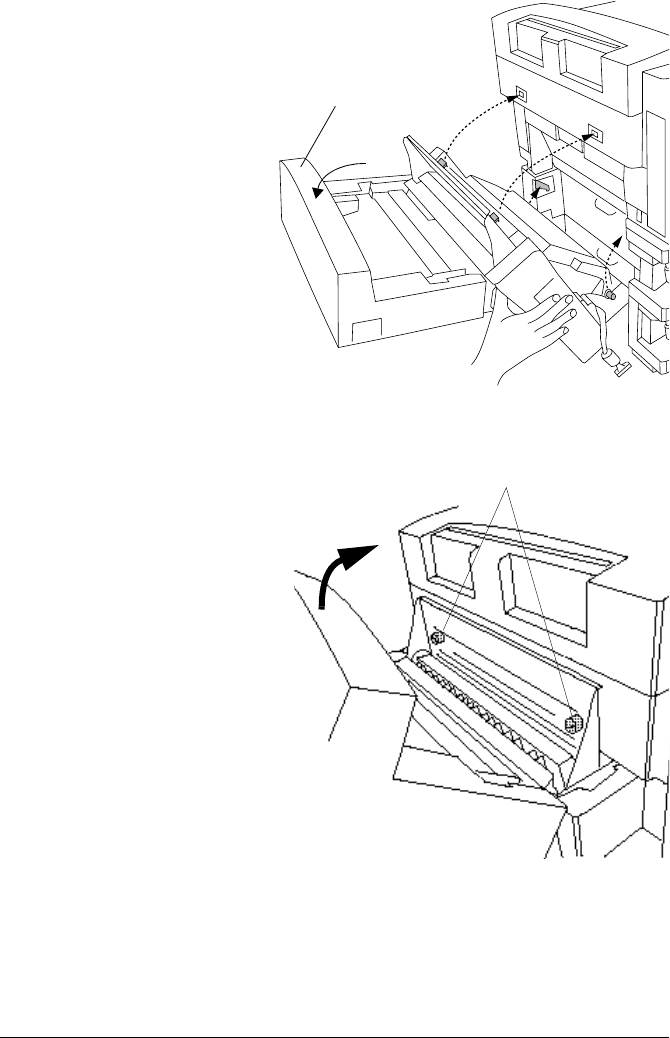

Open the duplexing
unit top cover.
7
Attach the duplex unit
by aligning the pins
with the slots located
at the lower rear of the
LFU.
8
Push the top of the
duplex unit toward the
printer to snap it into
place against the rear
printer casing.
9
Fasten the two thumb-
screws to lock the
duplex unit into place.
10
Close the duplex unit top
cover.
Top cover
Thumbscrews
