Lower Feeder Unit (LFU)136
10

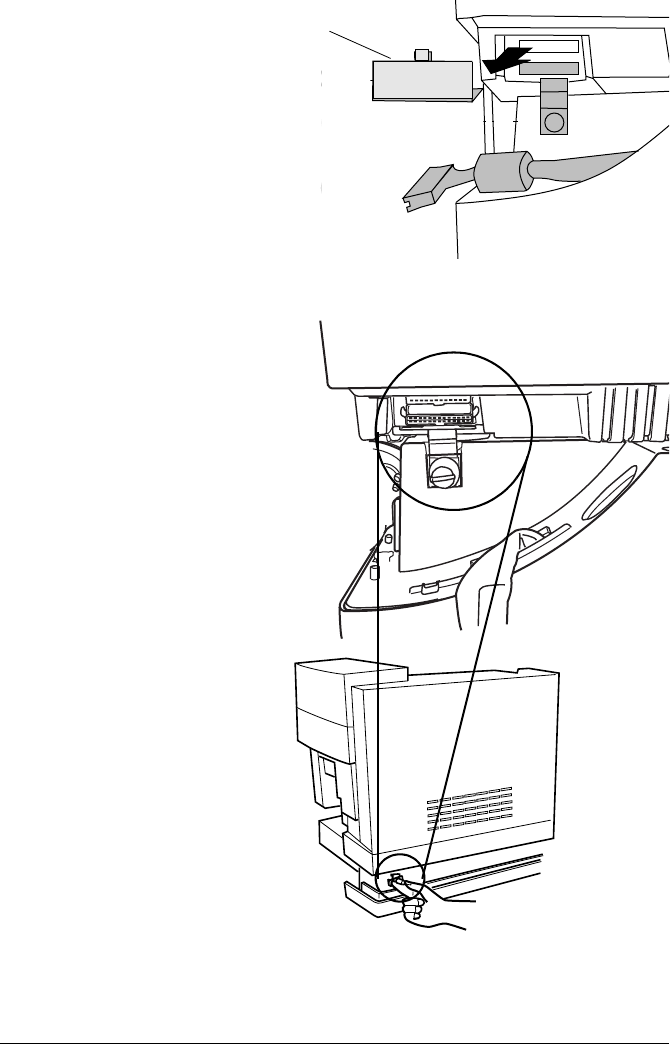

Remove the printer’s con-
nector access cover on the
bottom left side of the
printer by sliding the cover
down and then out.
The connector access cover
is replaced by the left side
cover of the LFU.
11
Install the metal
bracket underneath
the side of the printer
just below the
connector.
Holding the bracket
at a slight angle, slide
it up into the hole
underneath the printer
before setting it to
vertical.
12
Make sure that the
hole in the metal
bracket is lined up
with the corresponding
hole on the input
feeder.
Access cover
098mati.eps
