Lower Feeder Unit (LFU)138
16

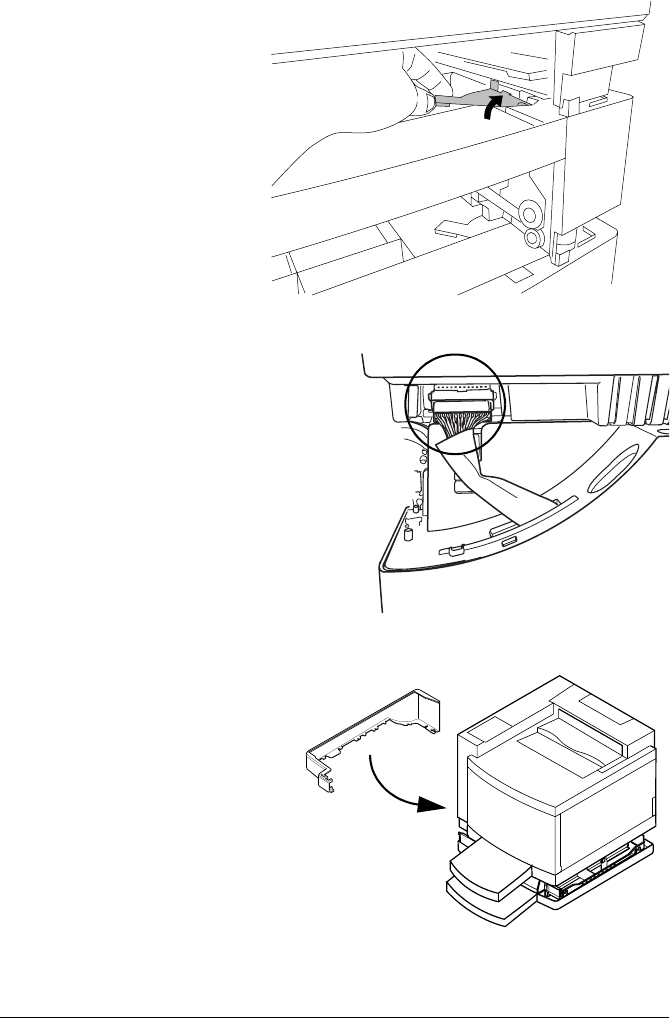

For dual LFU instal-
lations: Close the
metal coupler
inside of the other
LFU’s tray slot to
secure both LFUs
to the printer.
17
Connect the LFU
cable to the white printer con-
nector.
18
For dual LFU installations:
Connect the lower LFU cable to
the upper LFU connector.
19
Install the right side cover(s)
20
Install the left side
cover(s).
