Printer User Manual

Interfaces and Daughterboards
143
7

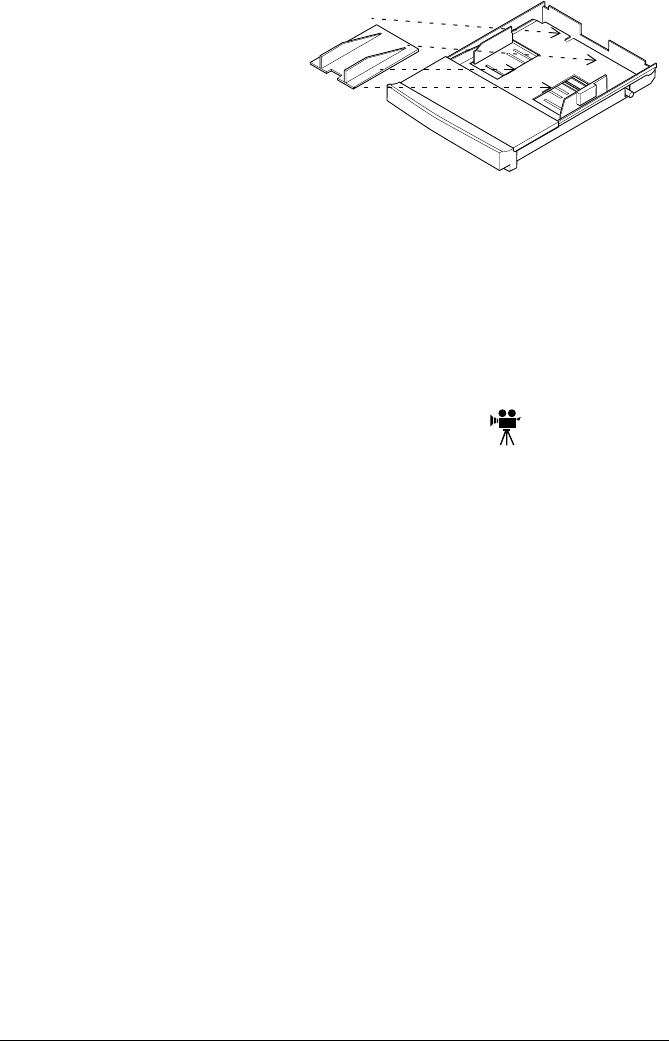

Install the postcard
feeder onto the tray
as shown.
8
Adjust the media guides
to the length and width
of the postcards.
5"
Make sure the
guides are snug
enough to keep the postcards straight, but not so tight that they
buckle the postcards.
9
Place the postcard stack into the tray with the printing-side up.
10
Slide the media tray back into the printer.
The media tray must be located in the upper position, not in the optional
lower input feeder.
Interfaces and Daughterboards
Interfaces
Your printer supports the following interface cards:
„
CrownNet for Ethernet 10BaseT/100BaseTX (TCP/IP, NetWare, Ether-
talk, LAN Manager/LAN Server) for an additional CrownNet for Ethernet
connection
„
CrownNet for Token-Ring (TCP/IP, NetWare, LAN Manager/LAN Server)
„
Crown for DECnet-TCP/IP
„
LocalTalk
You can install one of these interface cards in addition to the two standard
interfaces—parallel and CrownNet for Ethernet (TCP/IP, NetWare, Ethertalk,
LAN Manager/LAN Server). The printer’s Simultaneous Interface Operation
(SIO) allows all of these interfaces to be active at the same time. In other
words, your printer can simultaneously communicate through all three ports
with three hosts, either computers or networks.
If installing Token-Ring or LocalTalk optional interface cards, see the
“Notices” section in the
Installation Guide
for FCC compliance classification
information.
