Interfaces and Daughterboards144
What’s in the Kit?
An optional interface kit includes the following:
„ An interface card
„ Interface documentation (in hardcopy and/or on CD-ROM)
The kit may also include additional parts not required for network interface
installation on this printer.
Installation
Attention
It’s very important to protect the printer controller board and any
associated circuit boards from electrostatic damage. Before performing
this procedure, review the antistatic caution on page 113. In addition,
always handle circuit boards by the edges only.
1
Turn off the printer,
and then disconnect
the power cord and
all interface cables
from the printer.
2

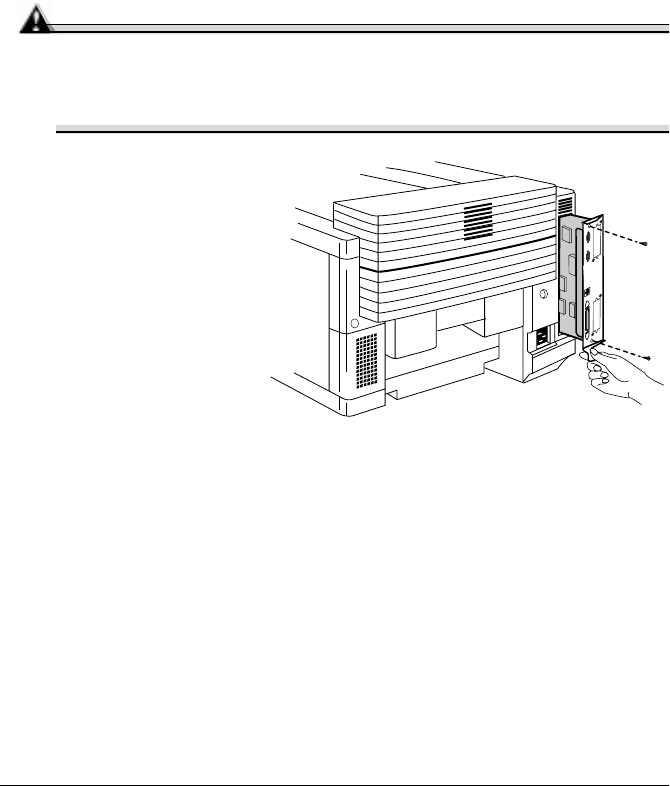

Loosen two screws
(one on each end of
the interface panel)
and, using the tab
on the lower side of
the panel, pull the
controller board
from the printer.
