Remove the Cables and Media Tray(s)
167
Remove the Cables and Media Tray(s)
1
Turn off the printer.
2
Remove the power cable and all interface cables.
3
Remove the media tray(s) from the printer.
Remove the Toner Cartridges
1
Open the printer’s front and top covers.
Attention
If you have an optional duplex unit installed, always open the duplex
unit’s top cover before opening the printer’s top cover.
Leave the covers open during the repacking procedure.
2
Remove the four toner cartridges, attach the protective shields over their
magnetic rollers, and store them in their original packaging.
Prepare the Fuser Unit
WARNING!
The fuser unit can become extremely hot and cause severe
burns. Make sure the unit is cool before handling it.
ACHTUNG! Die Fixiereneinheit kann sehr heiß werden, so daß
Verbrennungsgefahr besteht. Bitte lassen Sie die Fixiereneinheit einige
Zeit abkühlen, bevor Sie diese berühren.
1

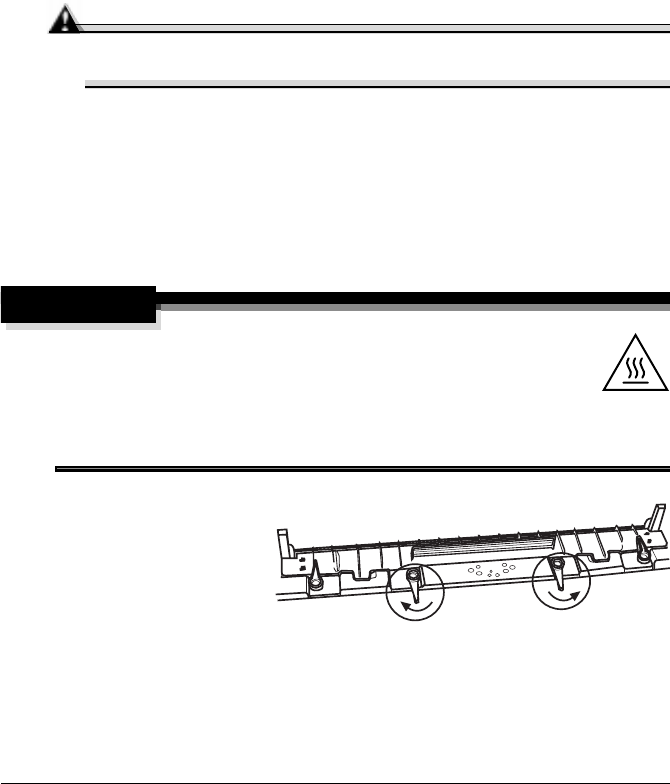

With the printer’s top
cover open, at the
top of the fuser,
rotate the two lock
levers to release the
oil bottle.
