Remove the Lower Feeder Unit(s)
171
4

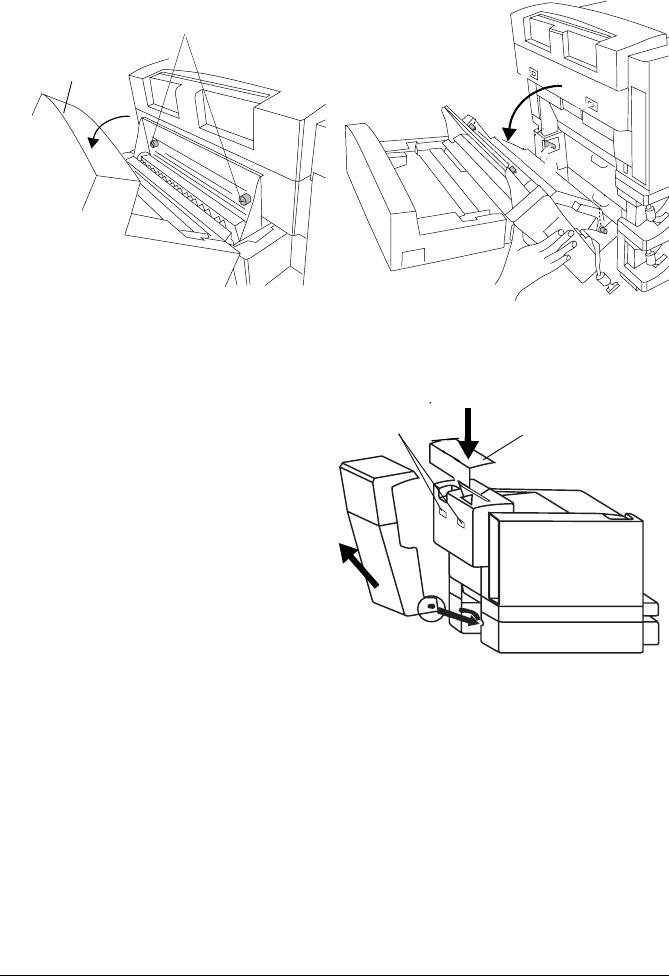

Open the duplex unit top cover and loosen the two thumbscrews until the
duplex unit moves freely away from the rear of the printer.
5
Lift duplex unit up and away from rear of printer.
6
Repack the duplex unit in its original shipping carton for storage or
shipment.
7
Insert the two plugs and
upper paper exit cover
removed during installation.
5"
If you’re returning
the printer for ser-
vice, you don’t need
to return the duplex
unit unless
instructed to do so.
Remove the Lower Feeder Unit(s)
5"
If you don’t have a lower feeder unit installed, skip to the next section.
1
Make sure the printer’s top and front covers are closed.
Duplex unit
top cover
Thumbscrews
Upper paper
exit cover
Plugs
