Remove the Lower Feeder Unit(s)172
2

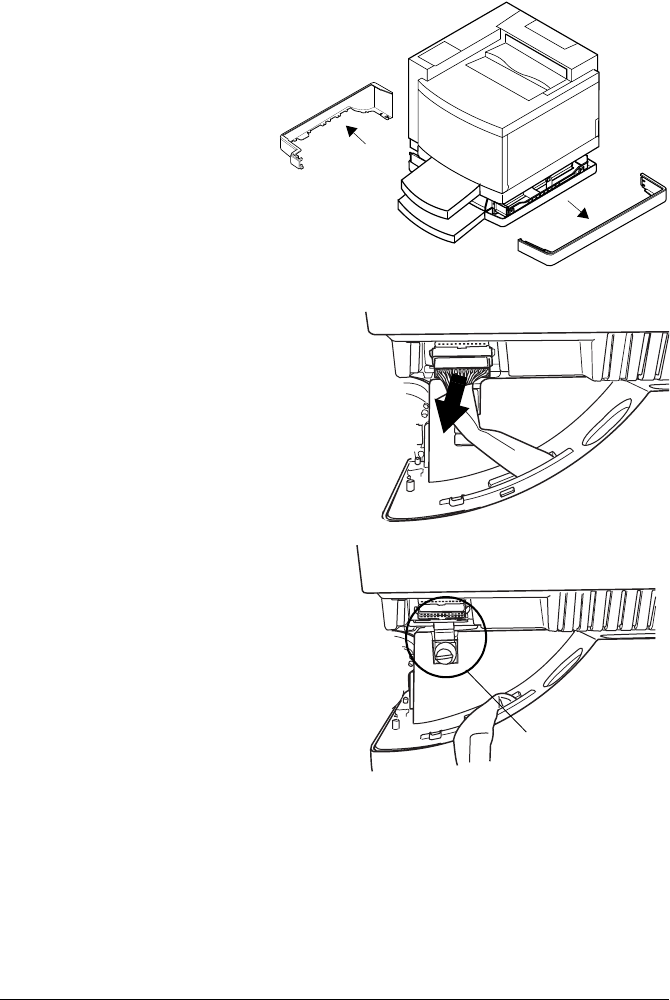

Remove the plastic side covers from the sides of the lower feeder unit.
5"
If you have
two lower
feeder units
installed,
remove the
plastic side
covers from
the top lower
feeder unit
only.
3
Locate the cable at
the left rear of the lower feeder
unit that connects it to the
printer, and then unplug it.
4
Loosen the thumbscrew that
attaches the bracket to the
lower feeder unit until the
bracket moves freely away
from the lower feeder unit.
Thumbscrew
