Replacing the OPC Belt Cartridge
19
6

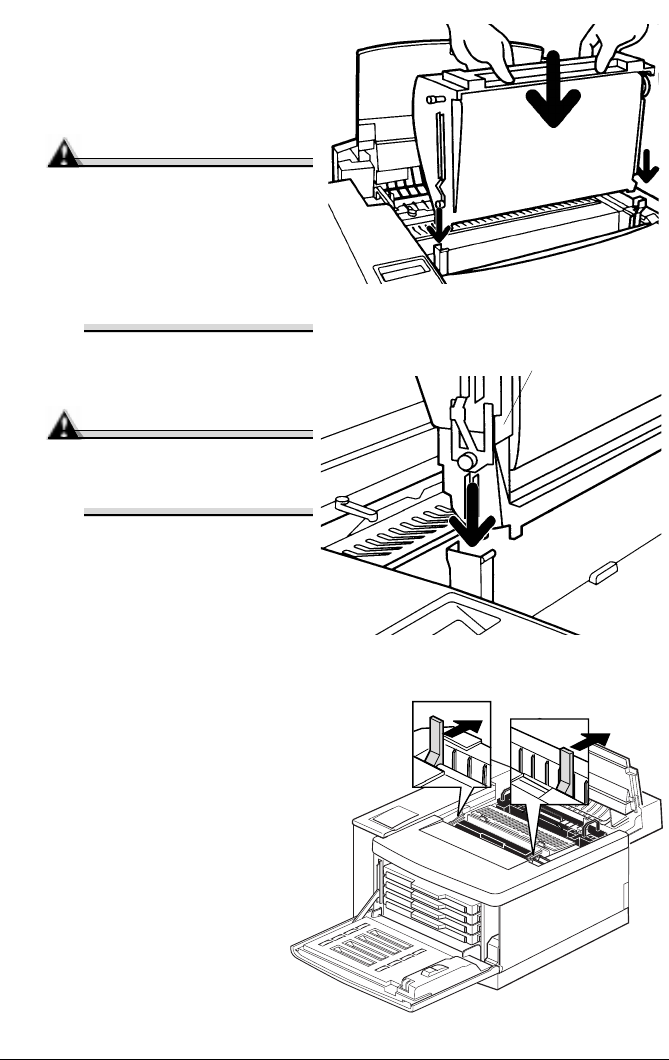

Holding the cartridge
above the printer, align the
guide pins on the cartridge
with the guide slots in the
lock levers.
Attention
When lowering the
cartridge into the guide
slots, the metal contact
on the lower-left side of
the cartridge should be
aligned outside of the
left guide slot.
7
Gently guide the cartridge
into the printer.
Attention
The cartridge should
slide easily into the
printer. Don’t force it.
8
Rotate the two lock
levers to secure the
OPC belt cartridge in
the printer.
Metal contact
