Replacing the Fuser Oil Bottle
21
How do I replace the fuser oil?
When the oil in the fuser oil bottle is expended, the message FUSER OIL
EMPTY appears and the printer does not print. Replace the fuser oil bottle.
After the new bottle is installed, printing automatically resumes.
1

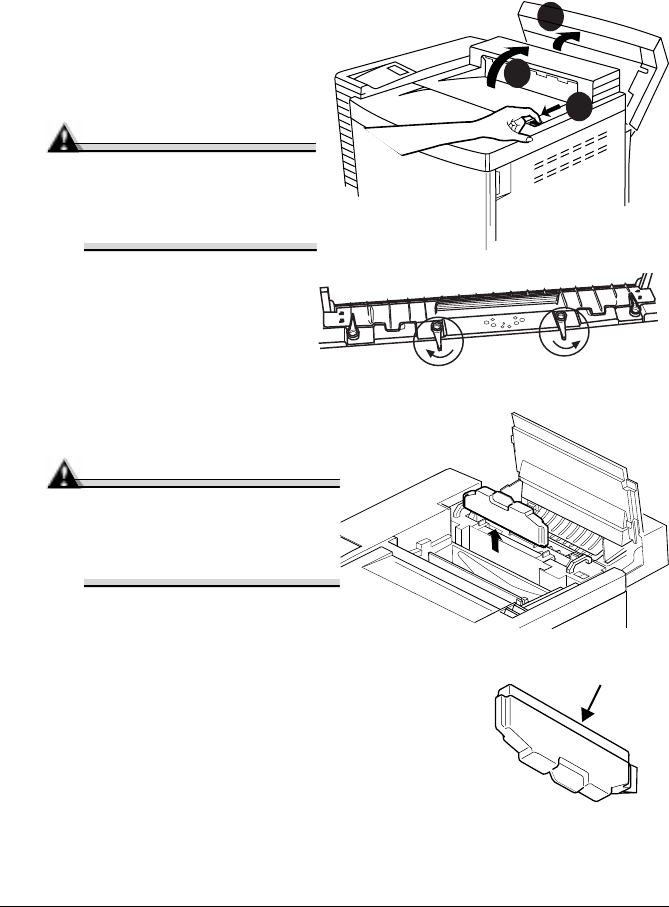

Turn off the printer.
2
Open the top cover of the
printer.
Attention
If you have installed a
duplex unit, it must be
opened before the
printer’s top cover.
3
Rotate the two fuser oil
bottle lock levers to
release the fuser oil bottle.
4
Remove the empty fuser
oil bottle.
Attention
Hold a sheet of paper under
the oil bottle as you remove
it, so no oil drips into the
printer.
5
Turn the nozzle on the open-
ing on the bottom clockwise to close it.
6
Use the fuser oil remover syringe that came with
your printer or an eye-dropper to remove any
excess oil from the printer.
5"
Dispose of the oil and fuser oil bottle in
accordance with local safety laws and
regulations.
1
2a
2b
Nozzle
