Replacing the Fuser Oil Bottle22
7

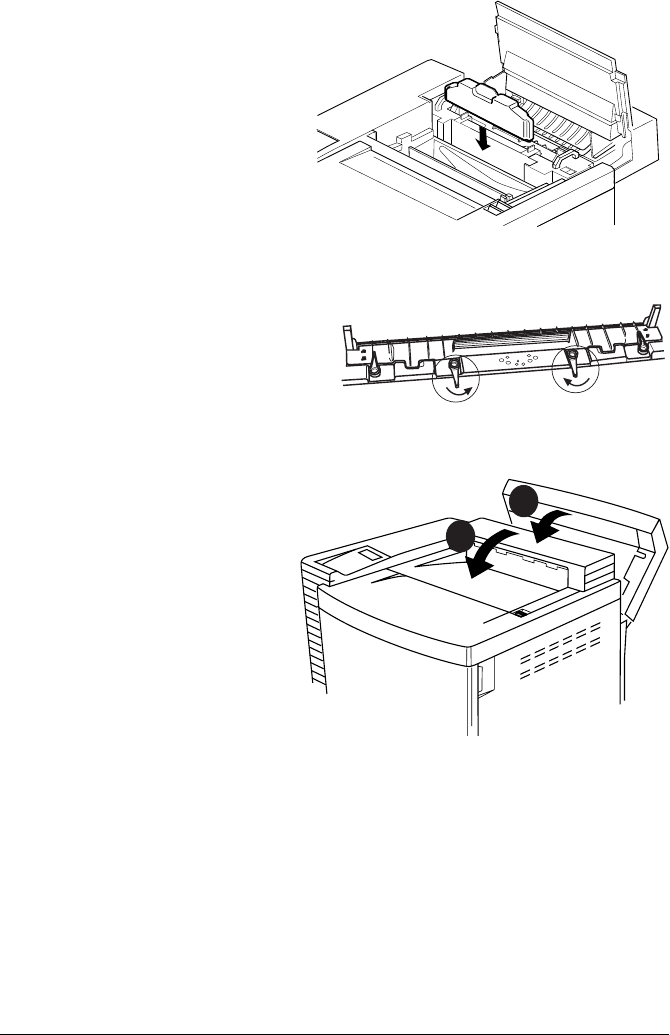

Install the new fuser oil
bottle (nozzle down).
8
Rotate the two oil bottle
levers to lock the oil bottle
into place.
9
Close the top cover and
turn on the printer.
5"
If you have a
duplex unit
installed, close
the unit’s top
cover.
10
In the Operator Control/
Consumables/Item
Replaced/Fuser Oil
menu choose
Yes
to
reset the consumables
usage monitoring system.
5"
You should manually reset the consumables usage monitoring
system to ensure accurate consumables monitoring.
To access consumables usage information, use the Operator Control/
Consumables/Print Statistics menu or the CrownView printer web page.
