Cleaning the Printer58
3

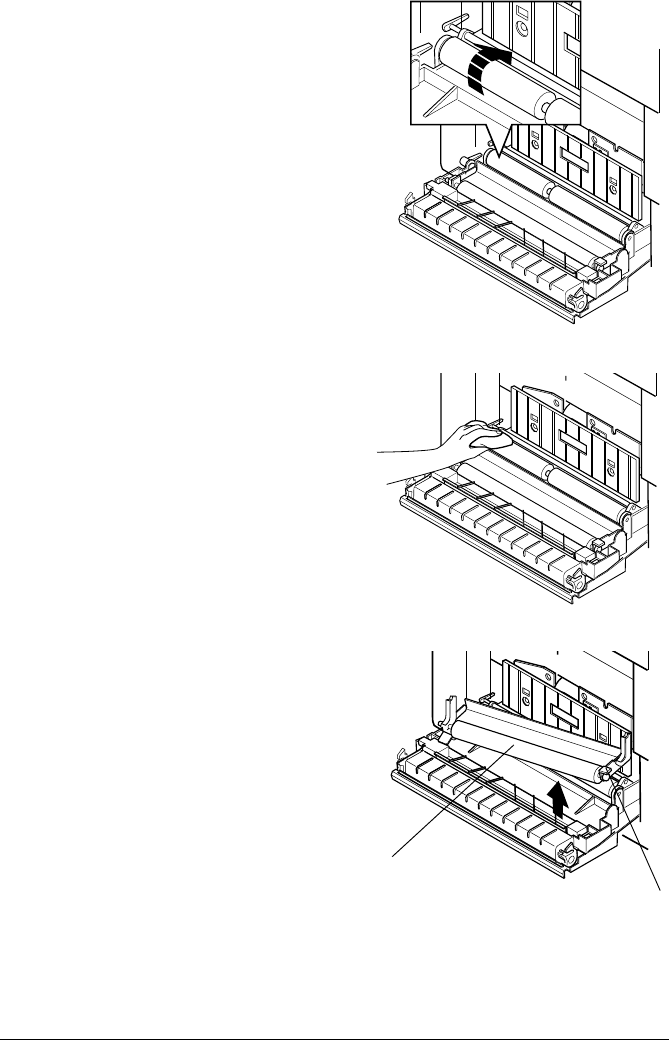

Using a dry cotton cloth, clean any
paper dust and toner buildup from
the registration
rollers.
You can manually rotate the rollers
while cleaning them by turning the
gear on the left end of the roller
shaft.
4
Clean the transfer roller.
a
Remove the transfer
roller unit by lifting the lock lever
at the right end of the transfer
roller unit until the unit is freed,
and then lifting the unit out.
5"
Because you cannot see
when the unit is
released, it’s best to lift
the unit and the lock
lever at the same time.
023X i
Transfer roller
Lock lever
