Cleaning the Printer62
5

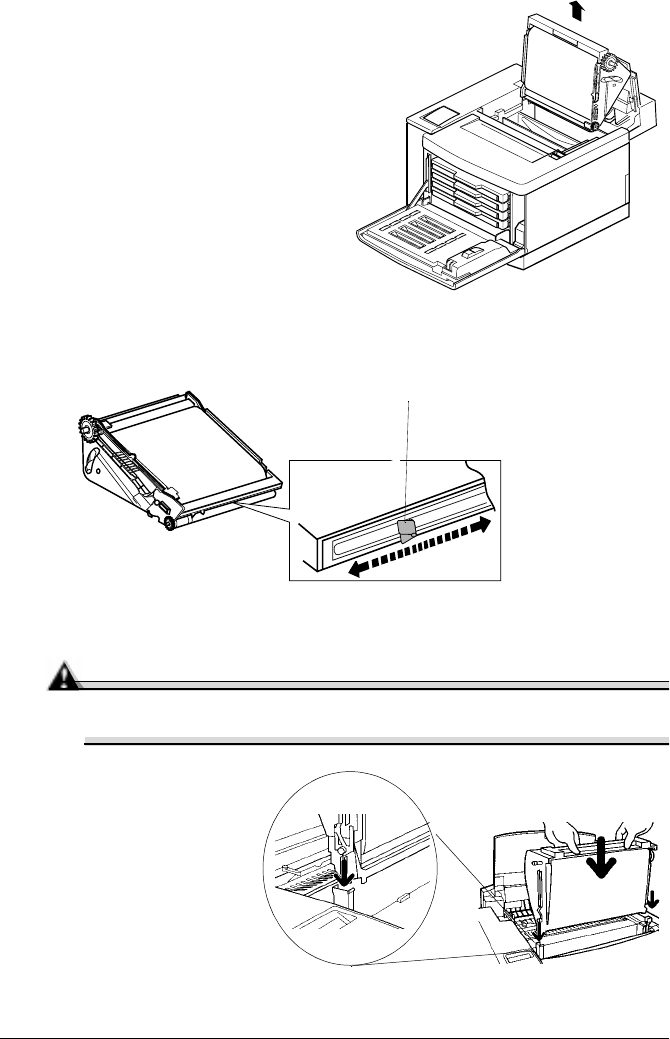

Remove the OPC belt cartridge.
6
Clean the corona wire using the built-in wire cleaner attached to the
corona case.
While pinching the two tabs of the wire cleaner together, slide the wire
cleaner to both ends of the corona case.
Attention
Failure to return the wire cleaner to its home position (marked by an
arrow on the corona case), may degrade print quality.
7
Reinstall the OPC
belt cartridge.
Corona case
Wire cleaner
