Automatic Jam Recovery
The magicolor 6110 provides automatic jam recovery (when enabled through
the Administration/Engine/Page Recovery menu). After you remove any
jammed media, printing automatically resumes from the page the printer
stopped at when the jam occurred.
5"
For automatic jam recovery to work, it is necessary to leave the printer
turned on when you remove the jammed media. After the jam is
cleared, open and close the top door before printing. Printing will not
resume until you do this.

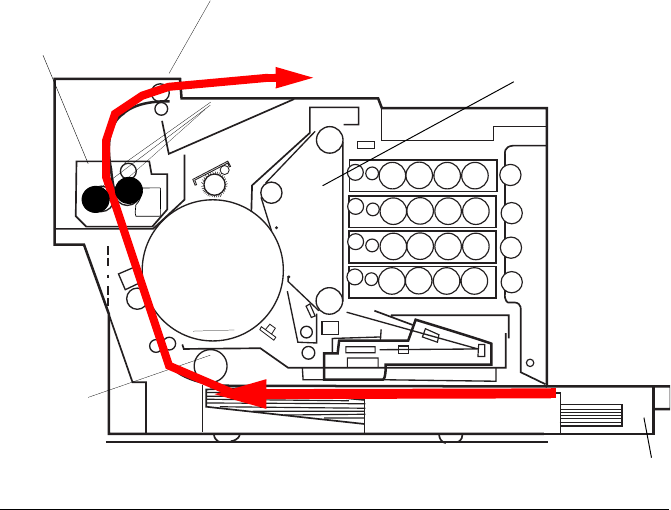

Understanding the Media Path
Understanding the printer’s media path will help you locate media jams. The
media tray is located at the bottom front of the printer. The media is picked
from the cassette, passed under the transfer drum, passed through the fuser,
and delivered via the paper exit unit to the media exit tray, which is the top of
the printer. Access to the media path, in case of a media jam is through the
printer’s rear cover.
Universal media tray
Transfer
drum
Fuser unit
Exit roller
Fuser
rollers
Pickup
rollers
Rear Front
Side view
Output tray
OPC belt
