Reference Guide

N8406-022A 1Gb Intelligent L2 Switch Smart Panel Reference Guide 11

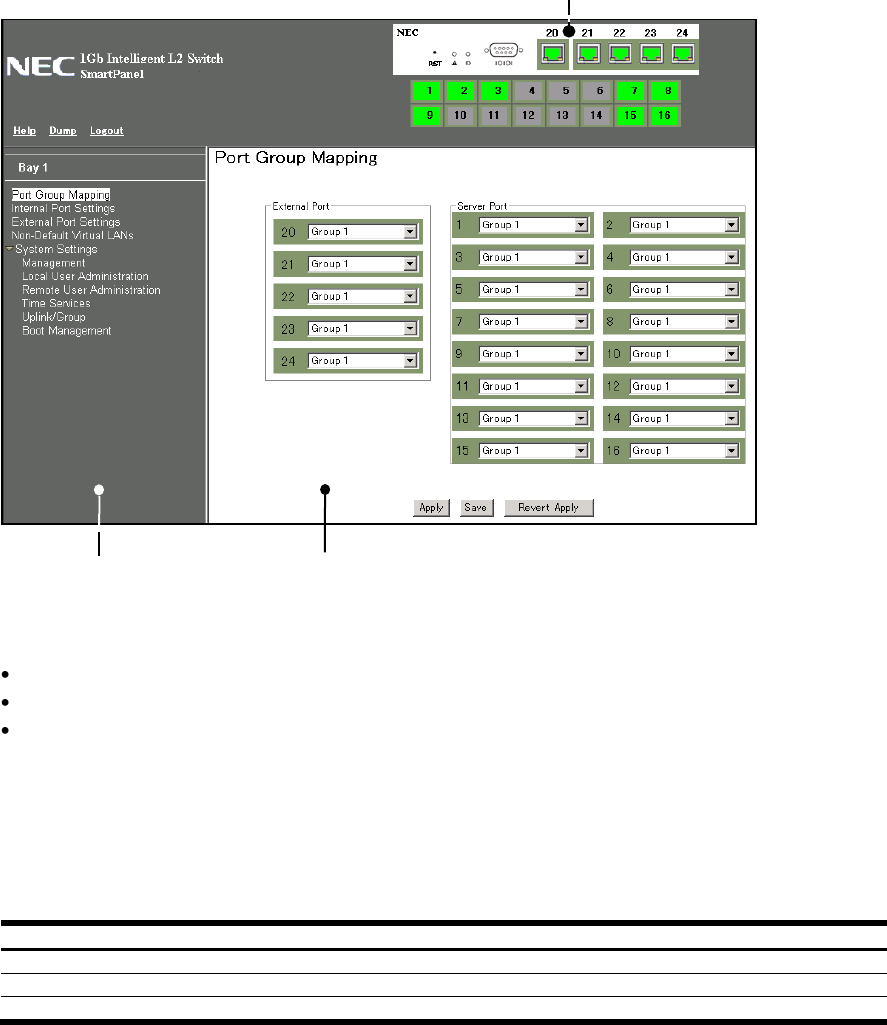

There are three main regions on the screen.
The Port Status Area is used to view port status. Click a port icon to view details.
The Menu Area is used to select particular items or features to act upon.
The Configuration Area is used to configure selected items.
Port Status Area
The Status Area contains port icons that display status information about each port. Click a port icon to display
detailed information about the port.
A color box indicates the Port Group in which each port resides.
Table 4 Link status
Color
Description
Green
Link up
White
No link
Gray
Disabled
Menu Area
Configuration Area
Port Status Area
