87

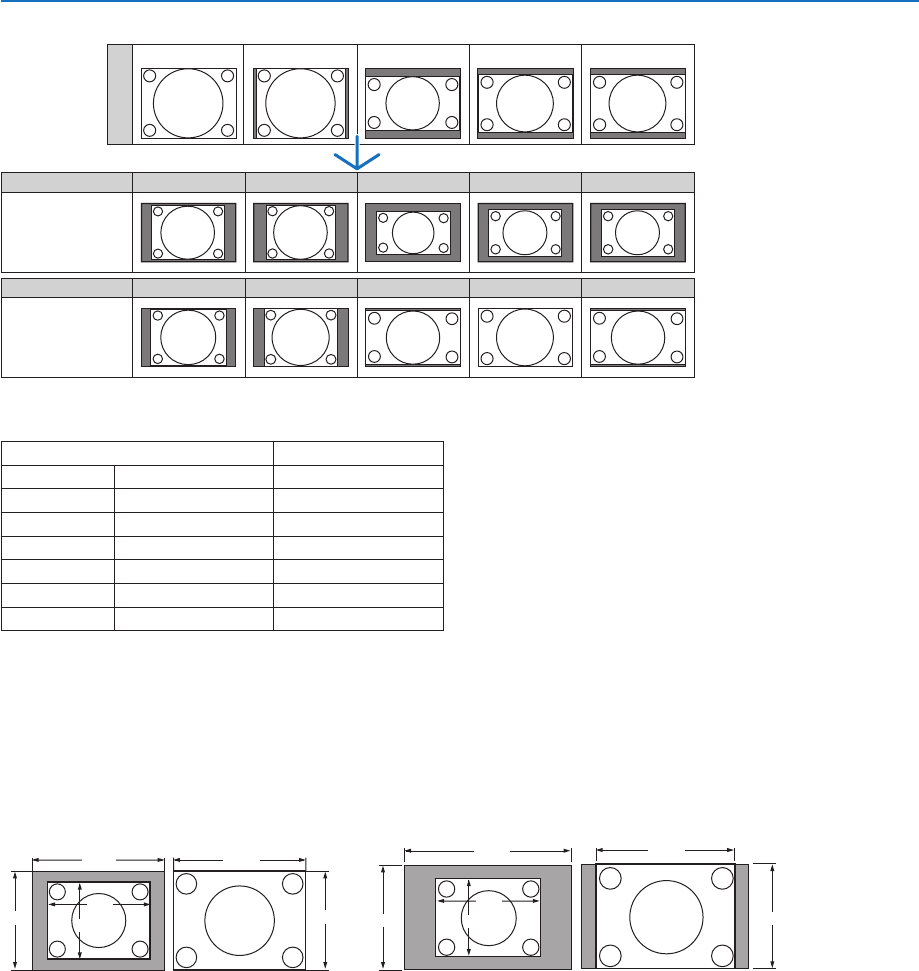

6. Using On-Screen Menu
RGB
INPUTSIGNAL
ASPECT RATIO
ASPECT RATIO
WIDE SCREEN
4:3 SCREEN
4:3
4:3
4:3
16:9
16:9
5:4
5:4
16:9 15:9
15:9
15:95:4
16:10
16:10
16:10
Typical resolutions and aspect ratios for computer screens.
Resolution Aspect Ratio
VGA 640 x 480 4:3
SVGA 800 x 600 4:3
XGA 1024 x 768 4:3
SXGA 1280 x 1024 5:4
WXGA 1280 x 768 15:9
WXGA 1280 x 800 16:10
UXGA 1600 x 1200 4:3
Selecting Resolution [RESOLUTION]
[AUTO]: Displays an RGB signal to fit the screen in the projector’s native resolution (NP3150/NP2150/NP1150:
1024 x 768 pixels/NP3151W: 1280 x 800 pixels).
[NATIVE]: Displays an RGB signal in its true resolution.
Example: When a source with 800 x 600 pixels is selected.
NP3150/NP2150/NP1150 NP3151W
[NATIVE] [AUTO] [NATIVE] [AUTO]
1024
768
1024
768
600
800
1066
1280
800
800
600
800
• When [NATIVE] is selected, [OVERSCAN] and [ASPECT RATIO] are not available.
• [RESOLUTION] is not available under the following conditions:
- When [SCREEN TYPE] is set for the resolution other than the projector’s native resolution.
- When a signal other than RGB is selected.
- When a signal with a higher resolution than the projector’s native resolution is displayed.
