Installation and Setup Guide
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX602UL/PX602WL Page 1 of 13
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes Pg 1
Distance Charts and Formulas Pg 2-5
Ceiling Mount/Desktop Installation Pg 6
Lens Shift Adjustable Range Pg 7
Cabinet Dimensions Pg 8
Cabinet Dimensions Pg 9
Ventilation Requirements Pg 10
Input Panel and Button Panel Pg 11
Control Codes Pg 12

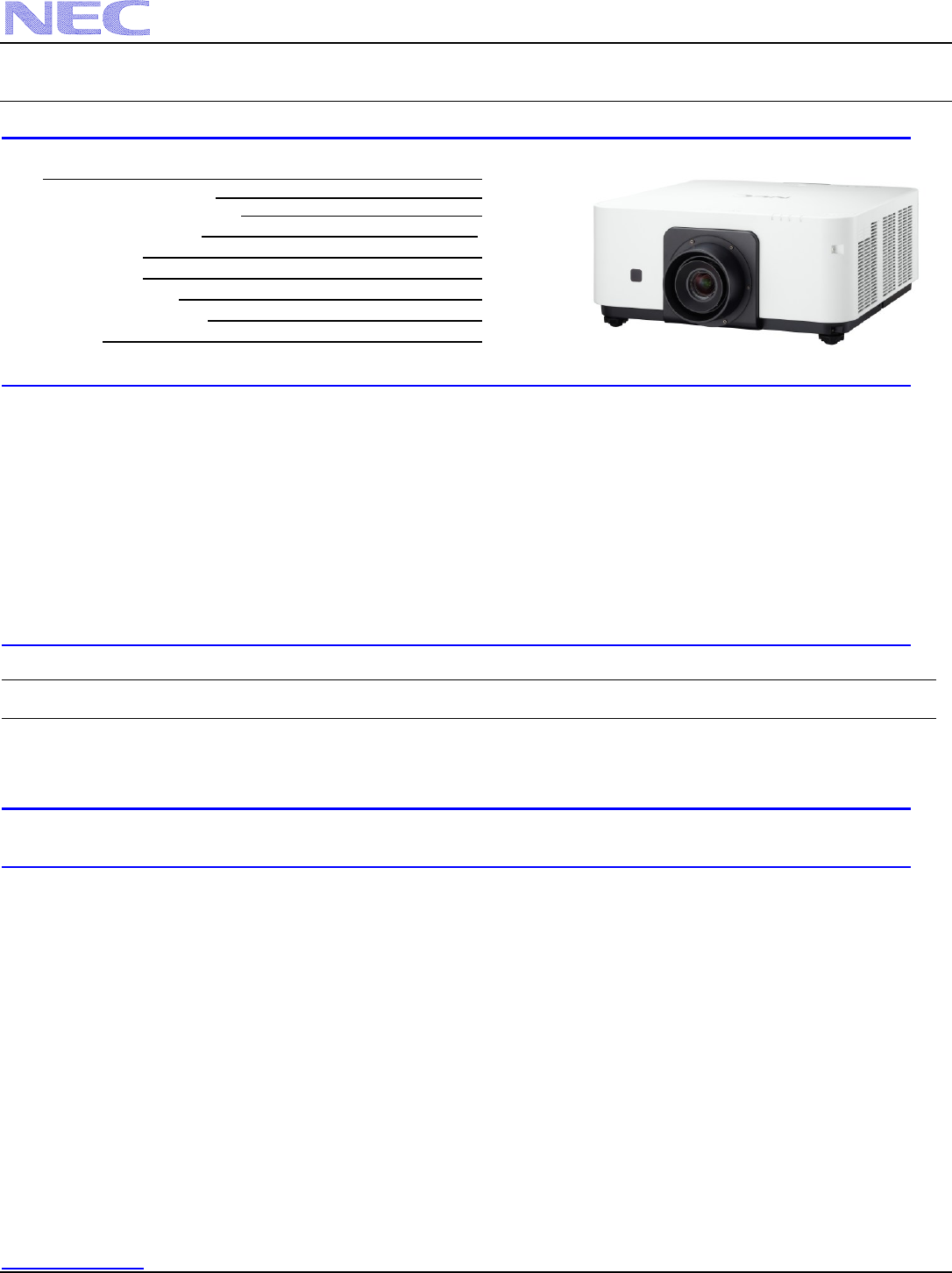

Product Description
Type: 1 chip DMD Reflection Type Dimensions: 19.84”(W) x 8.67”(H) x 20.55”(D)
PX602UL: 0.67 in. 2x LVDS DMD Weight: PX Series: 19.7kg / 43.3 lbs
PX602WL: 0.65 in. 2x LVDS DMD
Resolution: PX602UL: 1920 x 1200 (16:10) Brightness: PX602UL: 6000 Lumens
PX602WL: 1280 x 800 (16:10) PX602WL: 6000 Lumens
Fan Noise: PX Series: 39 dB / 34dB @ 1 meter
Power Consumption: PX Series: 530W (max) BTU’s: PX Series: 1810.05 BTU/hour
Network Ready, integrated wired networking
Power: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP33ZL: Throw Ratio: ~ 0.75-0.95:1 Focal Length: 11.4mm NP37ZL: Throw Ratio: 1.60 -3.07:1 Focal Length: 22.6 – 42.9mm
Screen Sizes: 50”-300” F/#: 2.3 – 2.57 Screen Sizes: 50” - 300” F/#: 2.3 – 2.39
NP34ZL: Throw Ratio: ~1.00 - 1.28:1 Focal Length: 14.0 – 18.0mm NP38ZL: Throw Ratio: 2.9 -5.5:1 Focal Length: 22.6 – 42.9mm
Screen Sizes: 50” - 300” F/#: 2.3 – 2.57 Screen Sizes: 50” - 300” F/#: 2.3 – 2.39
NP36ZL: Throw Ratio: ~1.28 – 1.61:1 Focal Length: 18.1 – 22.6mm
Screen Sizes: 50” – 300 ” F/#: 2.0 – 2.32
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
