Installation and Setup Guide

NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX602UL/PX602WL Page 6 of 13

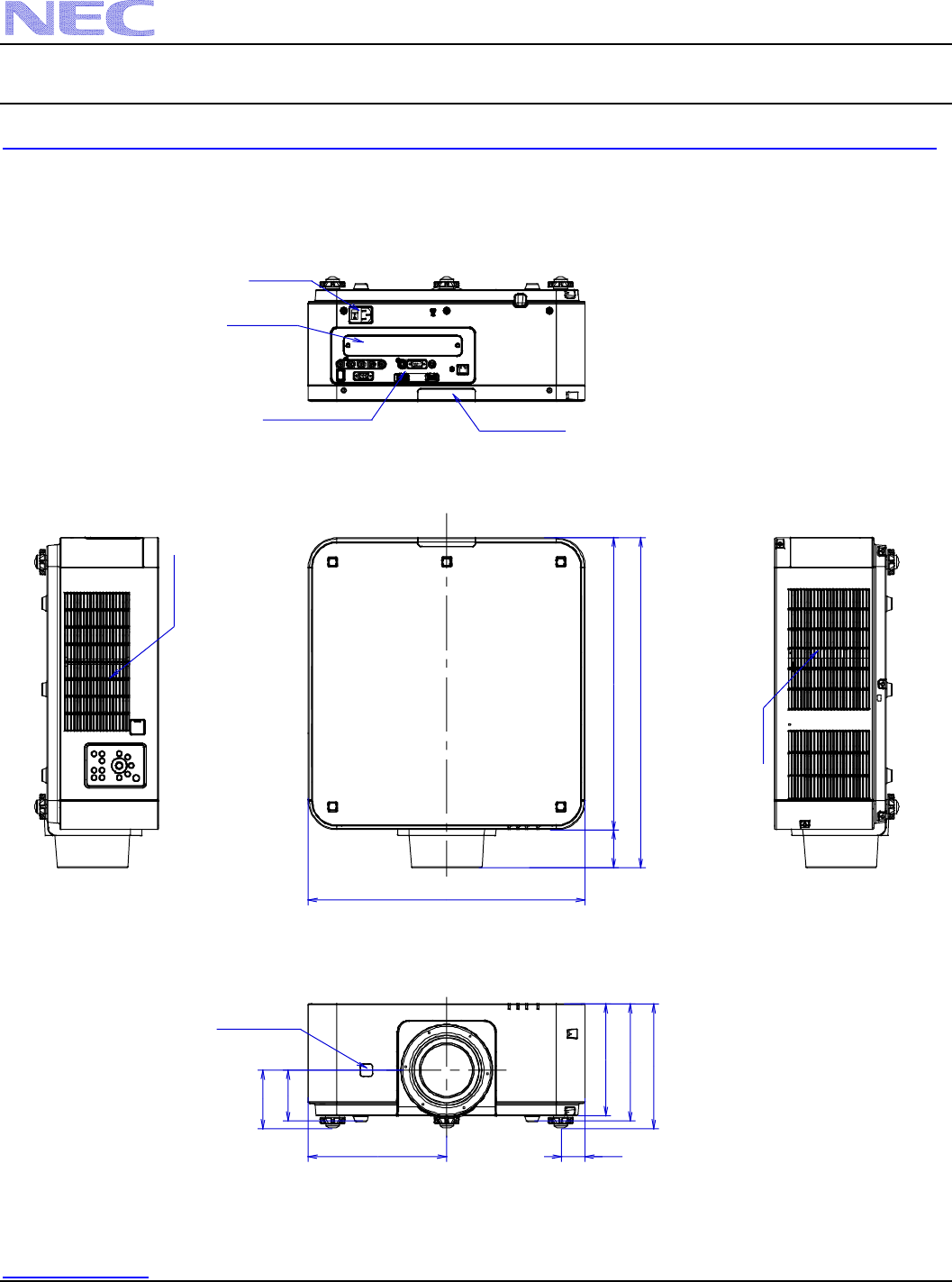

Cabinet Dimensions
The following diagrams show the cabinet dimensions for the PX602UL_PX602WL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown with the NP35ZL lens
20.042.57
22.61
19.07
3.48
3.97
7.68
8.07
8.56
9.53 1.66
IR RECEIVER
AC INLET
TERMINAL PANEL
IR RECEIVER
OPS SLOT
INTAKE
EXHAUST
