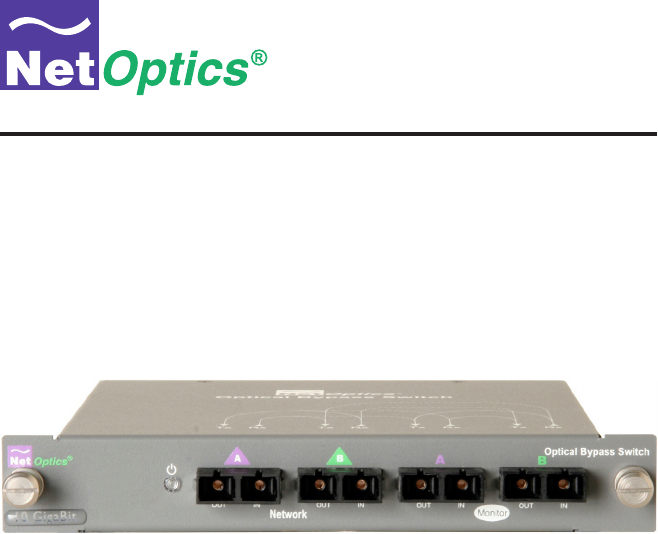

Installation Guide for 10 GigaBit Optical Bypass Switch 800-0167-001 Doc. Rev.
I0 GigaBit Optical Bypass Switch Contents Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I0 GigaBit Optical Bypass Switch PLEASE READ THESE LEGAL NOTICES CAREFULLY. By using a Net Optics Optical Bypass Switch you agree to the terms and conditions of usage set forth by Net Optics, Inc. No licenses, express or implied, are granted with respect to any of the technology described in this manual. Net Optics retains all intellectual property rights associated with the technology described in this manual. This manual is intended to assist with installing Net Optics products into your network.
10 GigaBit Optical Bypass Switch Introduction Net Optics 10 GigaBit Optical Bypass Switches provide a permanent and trouble-free access port for in-line network security and monitoring devices. The Optical Bypass Switch automatically switches network traffic through added in-line devices or bypasses devices that are about to be removed. Prevent link failure when attached IPS and IDS devices lose power by powering the Bypass Switch and in-line device from the same power source.
10 GigaBit Optical Bypass Switch Key Features Passive, Secure Technology • Fail-safe monitoring with any 10 GigaBit fiber in-line appliance at speeds of 10 Gbps • Increased reliability on critical network links • High-speed optical switching with minimal insertion loss • Fully RoHS compliant Ease of Use • • • • LED indicator shows power status Front-mounted connectors support easy installation and operation Cables included for plug-and-play deployment Silk-screened application diagram illustrates all con
10 GigaBit Optical Bypass Switch Product Diagrams Figure 1: BPO-50SR Connectors and Application Diagram Figure 2: Front Panel 3
10 GigaBit Optical Bypass Switch Power Loss Bypass The Optical Bypass Switch protects link integrity when the in-line appliance loses power. When the Bypass Switch is receiving power it is in Bypass Disabled (OFF) mode. In Bypass Disabled mode the switch sends network traffic through the connnected device. Figure 3: Bypass Disabled Mode When power to switch fails, it enters Bypass Enabled (ON) mode and network traffic bypasses the connected device until power to the switch is restored.
10 GigaBit Optical Bypass Switch Unpack Bypass Unpack the Optical Bypass Switch, power supply, and cables provided. Each Optical Bypass Switch is delivered with the following: • 1 Power supply and cable • 2 Duplex SC fiber cables • 1 Manual You may have also ordered an extended warranty. Carefully check the packing slip against parts received. If any component is missing or damaged, contact Net Optics Customer Service immediately.
GigaBit Optical Bypass Switch Connecting to the Network 1. Connect Network Port A to the appropriate switch, server or router device. 2. Connect Network Port B to the appropriate switch, server or router device. 3. Verify that the Bypass Switch Network Ports are cabled in-line between two devices.
10 GigaBit Optical Bypass Switch Connecting to the In-line Security Device 1. Connect Monitoring Port A to the in-line appliance using a duplex SC fiber cable. 2. Connect Monitoring Port B to the in-line appliance using a duplex SC fiber cable. 4. Connect power to the Bypass Switch and to a power source on the in-line device or other shared power source. 3. Verify that the in-line device is receiving traffic from the Bypass Switch.
10 GigaBit Optical Bypass Switch Specifications Optical Interface Laser Class Class I, eye-safe, laser emitter type. These Class I Lasers conform to the applicable requirements per US 21 CFR (J) and EN 60825-1, also UL 1950 applications. Fiber Type Multimode Corning 50 or 62.5 /125µm, wavelength 850nm Singlemode Corning 8.
10 GigaBit Optical Bypass Switch Limitations on Warranty and Liability Net Optics offers a limited warranty for all its products. IN NO EVENT SHALL NET OPTICS, INC. BE LIABLE FOR ANY DAMAGES INCURRED BY THE USE OF THE PRODUCTS (INCLUDING BOTH HARDWARE AND SOFTWARE) DESCRIBED IN THIS MANUAL, OR BY ANY DEFECT OR INACCURACY IN THIS MANUAL ITSELF.
10 GigaBit Optical Bypass Switch Notes: 10
