ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using IPsec 6-25
v1.0, July 2008
1. Select VPN > IPsec VPN from the main/submenu.
2. Click the RADIUS Client tab and the RADIUS Client screen displays.
3. To activate (enable) the Primary RADIUS server, click the Ye s radio button. The primary
server options become active.
4. Configure the following entries:
• Primary RADIUS Server IP address. The IP address of the RADIUS server.
• Secret Phrase. Transactions between the client and the RADIUS server are authenticated
using a shared secret phrase, so the same Secret Phrase must be configured on both client
and server.
• Primary Server NAS Identifier (Network Access Server). This Identifier MUST be
present in a RADIUS request. Ensure the NAS Identifier is configured identically on both
client and server.

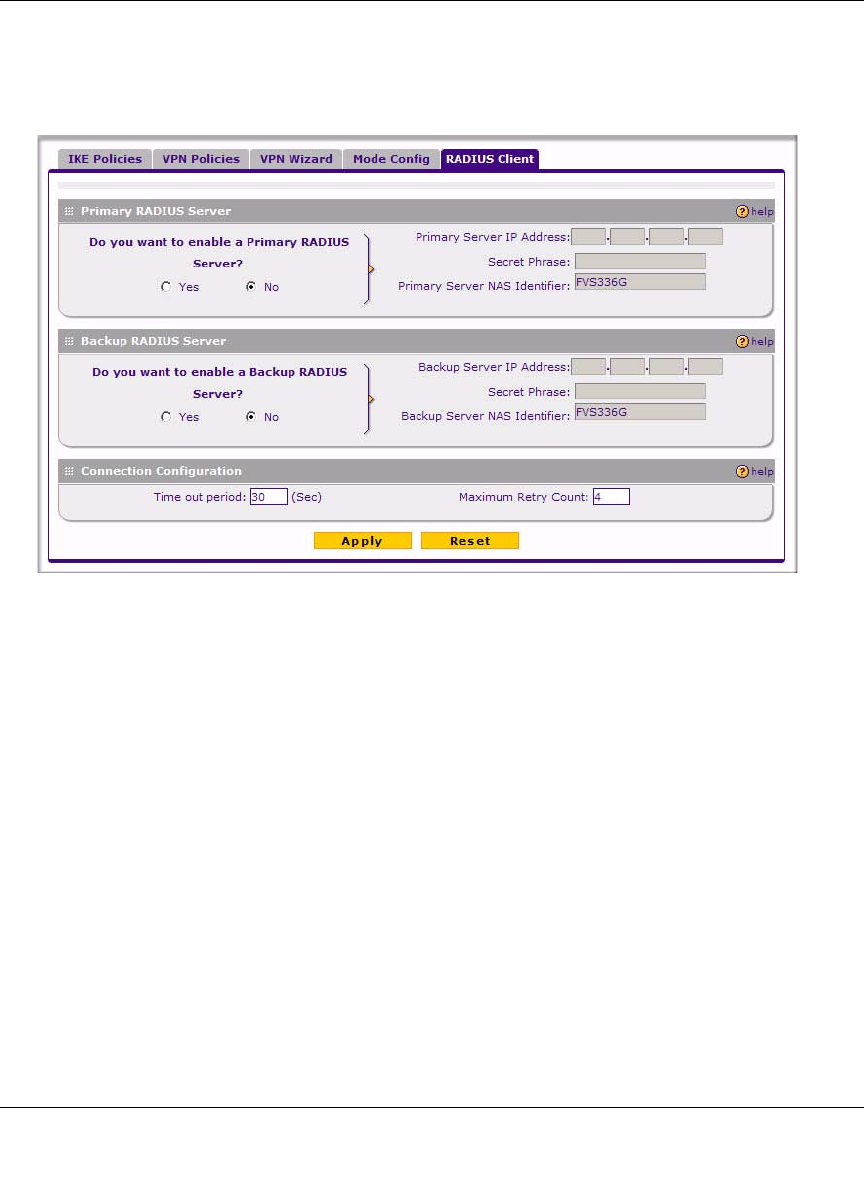

Figure 6-12Need new sceenshot
