User's Manual

XAVN2001 Powerline AV 200 Wireless-N Extender User Manual
Installation and Basic Configuration 1-5
v1.0, July 2010
Installing Your Powerline AV Ethernet Adapter
Prepare for installation:
1. Before you begin, verify the following:
• Your Ethernet network is set up.
• An Ethernet port is available on your router.
• Your Internet connection is working.
• An Ethernet port is available on each computer that will use a Powerline AV 200 Wireless-
N Extender and is configured to work on your network. Usually, the default configuration
settings (TCP/IP and DHCP) are fine.
2. Familiarize yourself with the Powerline AV 200 Wireless-N Extender.
The front panel has three lights: Power, Powerline, and Ethernet. The side panel has a Security
button, and a Reset button. The Ethernet port is located on the bottom of the adapter. See
Figure 1-2 on page 1-2.
3. Plan the location of your Powerline devices:
• Use an electrical outlet that is not controlled by a wall
switch to avoid someone unknowingly turning off the
power to the outlet.

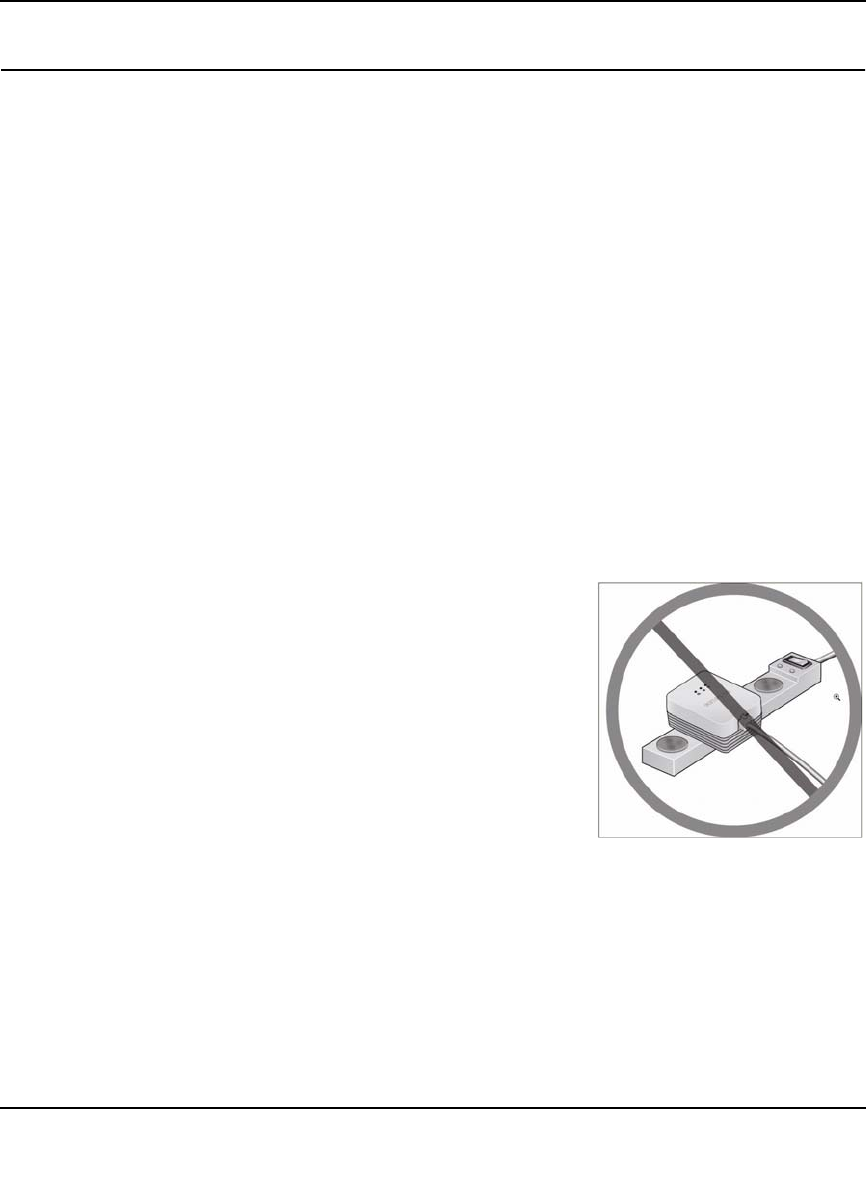

• Do not connect the Powerline AV 200 Wireless-N
Extender to a power strip, extension cord, or surge
protector as this might prevent it from working
correctly, or reduce the network performance.
• Avoid using the Powerline AV 200 Wireless-N Extender
in an electrical outlet that is located near an appliance
that uses a lot of power, such as a washer or dryer, or a
refrigerator. This could potentially prevent the adapter
from working correctly, or reduce network
performance.
