Chapter 6: Virtual Private Networking Using SSL | 115
New Template Style Guide Reference Manual

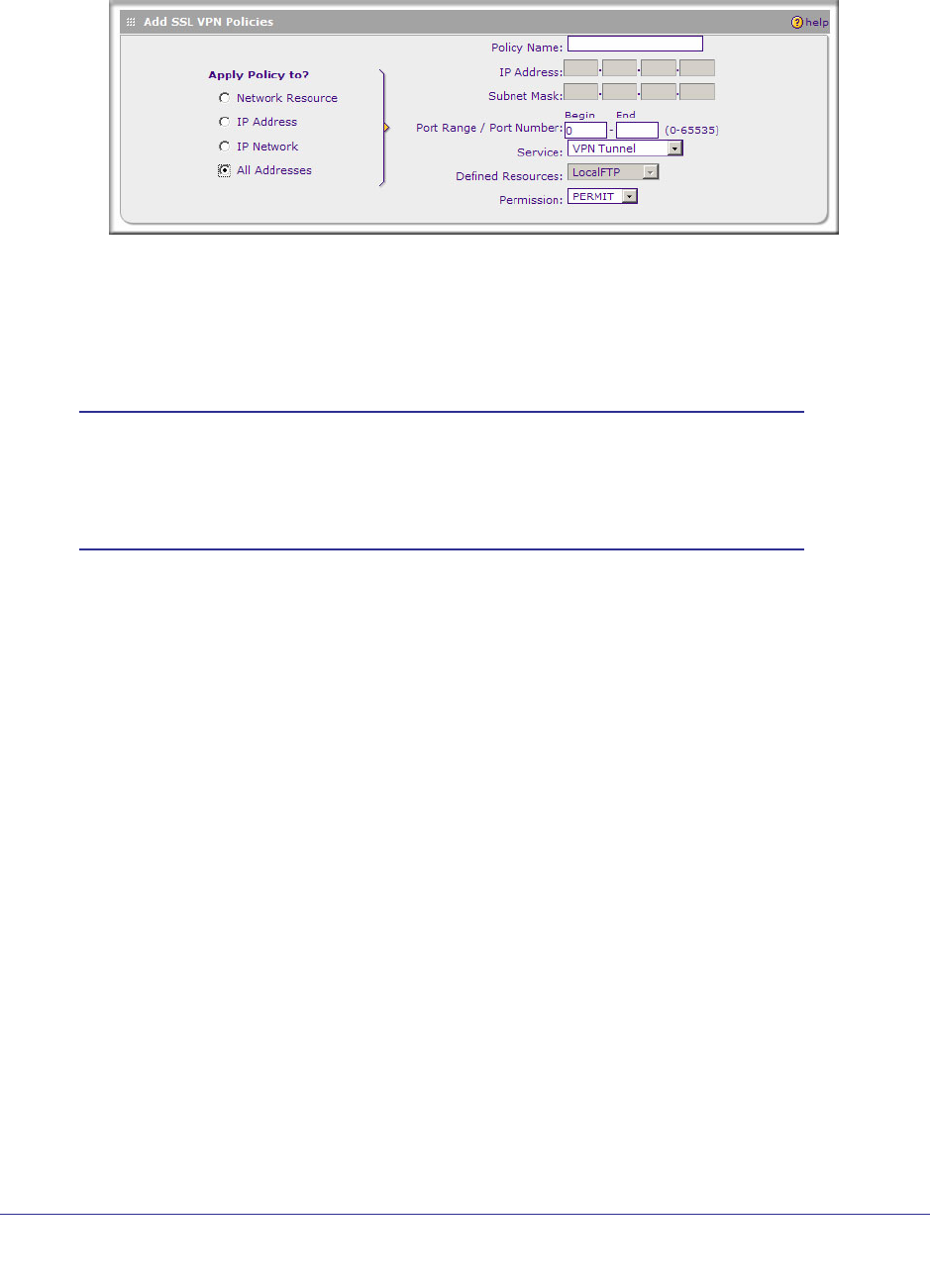

• If you choose All Addresses, you will need to enter a descriptive Policy Name, then
choose the Service and relevant Permission from the drop-down lists.
5. When you are finished making your selections, click Apply. The Policies screen
reappears.
Your policy goes into effect immediately and is added to the policies in the List of SSL VPN
Policies table on this screen.
Note: In addition to configuring SSL VPN user policies, be sure that
HTTPS remote management is enabled. Otherwise, all SSL VPN
user connections will be disabled. See “Enabling Remote
Management Access” on page 139.
