12 | Chapter 1: Introduction
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Rear Panel Features
The rear panel of the FVS336Gv2 includes Gigabit Ethernet LAN and WAN connections, a
cable lock receptacle, power and reset switches, and an AC power connection.

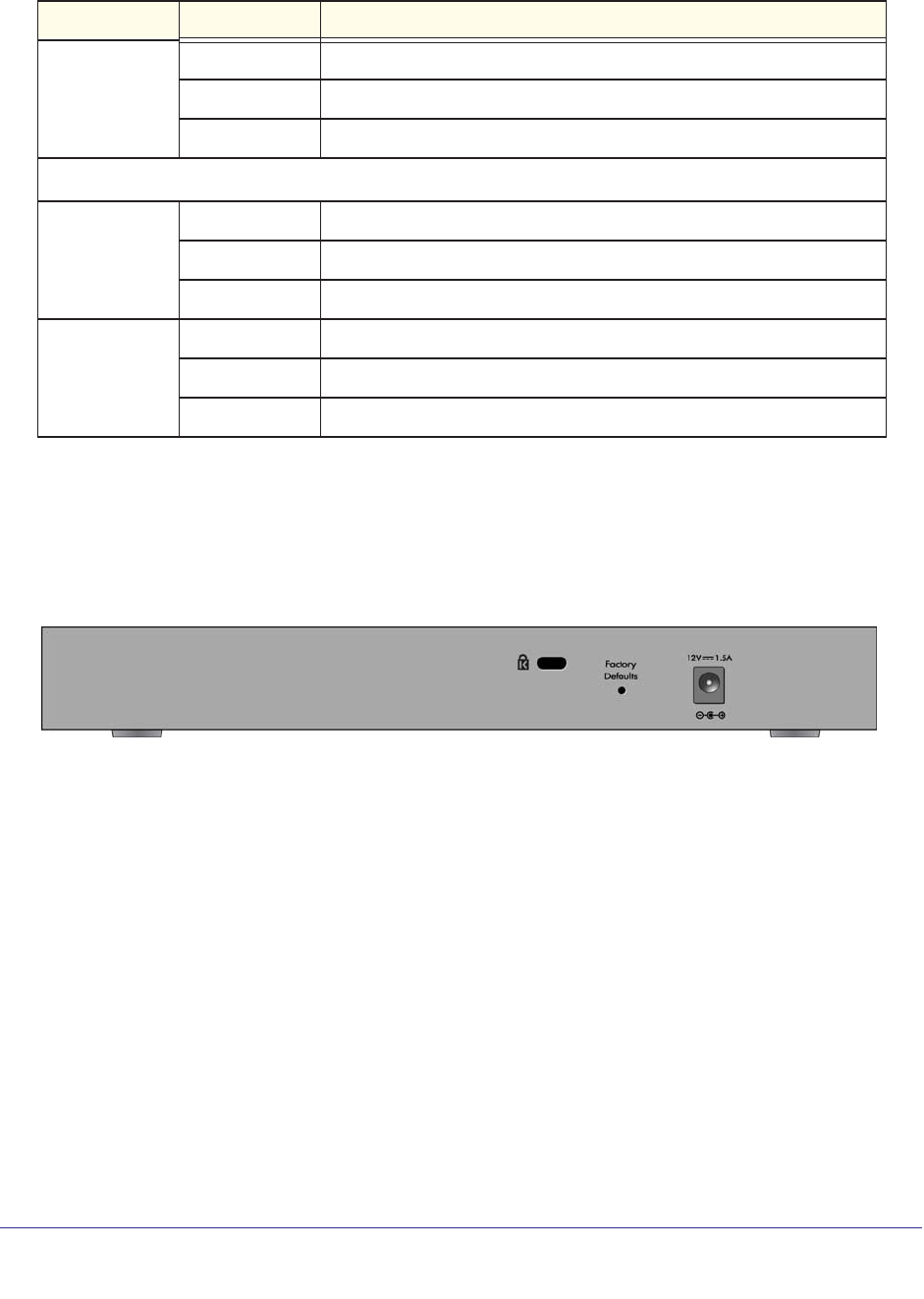

Figure 1-2 Rear Panel
Viewed from left to right, the rear panel contains the following elements:
• Cable security lock receptacle.
• Factory Defaults button: Using a sharp object, press and hold this button for about ten
seconds until the front panel TEST light flashes to reset the FVS336Gv2 to factory default
settings. All configuration settings will be lost and the default password will be restored.
• AC power receptacle: Universal AC input (100-240 VAC, 50-60 Hz).
Default IP Address, Login Name, and Password
Location
Check the label on the bottom of the network storage’s enclosure if you need a reminder of
LINK/ACT
(Link and
Activity)
On (Green)
The WAN port has detected a link with a connected Ethernet device.
Blinking (Green)
Data is being transmitted or received by the WAN port.
Off
The WAN port has no link.
LAN Ports
SPEED
On (Green)
The LAN port is operating at 1,000 Mbps.
On (Amber)
The LAN port is operating at 100 Mbps.
Off
The LAN port is operating at 10 Mbps.
LINK/ACT
(Link and
Activity)
On (Green)
The LAN port has detected a link with a connected Ethernet device.
Blinking (Green)
Data is being transmitted or received by the LAN port.
Off
The LAN port has no link.
Table 1-1. LED Descriptions (Continued)
Object Activity Description
