122 | Chapter 7: Managing Users, Authentication, and Certificates
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
3. To prohibit this user from logging in from the WAN interface, select the Deny Login
from WAN Interface checkbox. In this case, the user can log in only from the LAN
interface.
Note: For security reasons, Deny Login from WAN Interface is checked
by default for admin and guest.
4. Click Apply to save your settings.
To restrict logging in based on IP address:
1. In the Action column of the List of Users table, click Policies adjacent to the user
policy you want to configure. The Login Policies screen is displayed.

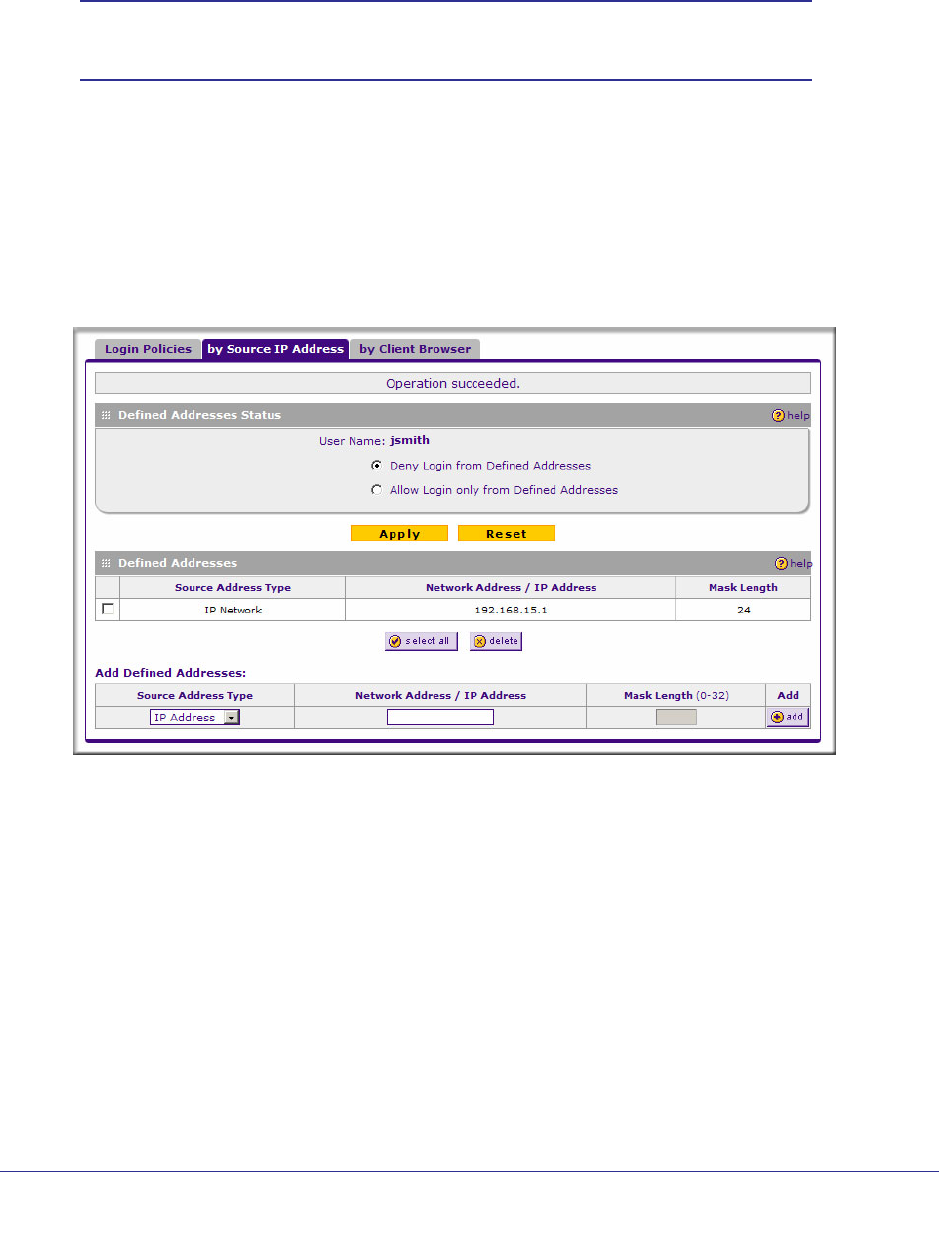

2. Select the by Source IP Address tab. The by Source IP Address screen is displayed.
3. In the Defined Addresses Status section, select one of the following radio boxes:
• The Deny Login from Defined Addresses radio box to deny logging in from the IP
addresses that you will specify
• The Allow Login only from Defined Addresses radio box to allow logging in from
the IP addresses that you will specify.
4. Click Apply.
5. To specify a single IP address, select IP Address from the Source Address Type
drop-down list and enter the IP address in the Network Address/IP address field.
6. To specify a subnet of IP addresses, select IP Network from the Source Address Type
drop-down list. Enter the network address and netmask length in the Network
Address/IP address field.
7. Click Add to move the defined address to the Defined Addresses table.
