ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Viewing and Loading CA Certificates
The Trusted Certificates (CA Certificates) table lists the certificates of CAs and contains the
following data:
• CA Identity (Subject Name). The organization or person to whom the certificate is
issued.
• Issuer Name. The name of the CA that issued the certificate.
• Expiry Time. The date after which the certificate becomes invalid.
To view the VPN Certificates:

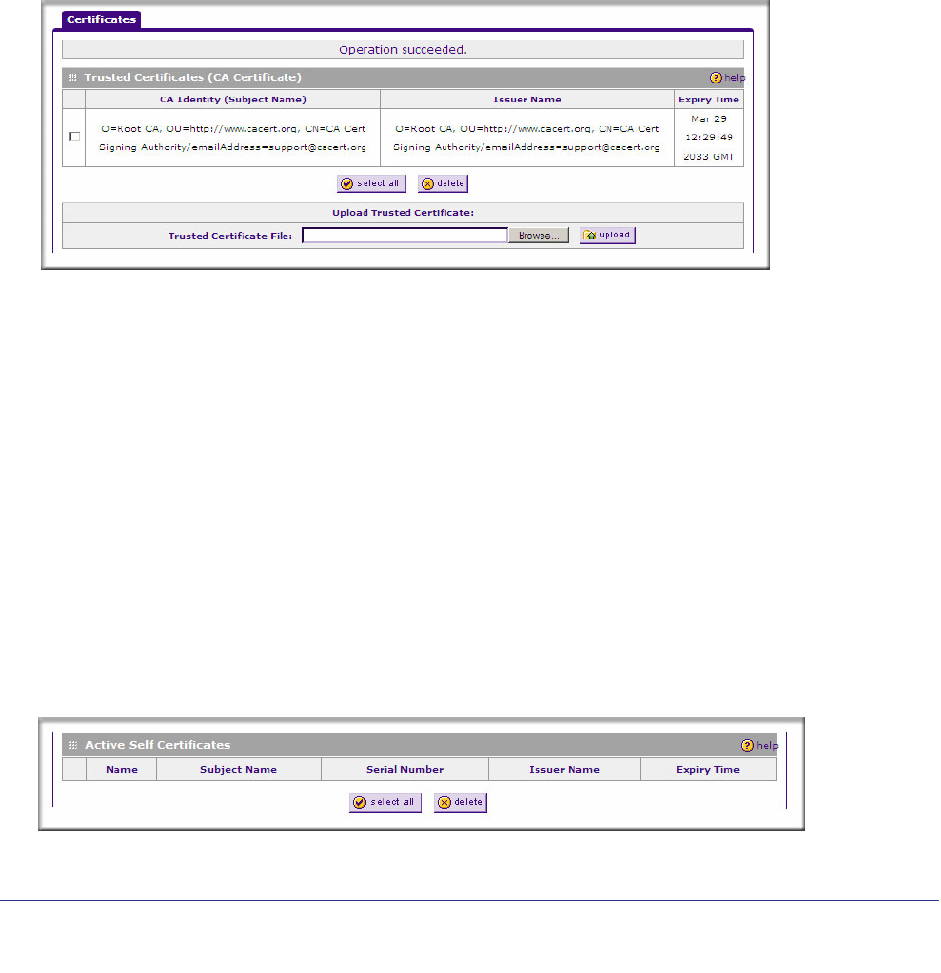

Select VPN > Certificates from the menu. The top section of the Certificates screen displays
the Trusted Certificates (CA Certificates).
When you obtain a self certificate from a CA, you will also receive the CA certificate. In
addition, many CAs make their certificates available on their Websites.
To load a CA certificate into your VPN firewall:
1. Store the CA certificate file on your computer.
2. Under Upload Trusted Certificates in the Certificates menu, click Browse and locate
the CA certificate file.
3. Click Upload. The CA Certificate will appear in the Trusted Certificates (CA
Certificates) table.
Viewing Active Self Certificates
The Active Self Certificates table on the Certificates screen shows the certificates issued to
you by a CA and available for use.
