130 | Chapter 7: Managing Users, Authentication, and Certificates
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

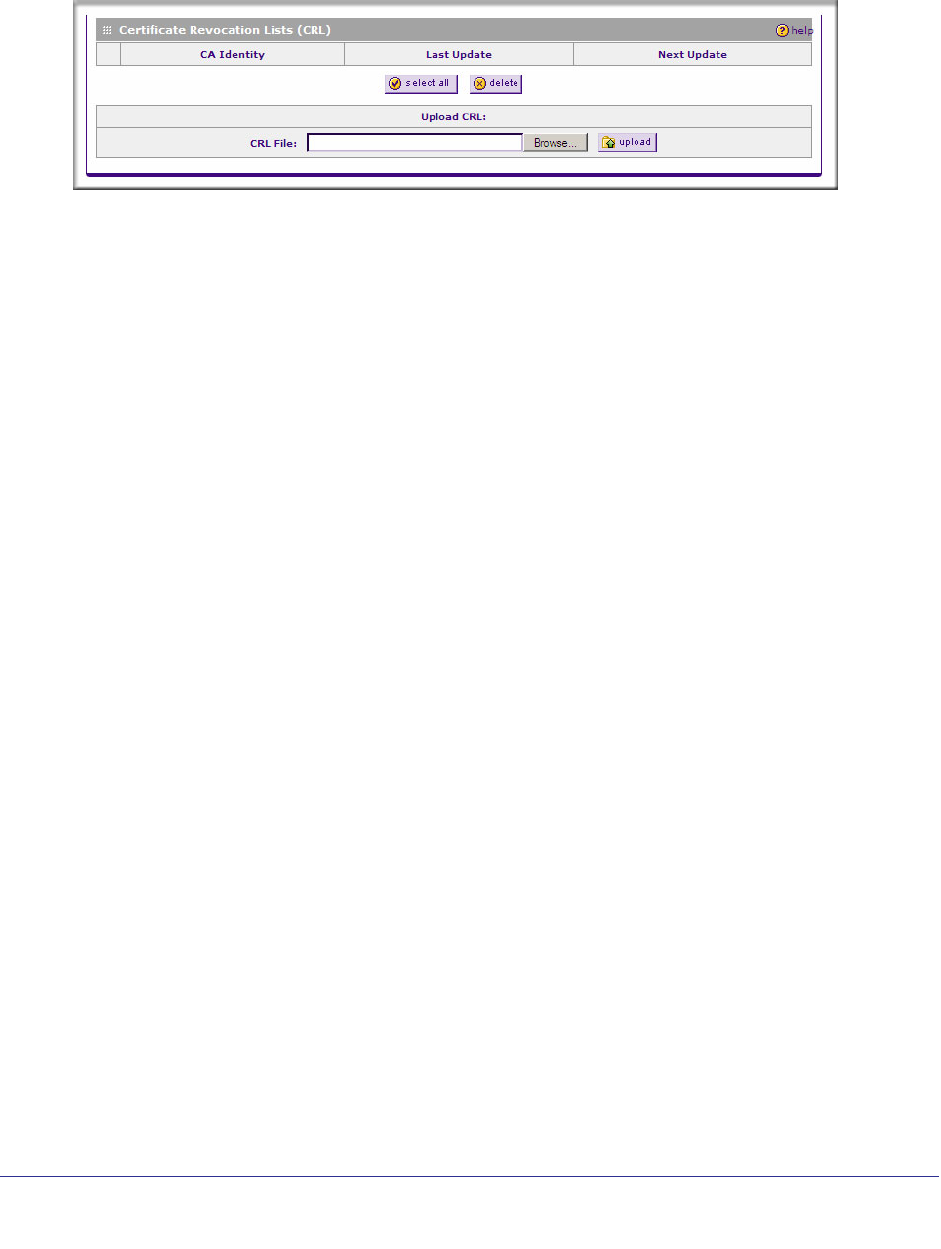

To view your currently-loaded CRLs and upload a new CRL:
1. Locate the Certificate Revocation Lists (CRL) table at the bottom of the Certificates
screen.
The CRL table lists your active CAs and their critical release dates:
• CA Identify – The official name of the CA which issued this CRL.
• Last Update – The date when this CRL was released.
• Next Update – The date when the next CRL will be released.
2. Click Browse and locate the CRL file you previously downloaded from a CA.
3. Click Upload. The CRL file is uploaded and the CA Identity appears in the Certificate
Revocation Lists (CRL) table. Any previous CA Identity from the same CA is deleted.
