138 | Chapter 8: VPN Firewall and Network Management
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

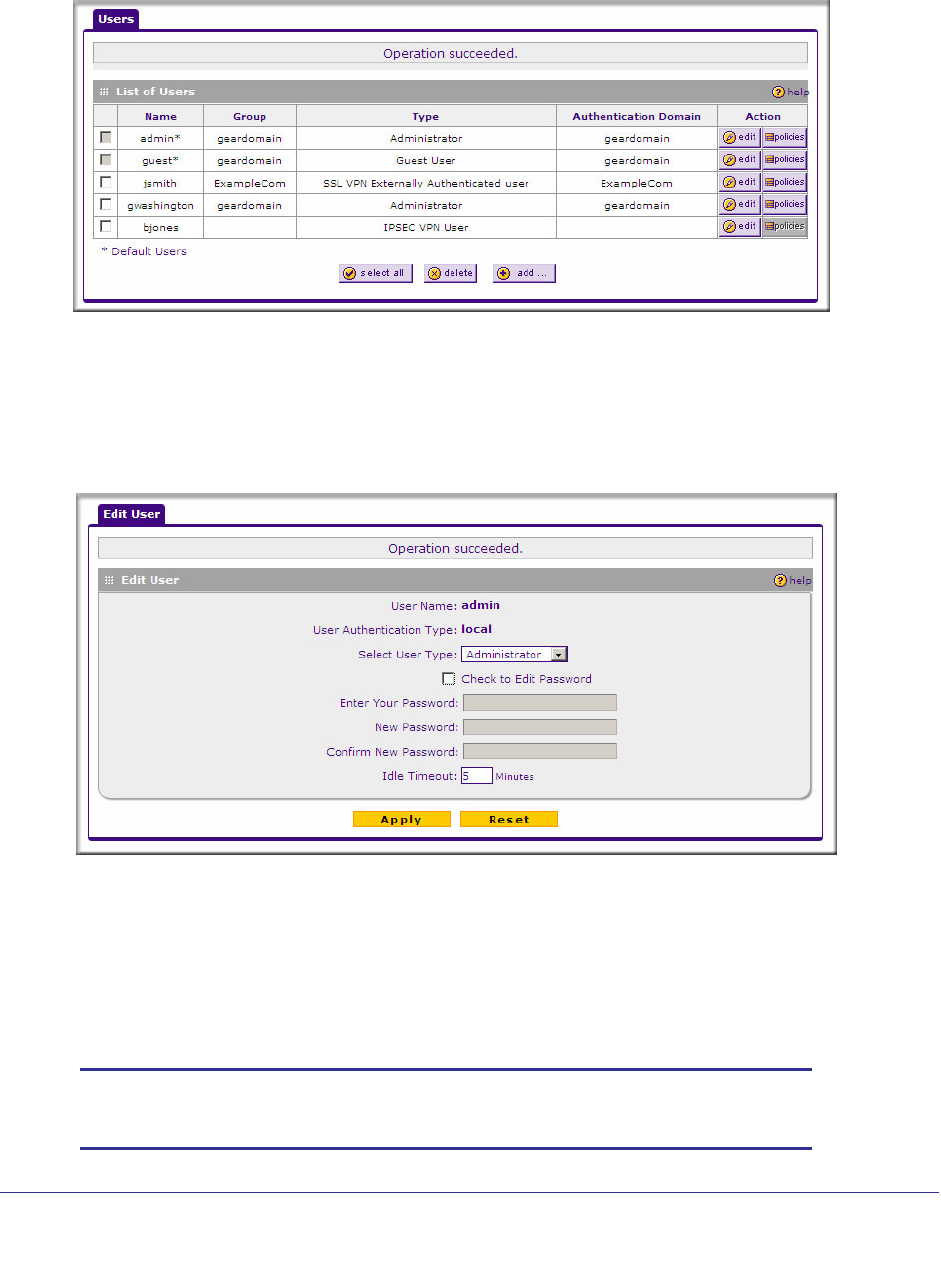

To modify the Admin user account settings, including the password:
1. Select Users > Users from the menu.
2. Select the checkbox next to admin in the Name column, then click Edit in the Action
column.
The Edit User screen is displayed, with the current settings for Administrator in the Select
User Type drop-down list (for more information about the different types of users, see
“Changing Passwords and Other User Settings” on page 123).
3. Select the Check to Edit Password checkbox. The password fields become active.
4. Enter the old password, then enter the new password twice.
5. (Optional) To change the idle timeout for an administrator login session, enter a new
number of minutes in the Idle Timeout field.
6. Click Apply to save your settings or Reset to return to your previous settings.
Note: After a factory default reset, the password and timeout value will be
changed back to password and 10 minutes, respectively.
