Chapter 8: VPN Firewall and Network Management | 139
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Enabling Remote Management Access
Using the Remote Management screen, you can allow an administrator on the Internet to
configure, upgrade, and check the status of your VPN firewall. You must be logged in locally
to enable remote management (see “Logging into the VPN Firewall” on page 15).
Note: Be sure to change the default configuration password of the VPN
firewall to a very secure password. The ideal password should
contain no dictionary words from any language, and should be a
mixture of letters (both upper and lower case), numbers, and
symbols. Your password can be up to 30 characters. (See
“Changing Passwords and Other User Settings” on page 123.)
To configure your VPN firewall for remote management:

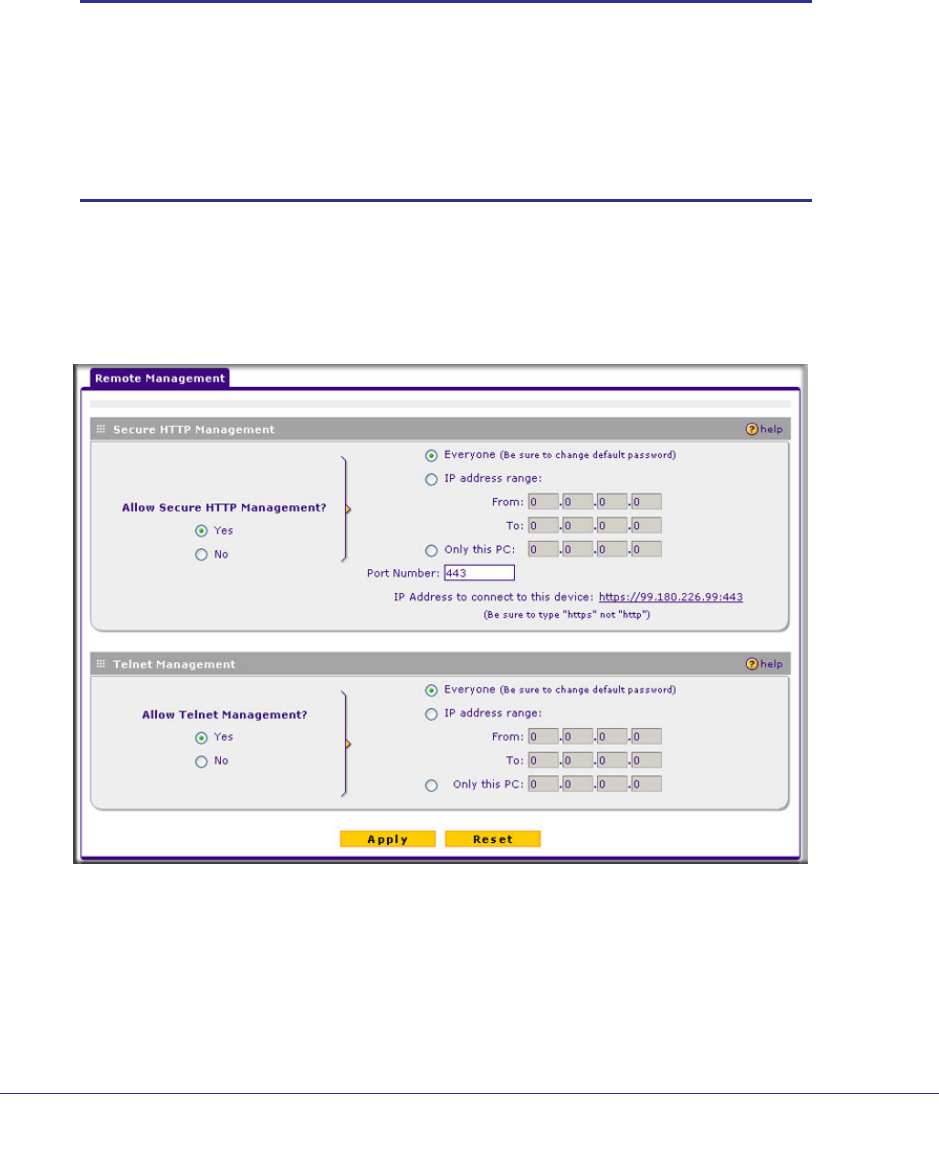

1. Select Administration > Remote Management from the menu. The Remote
Management screen is displayed.
2. Click the Yes radio button to enable secure HTTP management (enabled by default),
and configure the external IP addresses that will be allowed to connect.
a. To allow access from any IP address on the Internet, select Everyone.
b. To allow access from a range of IP addresses on the Internet, select IP address
range.
Enter a beginning and ending IP address to define the allowed range.
