142 | Chapter 8: VPN Firewall and Network Management
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

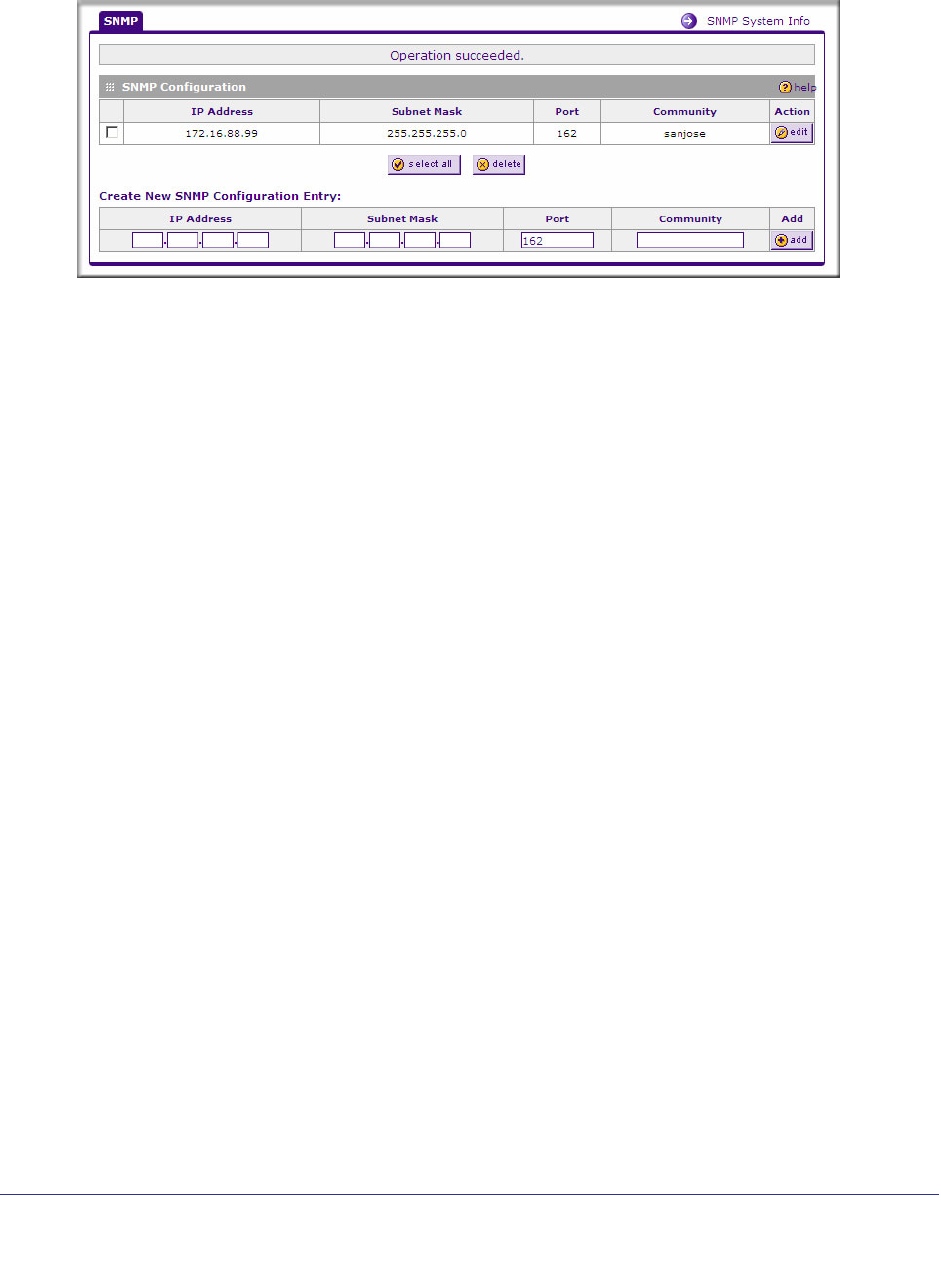

To create a new SNMP configuration entry:
1. Select Administration > SNMP from the menu. The SNMP screen is displayed.
2. Configure the following fields in the Create New SNMP Configuration Entry section:
a. Enter the IP address of the SNMP manager in the IP Address field and the subnet
mask in the Subnet Mask field.
- To allow only the host address to access the VPN firewall and receive traps, enter an
IP Address of, for example, 192.168.1.101 with a subnet mask of 255.255.255.255.
- To allow a subnet access to the VPN firewall through SNMP, enter an IP address of,
for example, 192.168.1.101 with a subnet mask of 255.255.255.0. The traps will still
be received on 192.168.1.101, but the entire subnet will have access through the
community string.
- To make the VPN firewall globally accessible using the community string, but still
receive traps on the host, enter 0.0.0.0 as the subnet mask and an IP address for
where the traps will be received.
b. Enter the trap port number of the configuration in the Port field. The default is 162.
c. Enter the trap community string of the configuration in the Community field.
3. Click Add to create the new configuration. The entry is displayed in the SNMP
Configuration table.
To modify an SNMP configuration, click Edit in the Action column adjacent to the entry that
you wish to modify.
