Chapter 8: VPN Firewall and Network Management | 143
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
To modify the SNMP identification information:

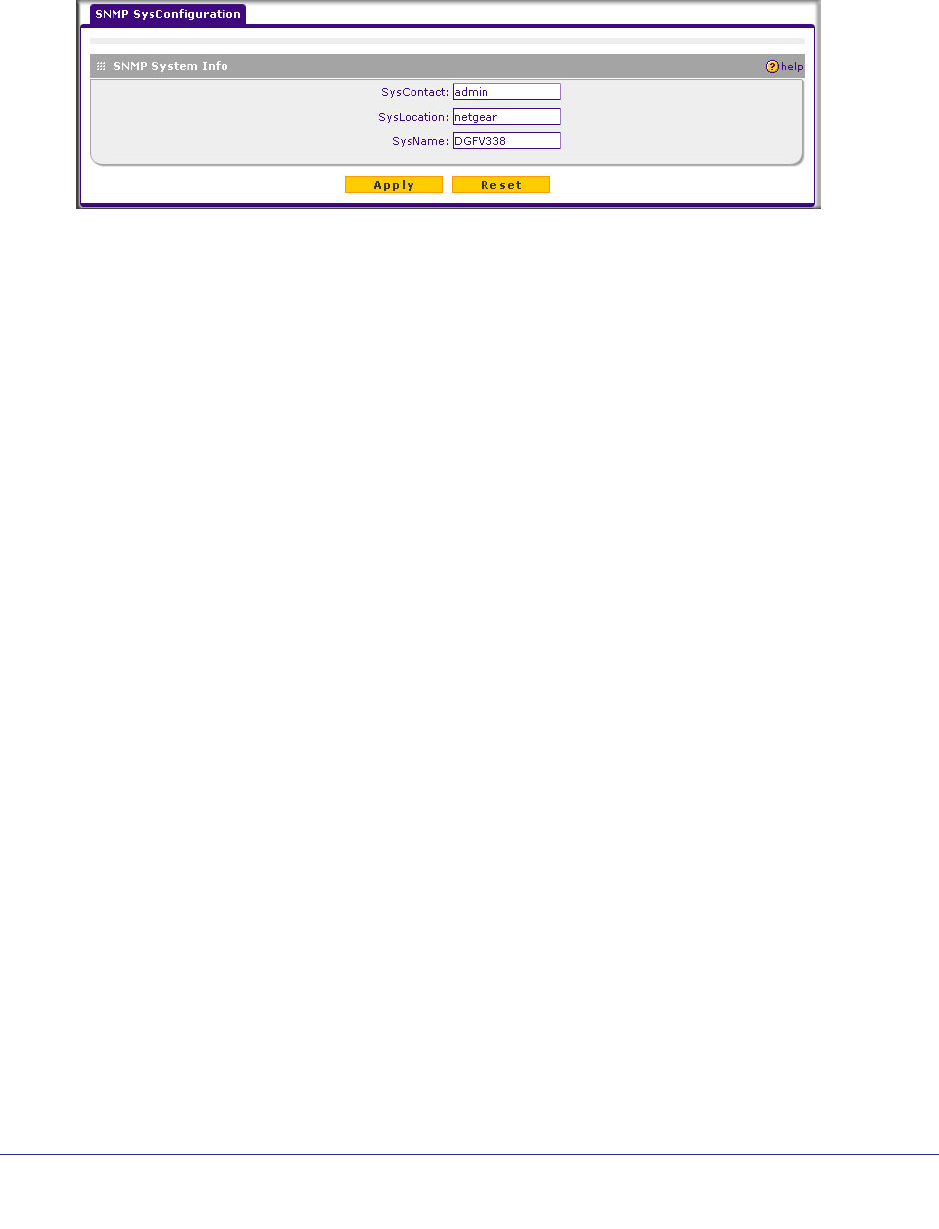

1. The SNMP System Info option arrow at the top of the tab opens the SNMP
SysConfiguration screen that displays the SNMP system contact information available
to the SNMP manager.
2. Modify any of the information that you want the SNMP Manager to use. You can edit the
system contact, system location, and system name.
3. Click Apply to save your settings.
Managing the Configuration File
The configuration settings of the VPN firewall are stored within the firewall in a configuration
file. This file can be saved (backed up) to a user’s PC, retrieved (restored) from the user’s
PC, or cleared to factory default settings.
Once you have installed the VPN firewall and have it working properly, you should back up a
copy of your settings to a file on your computer. If necessary, you can later restore the VPN
firewall settings from this file. The Settings Backup and Firmware Upgrade screen allows you
to:
• Back up and save a copy of your current settings
• Restore saved settings from the backed-up file.
• Revert to the factory default settings.
• Upgrade the VPN firewall firmware from a saved file on your hard disk to use a different
firmware version.
