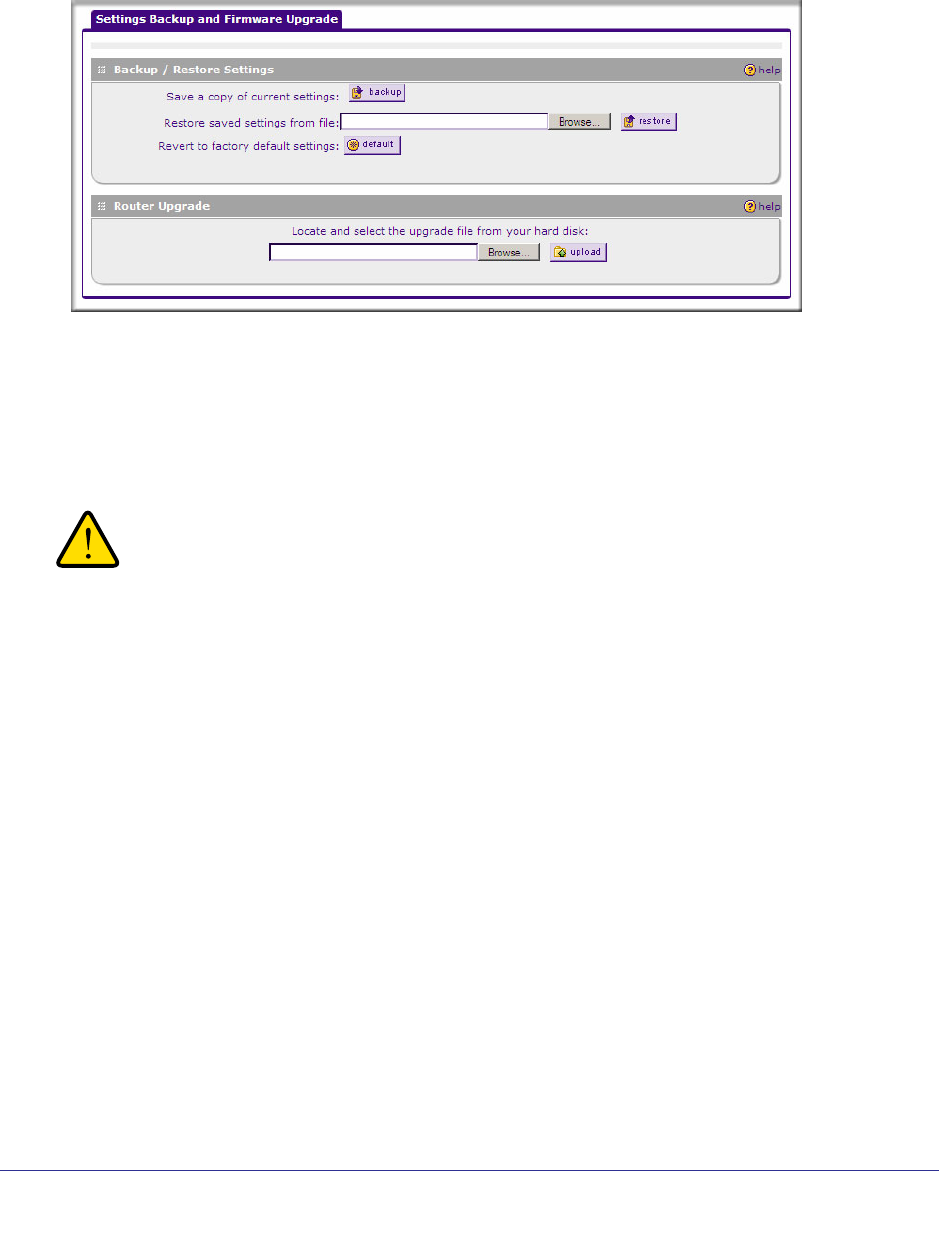

To back up settings:
1. Select Administration > Settings Backup and Firmware Upgrade from the menu. The
Settings Backup and Firmware Upgrade screen is displayed.
2. Click Backup to save a copy of your current settings.
• If your browser is not set up to save downloaded files automatically, locate where you
want to save the file, specify file name, and click Save.
• If you have your browser set up to save downloaded files automatically, the file will be
saved to your browser’s download location on the hard disk.
WARNING!
Once you start restoring settings or erasing the VPN firewall, do
NOT interrupt the process. Do not try to go online, turn off the VPN
firewall, shut down the computer or do anything else to the VPN
firewall until it finishes restarting!
To restore settings from a backup file:
1. Next to Restore save settings from file, click Browse.
2. Locate and select the previously saved backup file (by default, netgear.cfg).
3. When you have located the file, click restore.
An Alert page will appear indicating the status of the restore operation. You must
manually restart the VPN firewall for the restored settings to take effect.
