Chapter 9: Monitoring System Performance | 149
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Enabling the Traffic Meter
If your ISP charges by traffic volume over a given period of time, or if you want to study traffic
types over a period of time, you can activate the Traffic Meter for one or both WAN ports.
To monitor traffic limits on each of the WAN ports:
1. Select Monitoring > Traffic Meter from the menu, and then the WAN1 Traffic Meter tab.

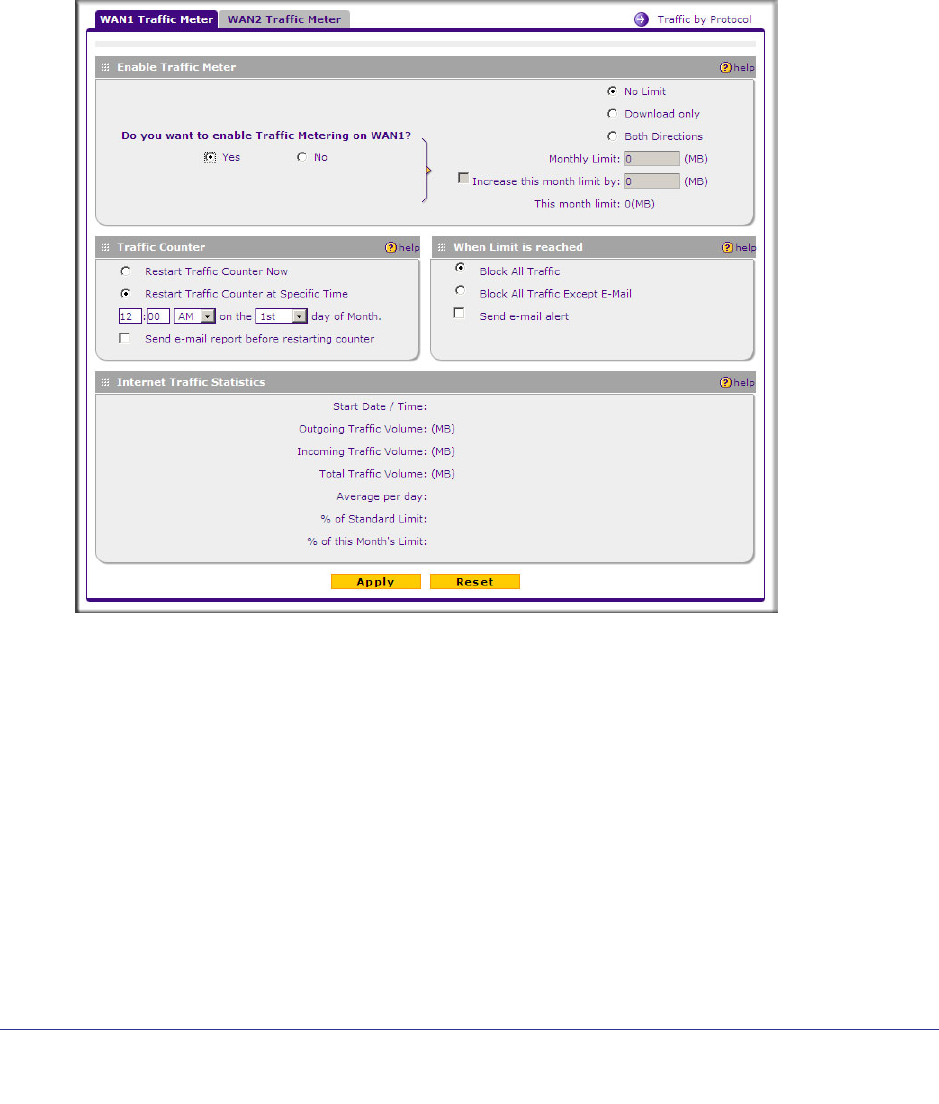

The WAN1 Traffic Meter screen is displayed:
2. Enable the traffic meter by clicking the Yes radio button under Do you want to enable
Traffic Metering on WAN1? The traffic meter will record the volume of Internet traffic
passing through the WAN1. Select the following options:
• No Limit. Any specified restrictions will not be applied when traffic limit is reached.
• Download only. The specified restrictions will be applied to the incoming traffic only
• Both Directions. The specified restrictions will be applied to both incoming and
outgoing traffic only
• Monthly Limit. Enter the monthly volume limit and select the desired behavior when
the limit is reached.
