Chapter 9: Monitoring System Performance | 153
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

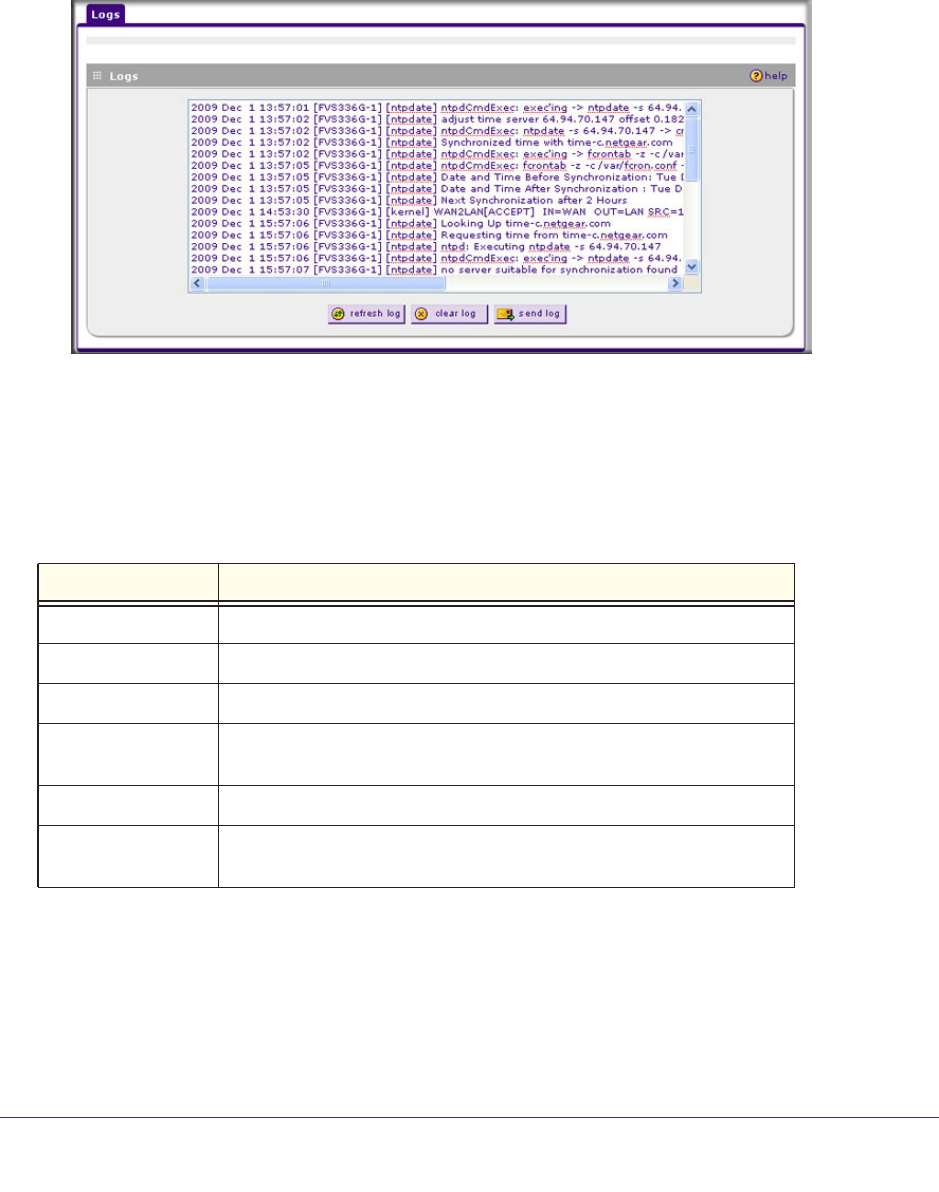

Viewing the Logs
To view the logs, select Monitoring > Firewall Logs & E-mail from the menu, and then click
the View Log link in the upper right-hand section of the screen. The Logs screen is
displayed.
If the E-mail Logs option has been enabled on the Firewall Logs & E-mail screen, you can
send a copy of the log by clicking Send Log.
Click Refresh Log to retrieve the latest update; click Clear Log to delete all entries.
Log entries are described in the following table.
Table 9-2. Firewall Logs Field Descriptions
Field Description
Date and Time The date and time the log entry was recorded.
Description or Action The type of event and what action was taken if any.
Source IP The IP address of the initiating device for this log entry.
Source port and
interface
The service port number of the initiating device, and whether it
originated from the LAN or WAN.
Destination The name or IP address of the destination device or website.
Destination port and
interface
The service port number of the destination device, and whether it’s on
the LAN or WAN.
