154 | Chapter 9: Monitoring System Performance
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Viewing VPN Firewall Configuration and System
Status

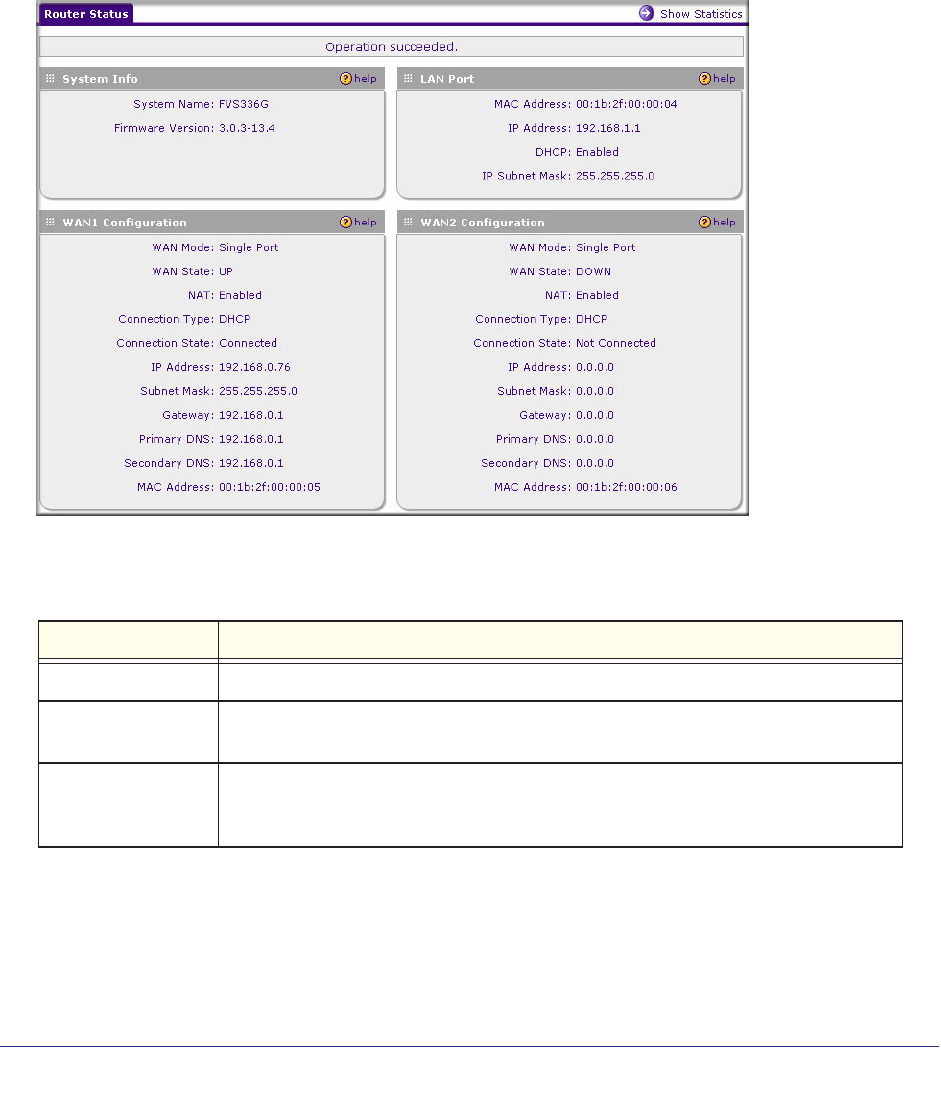

The Router Status screen provides status and usage information. To view the network
storage configuration and system status:
Select Monitoring > Router Status from the menu.
The following information is displayed.
Table 9-3. Router Status Information
Item Description
System Name This is the Account Name that you entered on the WAN ISP Settings screen.
Firmware Version This is the current software the network storage is using. This will change if you
upgrade your network storage.
LAN Port Displays the current settings for MAC address, IP address, DHCP status and IP
Subnet Mask that you set in the LAN IP Setup screen. DHCP can be either Enabled
or Disabled.
