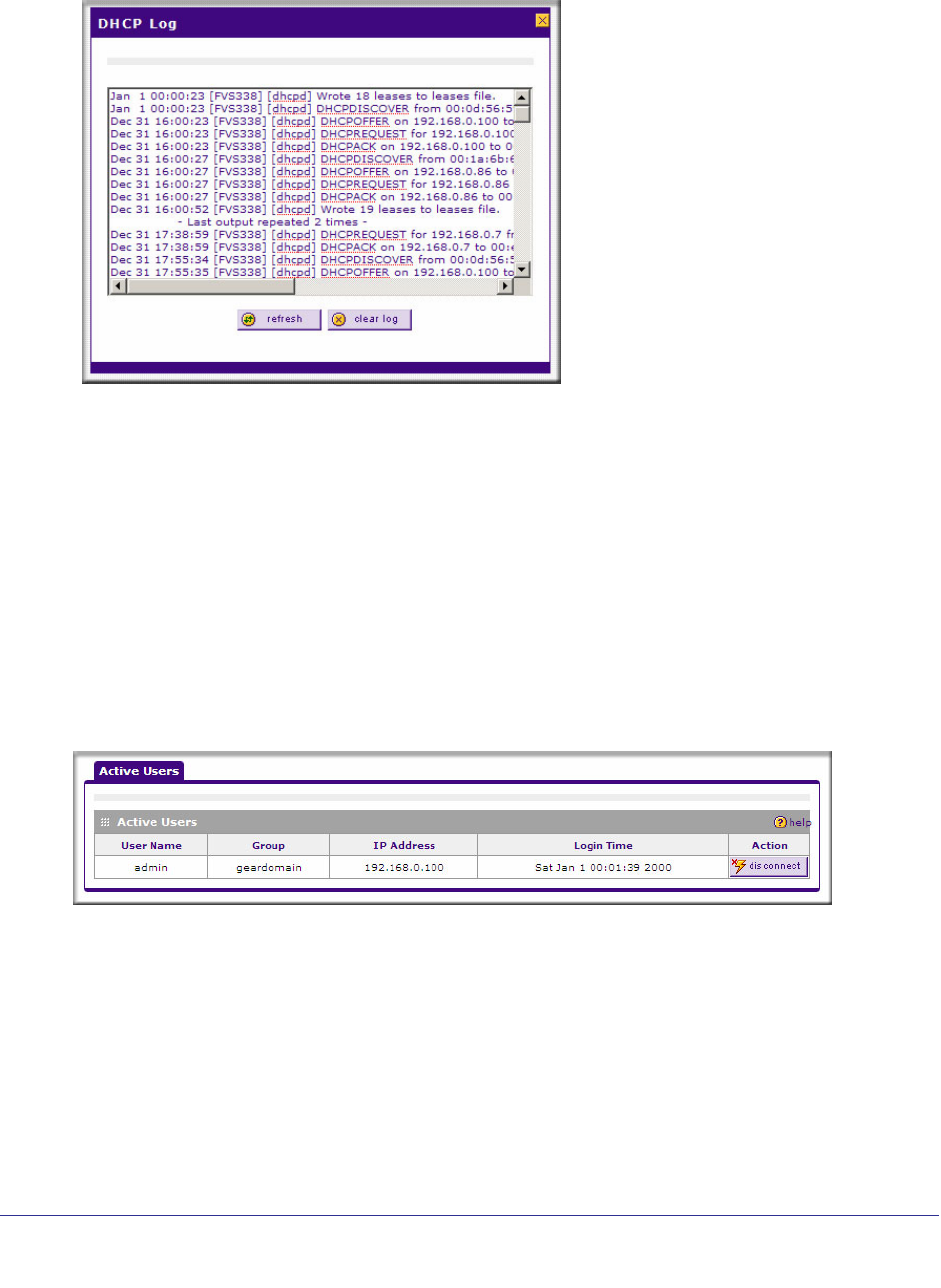

2. Click the DHCP Log link to the right of the tabs. The DHCP Log appears in a popup
window.
3. To view the most recent entries, click refresh. To delete all the existing log entries, click
clear log.
Monitoring Active Users
The Active Users screen displays a list of administrators and SSL VPN users currently
logged into the device.
To display the list of active users:
1. Select Monitoring > Active Users from the menu.
The active user’s username, group, and IP address are listed in the Active Users table
with a timestamp indicating the time and date that the user logged in.
2. You can disconnect an active user by clicking Disconnect to the right of the user’s list
entry.
