Chapter 9: Monitoring System Performance | 159
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

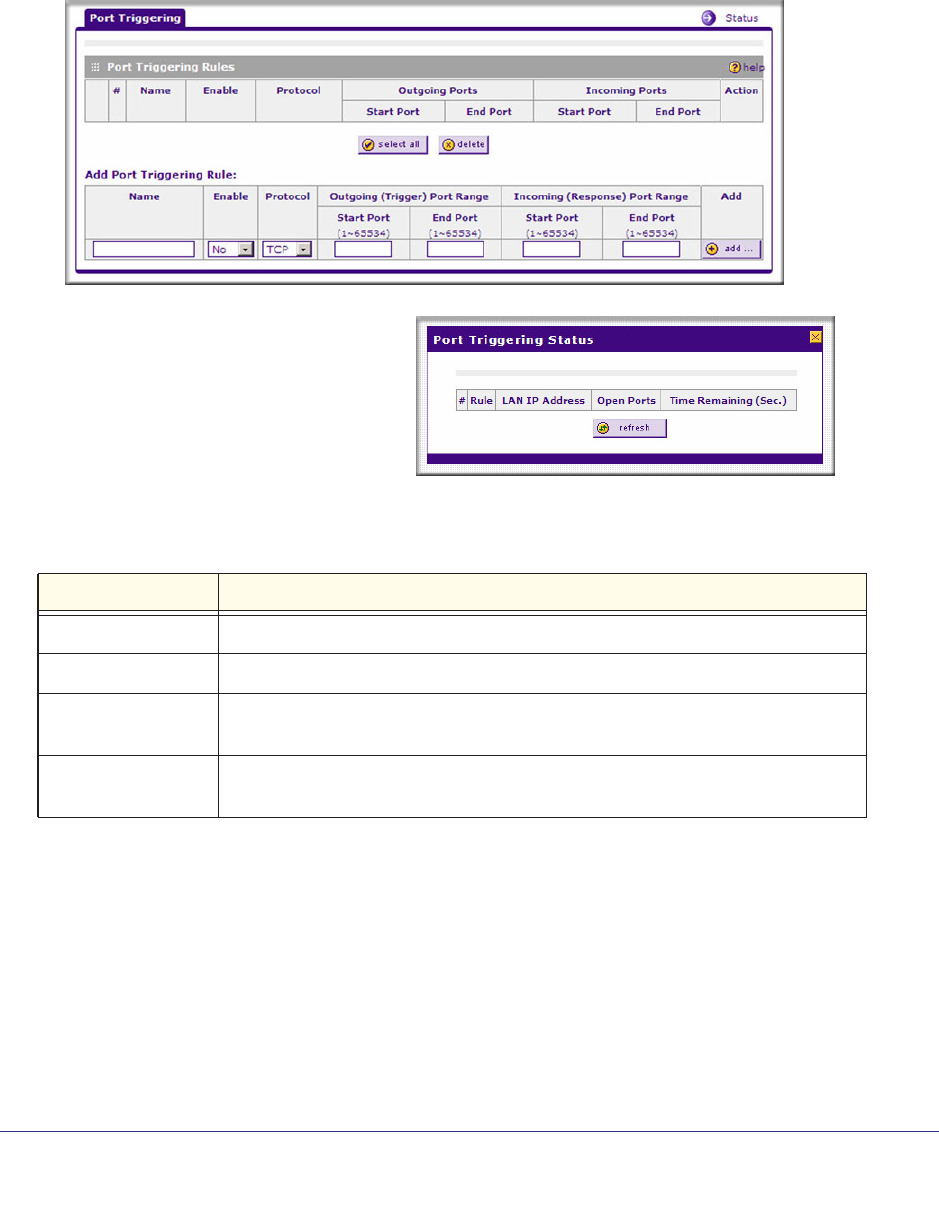

Viewing Port Triggering Status
To view the status of port triggering:
1. Select Security > Port Triggering from the menu.
2. When the Port Triggering screen
is displayed, click the Status link
to the right of the tab to display
the Port Triggering Status
screen.
The status window displays the
information that is shown in the
following table.
Table 9-5. Port Triggering Status Information
Item Description
Rule The name of the port triggering rule associated with this entry.
LAN IP Address The IP address of the PC currently using this rule.
Open Ports The Incoming ports which are associated the this rule. Incoming traffic using one
of these ports will be sent to the IP address above.
Time Remaining The time remaining before this rule is released and made available for other
PCs. This timer is restarted whenever incoming or outgoing traffic is received.
