16 | Chapter 2: Connecting the VPN Firewall to the Internet
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

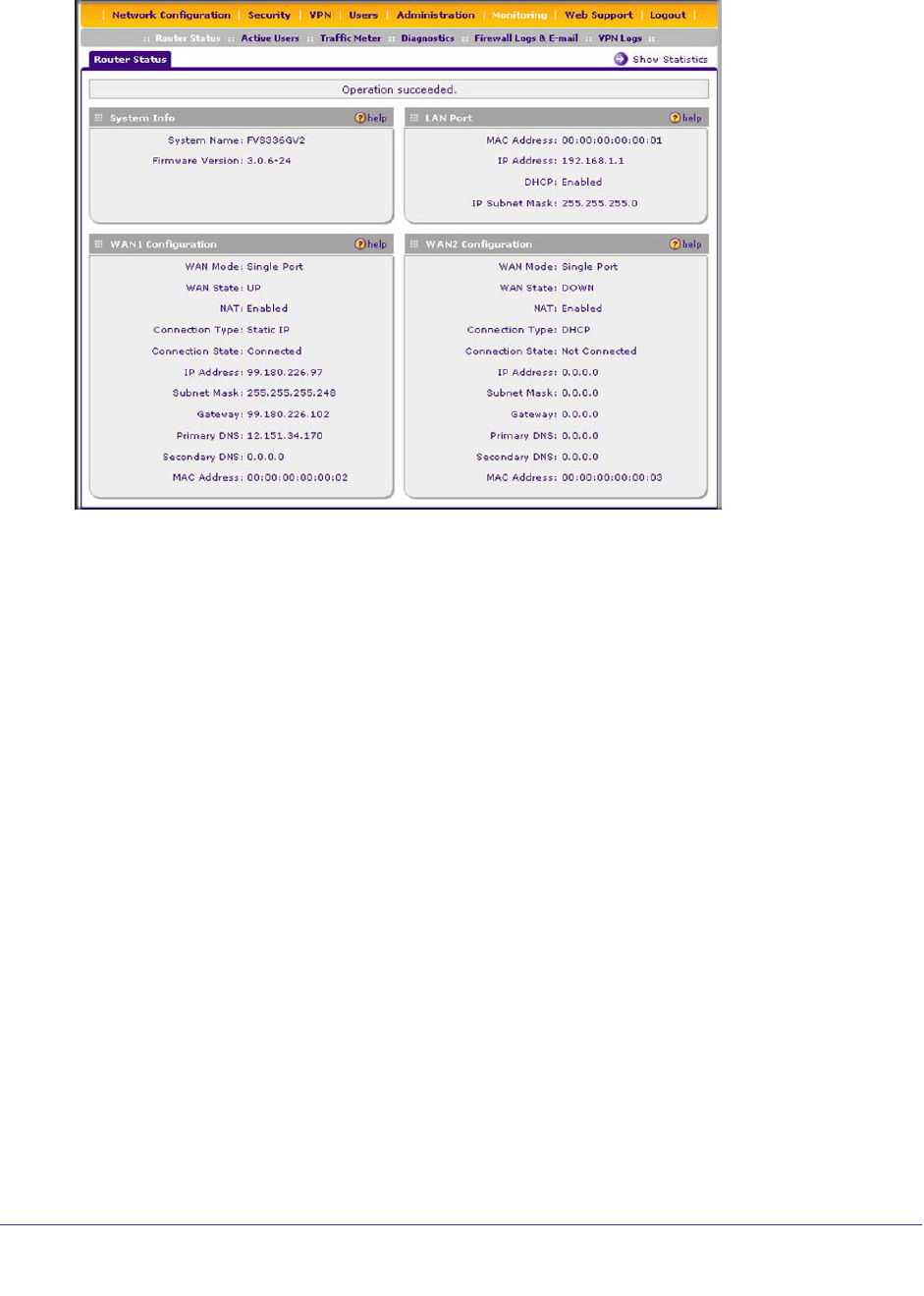

5. Click Login. The Web Configuration Manager screen appears, displaying Router Status:
Navigating the Menus
The Web Configuration Manager menus are organized in a layered structure of main
categories and submenus:
• Main menu. The horizontal orange bar near the top of the page is the main menu,
containing the primary configuration categories. Clicking on a primary category changes
the contents of the submenu bar.
• Submenu. The horizontal grey bar immediately below the main menu is the submenu,
containing subcategories of the currently selected primary category.
• Tab. Immediately below the submenu bar, at the top of the menu active window, are one
or more tabs, further subdividing the currently selected subcategory if necessary.
• Option arrow. To the right of the tabs on some menus are one or more blue dots with an
arrow in the center. Clicking an option arrow brings up either a popup window or an
advanced option menu.
You can now proceed to the first configuration task, configuring the VPN firewall’s Internet
connections.
