Chapter 9: Monitoring System Performance | 161
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Viewing the VPN Logs
The VPN Logs screen gives log details for recent VPN activity.

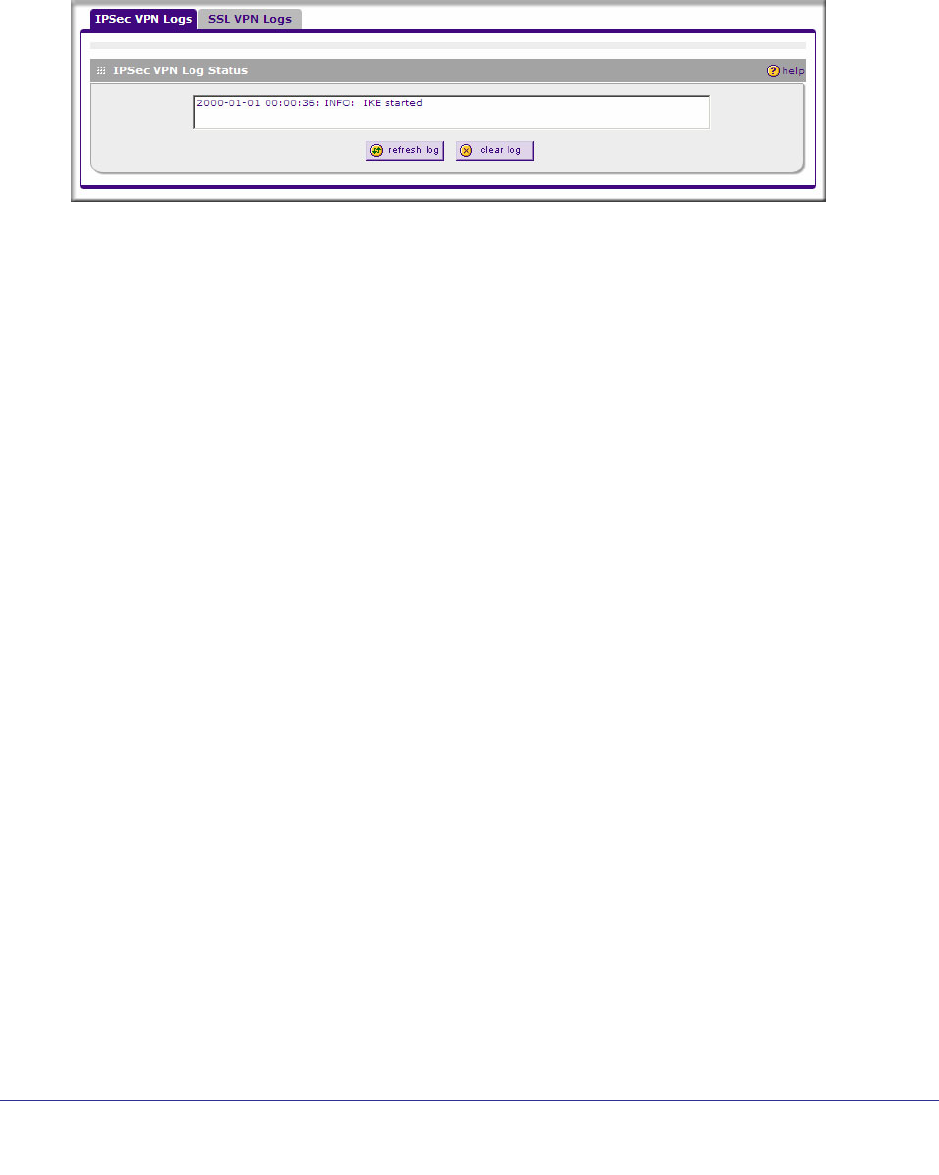

1. Select Monitoring > VPN Logs from the menu, and select the IPsec VPN Logs tab. The
IPsec VPN Logs screen is displayed.
2. Select the SSL VPN Logs tab to view SSL VPN log details.
To view the most recent entries, click refresh log. To delete all the existing log entries, click
clear log.
