Chapter 2: Connecting the VPN Firewall to the Internet | 17
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Configuring the Internet Connections
To set up your VPN firewall for secure Internet connections, you configure WAN port 1 and
WAN port 2. The Web Configuration Manager offers two connection configuration options:
• Automatic detection and configuration of the network connection.
• Manual configuration of the network connection.
Each option is detailed in the sections following.
Automatically Detecting and Connecting
To automatically configure the WAN ports for connection to the Internet:

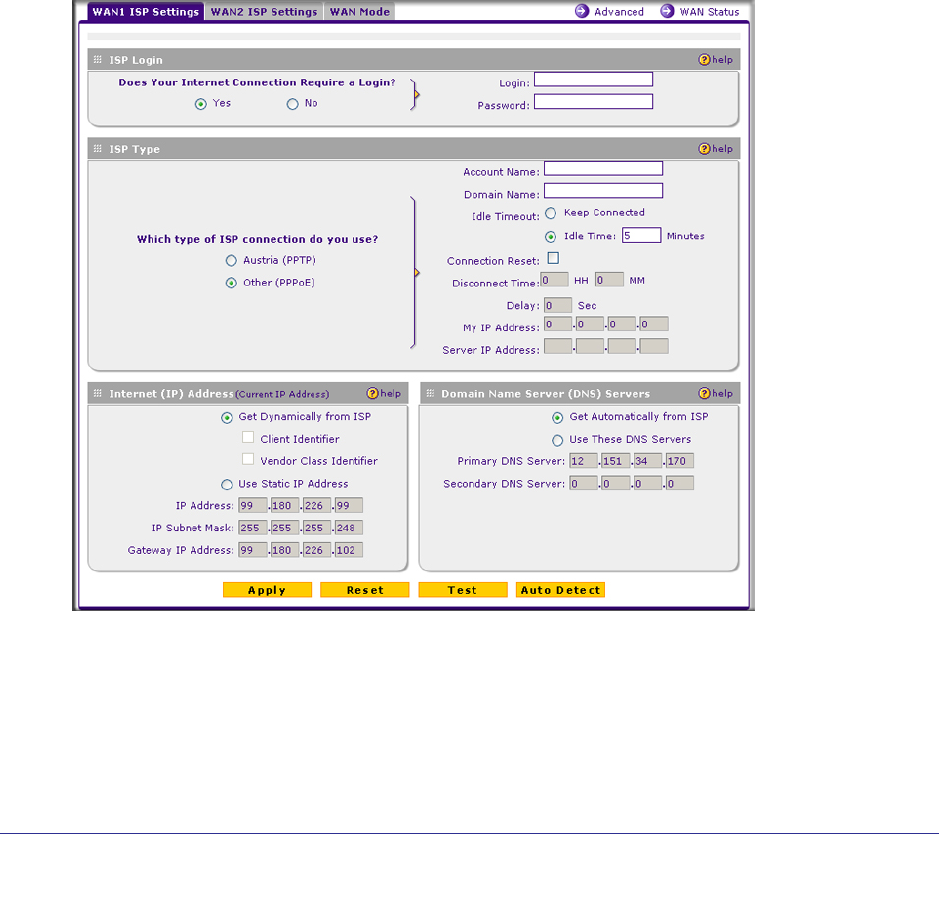

1. Select Network Configuration > WAN Settings from the menu. The WAN Settings tabs
appear, with the WAN1 ISP Settings screen in view.
2. Click Auto Detect at the bottom of the page. Auto Detect will probe the WAN port for a
range of connection methods and suggest one that your ISP appears to support.
