18 | Chapter 2: Connecting the VPN Firewall to the Internet
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Note: If you click Auto Detect while the WAN port already has a
connection, you might lose the connection because the VPN firewall
will enter its detection mode.

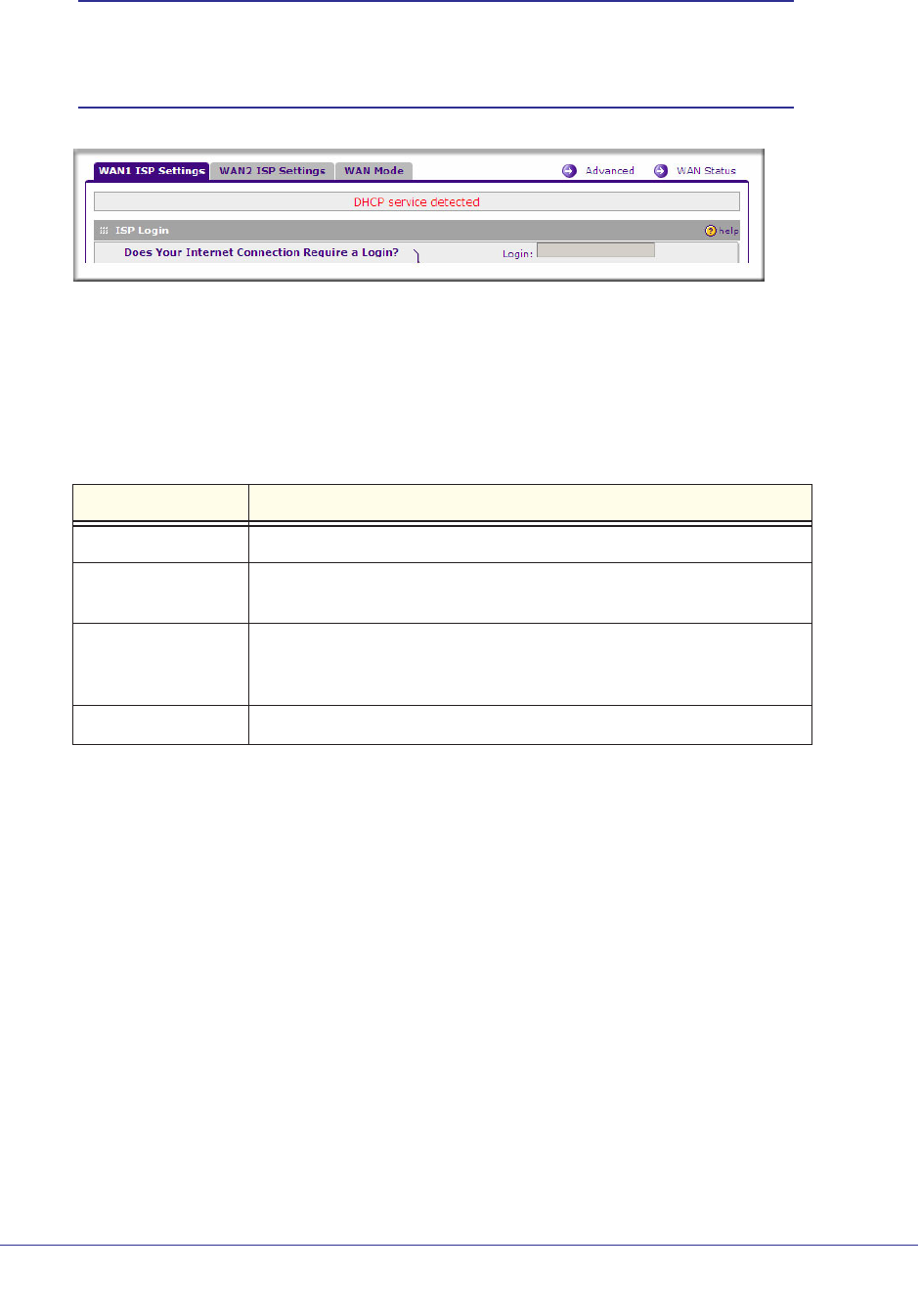

a. If Auto Detect is successful, a status bar at the top of the screen will display the
results.
b. If Auto Detect senses a connection method that requires input from you, it will
prompt you for the information. All methods with their required settings are detailed
in the following table.
c. If Auto Detect does not find a connection, you will be prompted to (1) check the
physical connection between your VPN firewall and the cable or DSL line, or to (2)
check your VPN firewall’s MAC address (For more information, see “Configuring the
WAN Mode (Required for Dual WAN)” on page 22 and “Troubleshooting the ISP
Connection” on page 165.
3. To verify the connection, click the WAN
Status option arrow at the top right of the
screen. A popup window appears, displaying
the connection status of WAN port 1.
Table 2-2.
Connection Method Data Required
DHCP (Dynamic IP) No data is required.
PPPoE Login (Username, Password);
Account Name, Domain Name (sometimes required).
PPTP Login (Username, Password),
Local IP address, and PPTP Server IP address;
Account Name (sometimes required).
Fixed (Static) IP Static IP address, Subnet, and Gateway IP; DNS Server IP addresses.
