192 | Appendix C: Two Factor Authentication
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

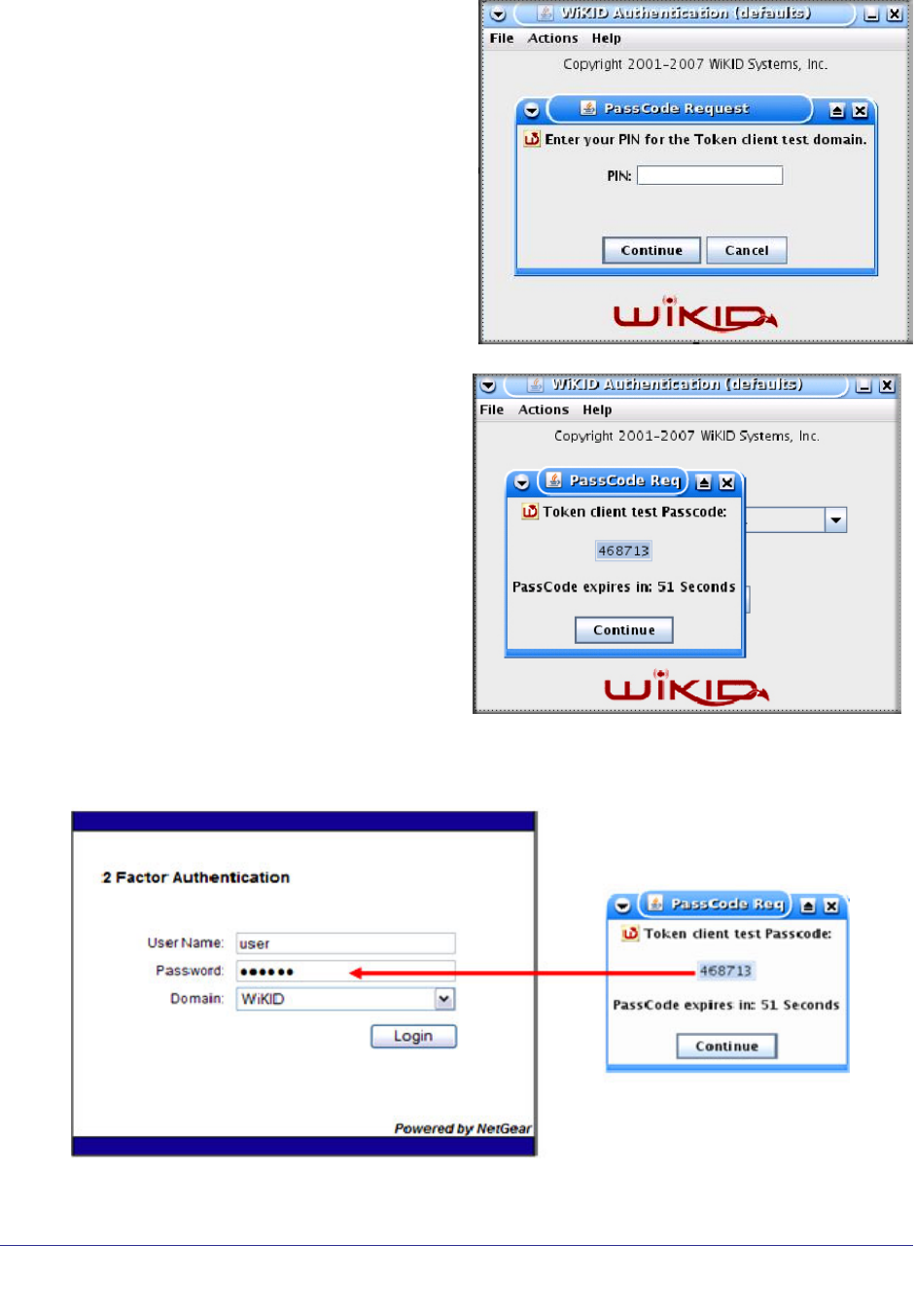

1. The user launches the WiKID token
software, enter the PIN that has been
given to them (something they know)
and then press “continue” to receive the
OTP from the WiKID authentication
server:
2. A one-time passcode (something they
have) is generated for this user.
Note: The one-time passcode is time
synchronized to the authentication
server so that the OTP can only be
used once and must be used before the
expiration time. If a user does not use
this passcode before it is expired, the
user must go through the request
process again to generate a new OTP.
3. The user then proceeds to the Two-Factor Authentication login screen and enters the
generated one-time passcode as the login password.
